2260F - MTD Pro Walk-Behind Mower Tank Assembly WT Parts Diagram

Pro Walk-Behind Mower

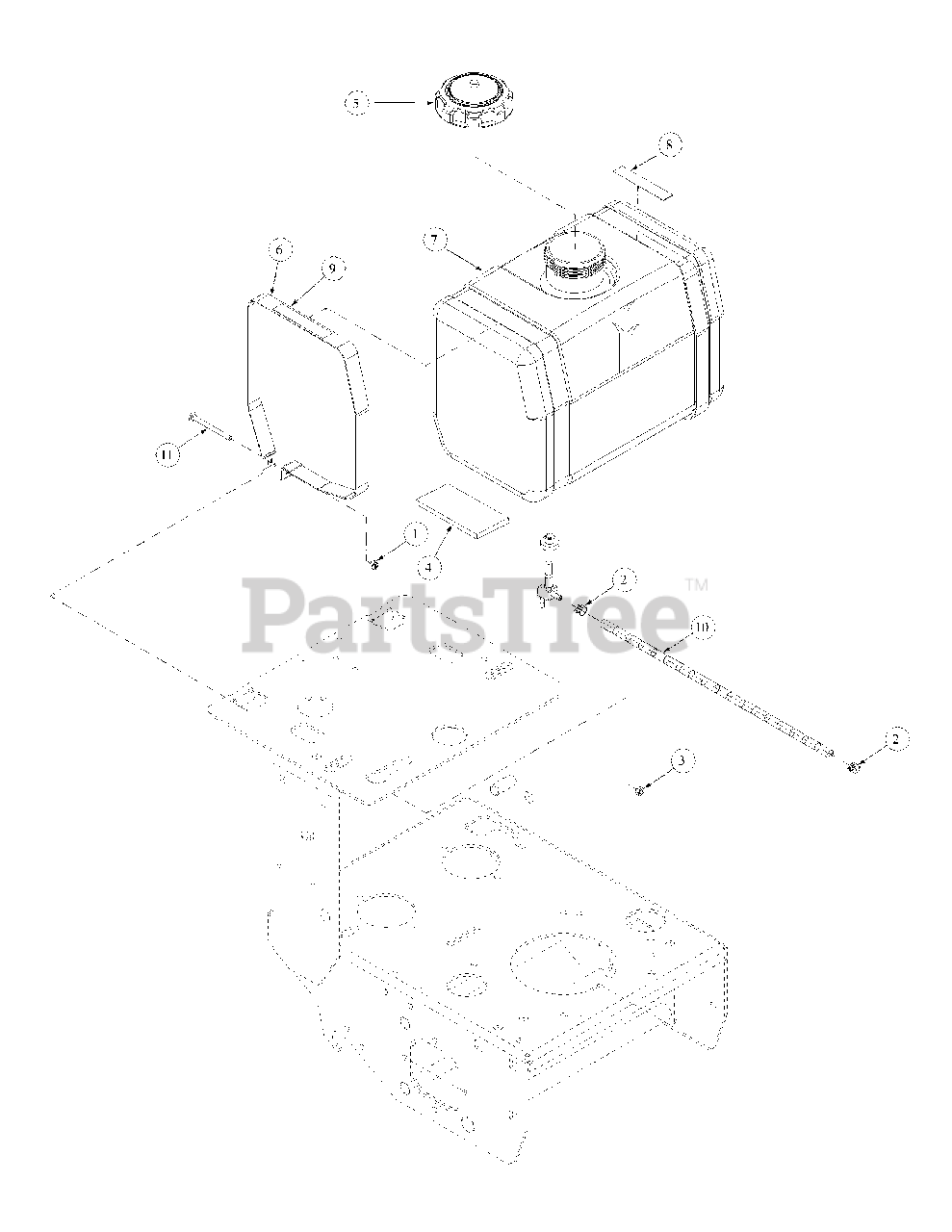

Tank Assembly WT Parts Diagram

  • Title

1

MTD 00012152

Lock Nut, Nylon Insert, 1/4-20 Grade A

$4.49

$

In Stock, only 1 left!

0

2

MTD 00012235

Uni-Clamp, #5077-136
(Superseded to 726-04123A)

$3.99

$

In Stock, Qty 6

0

3

MTD 00013291

Nut, 1/4-20, Grade A

$2.99

$

In Stock, only 3 left!

0

4

MTD 00021407

Stop Pad, Rubber

$6.49

$

Usually ships in 3-6 days

0

5

MTD 951-3124E

Fuel Cap, 3.5

$36.99

$

In Stock, only 3 left!

0

6

MTD 01000023

Fuel Tank Strap

Note: NLA

$

$

Currently unavailable

7

MTD 01000068

Fuel Tank

Note: NLA

$

$

Not available

8

MTD 01001036

Mower Warning Label, Turn Off Engine

$

$

Not available

9

MTD 01001038

Mower Instruction Label, Fuel Valve

$

$

Not available

10

MTD 01001209

18" Fuel Hose

Note: NLA

$

$

Currently unavailable

11

MTD 01002509

Carriage Bolt, 1/4-20 x 3.00 Grade 5

$3.99

$

Usually ships in 3-6 days

0

MTD 02002253

Grommet Fuel Tank

Note: (Not shown)

$4.99

$

In Stock, only 2 left!

0

MTD 00030784

Shut Off Fuel Tank

Note: (Not shown)

$

$

Not available
