22606 - Toro Log Splitter (SN: 310000001 - 310999999) (2010) ENGINE ASSEMBLY Parts Diagram

Log Splitter

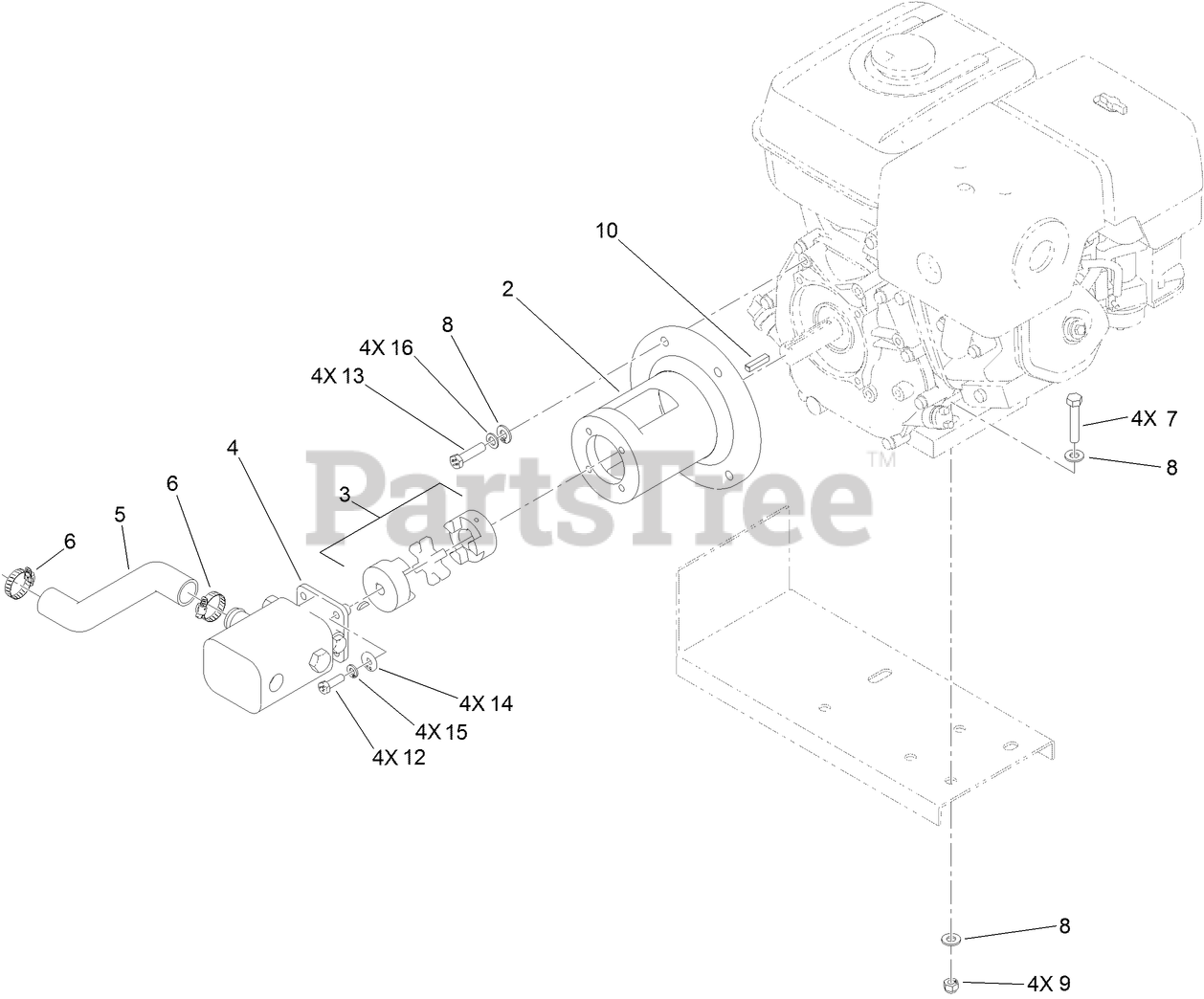

ENGINE ASSEMBLY Parts Diagram

  • Title

2

Toro PP000014

HOUSING-MOUNT, PUMP

$

$

Not available

3

Toro 120-1413

FLEX COUPLER ASM

$

$

Not available

4

Toro 120-1205

PUMP-HYD

$

$

Not available

5

Toro 120-1417

HOSE-SUCTION

$

$

Not available

6

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

7

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

8

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

10

Toro 13-2840

KEY-SQUARE

$1.99

$

In Stock, Qty 5

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 3211-41

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

14

Toro 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

15

Toro 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 7

0

16

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0
