22605x50C - Murray 22" Walk-Behind Mower (2000) Handle Assembly Parts Diagram

22" Walk-Behind Mower

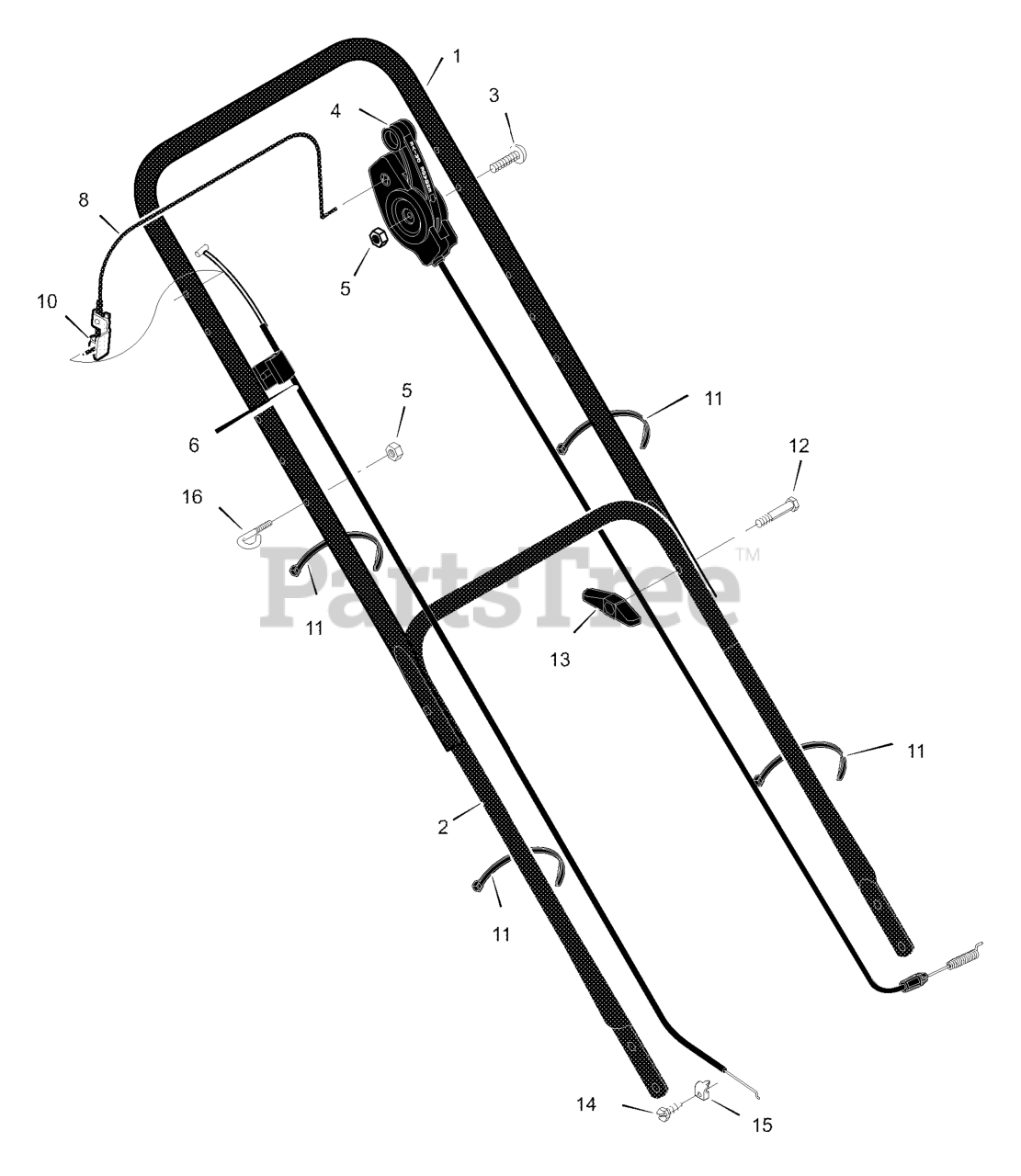

Handle Assembly Parts Diagram

  • Title

1

Murray 71581E724

Handle, Upper (Gray)

$

$

Currently unavailable

2

Murray 071137E701MA

Handle, Lower (Gray)

$139.99

$

Usually ships in 2-12 days

0

3

Murray 025X14MA

Screw

$3.99

$

Usually ships in 2-12 days

0

4

Murray 672873

Control, Drive

$

$

Currently unavailable

5

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

6

Murray 672839

Cable, Stop

$

$

Currently unavailable

8

Murray 672879E700

Lever, Stop

$

$

Currently unavailable

10

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

11

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

12

Murray 002X77MA

Bolt

$3.99

$

In Stock, only 2 left!

0

13

Murray 071294

Knob
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

14

UNKNOWN

$

$

Not available

15

UNKNOWN

$

$

Not available

16

Murray 071530MA

Guide, Rope

$5.99

$

Usually ships in 2-12 days

0
