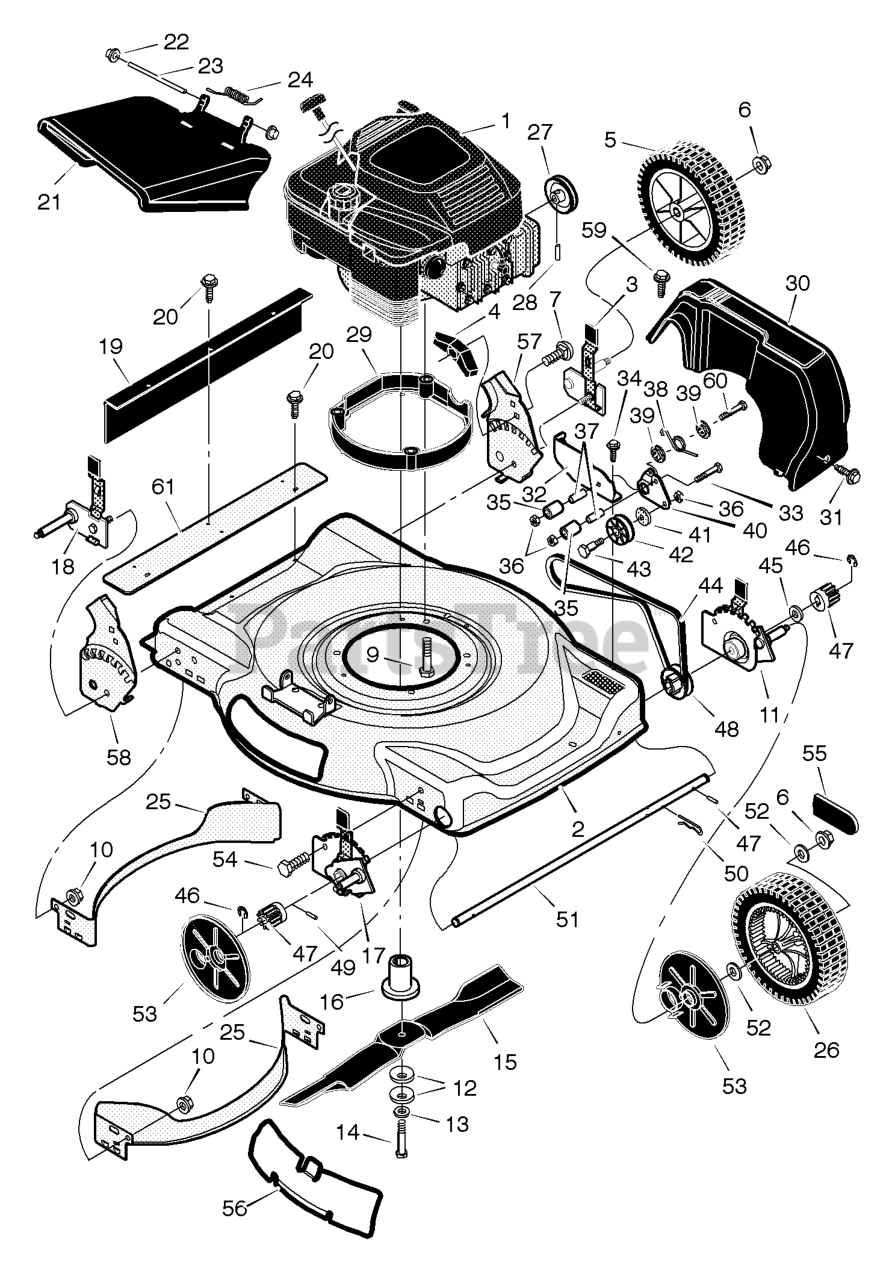

22605x50B - Murray 22" Walk-Behind Mower (1999) General Assembly Parts Diagram

22" Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Engine

$

$

Not available

2

Murray 776049

Housing

$

$

Currently unavailable

3

Murray 672641MA

Height Adjuster, Left Rear

$72.99

$

Usually ships in 2-12 days

0

4

Murray 71495

Knob

$

$

Not available

5

Murray 71132

Wheel and Tire, Rear

$36.99

$

In Stock, only 4 left!

0

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 025X11MA

Bolt, Engine

$6.99

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672643MA

Height Adjuster, Left Front

$88.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X153MA

Bolt, Hex

$4.49

$

Usually ships in 2-12 days

0

15

Murray 672735E701

Blade

$

$

Currently unavailable

16

Murray 672503MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672642MA

Height Adjuster, Right Front

$

$

Not available

18

Murray 672640MA

Height Adjuster, Right Rear

$70.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672721

Deflector, Chute

$17.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672744E700

Baffle

$

$

Currently unavailable

26

Murray 71133

Wheel and Tire, Drive

$50.99

$

In Stock, only 2 left!

0

27

Murray 71434

Pulley

$16.99

$

Usually ships in 2-12 days

0

28

Murray 032X64MA

Pin, Spring

$3.99

$

Usually ships in 2-12 days

0

29

Murray 672671 E700

Base, Engine

$

$

Currently unavailable

30

Murray 672722

Cover, Belt

$

$

Currently unavailable

31

Murray 26X259MA

Screw

$4.49

$

In Stock, only 4 left!

0

32

Murray 672751 Z

Bracket, Idler Support

$

$

Currently unavailable

33

Murray 001X81MA

Bolt

$3.49

$

In Stock, only 2 left!

0

34

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

35

Murray 71778

Idler, Backside

$

$

Not available

36

Murray 015X43MA

Locknut
(Superseded to 703164)

$3.49

$

In Stock, Qty 18

0

37

Murray 71793

Bearing

$4.99

$

In Stock, Qty 5

0

38

Murray 166X45MA

Spring

$

$

Not available

39

Murray 71789

Spacer

$3.99

$

Usually ships in 2-12 days

0

40

Murray 672753 Z

Arm, Pivot

$

$

Currently unavailable

41

Murray 71788

Spacer

$3.99

$

Usually ships in 2-12 days

0

42

Murray 71779

Pulley, Idler

$

$

Not available

43

Murray 009X50MA

Bolt, Shoulder

$3.49

$

Usually ships in 2-12 days

0

44

Murray 37X100MA

Belt

$20.99

$

In Stock, only 4 left!

0

45

Murray 17X186MA

Washer

$

$

Not available

46

Murray 011X16MA

Ring, Retainer

$3.99

$

Usually ships in 2-12 days

0

47

Murray 71792

Gear, Pinion

$18.99

$

In Stock, only 1 left!

0

48

Murray 71791

Pulley

$

$

Not available

49

Murray 43629

Pin, Drive

$5.99

$

In Stock, only 3 left!

0

50

Murray 0031X9MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

51

Murray 672508MA

Axle

$34.99

$

Usually ships in 2-12 days

0

52

Murray 17X169MA

Washer
(Superseded to 703966)

$4.49

$

In Stock, only 2 left!

0

53

Murray 71780

Cover, Dust

$5.99

$

Usually ships in 2-12 days

0

54

Murray 001X85MA

Bolt

$3.99

$

Usually ships in 2-12 days

0

55

Murray 672122MA

Hub Cap

$4.49

$

Usually ships in 2-12 days

0

56

Murray 672422 Z

Plate, Mulcher

$

$

Currently unavailable

57

Murray 672335E700

Bracket, Left Handle

$

$

Not available

58

Murray 672334E700

Bracket, Right Handle

$

$

Not available

59

Murray 26X289MA

Screw

$3.99

$

Usually ships in 2-12 days

0

60

Murray 01X120MA

Bolt

$

$

Not available

61

Murray 672711E700

Extension, Rear

$

$

Currently unavailable

--

Murray F-99418

Book, Instruction

$

$

Currently unavailable
