22604 - Toro Brush Chipper (SN: 310000001 - 310999999) (2010) CHIPPER ASSEMBLY Parts Diagram

Brush Chipper

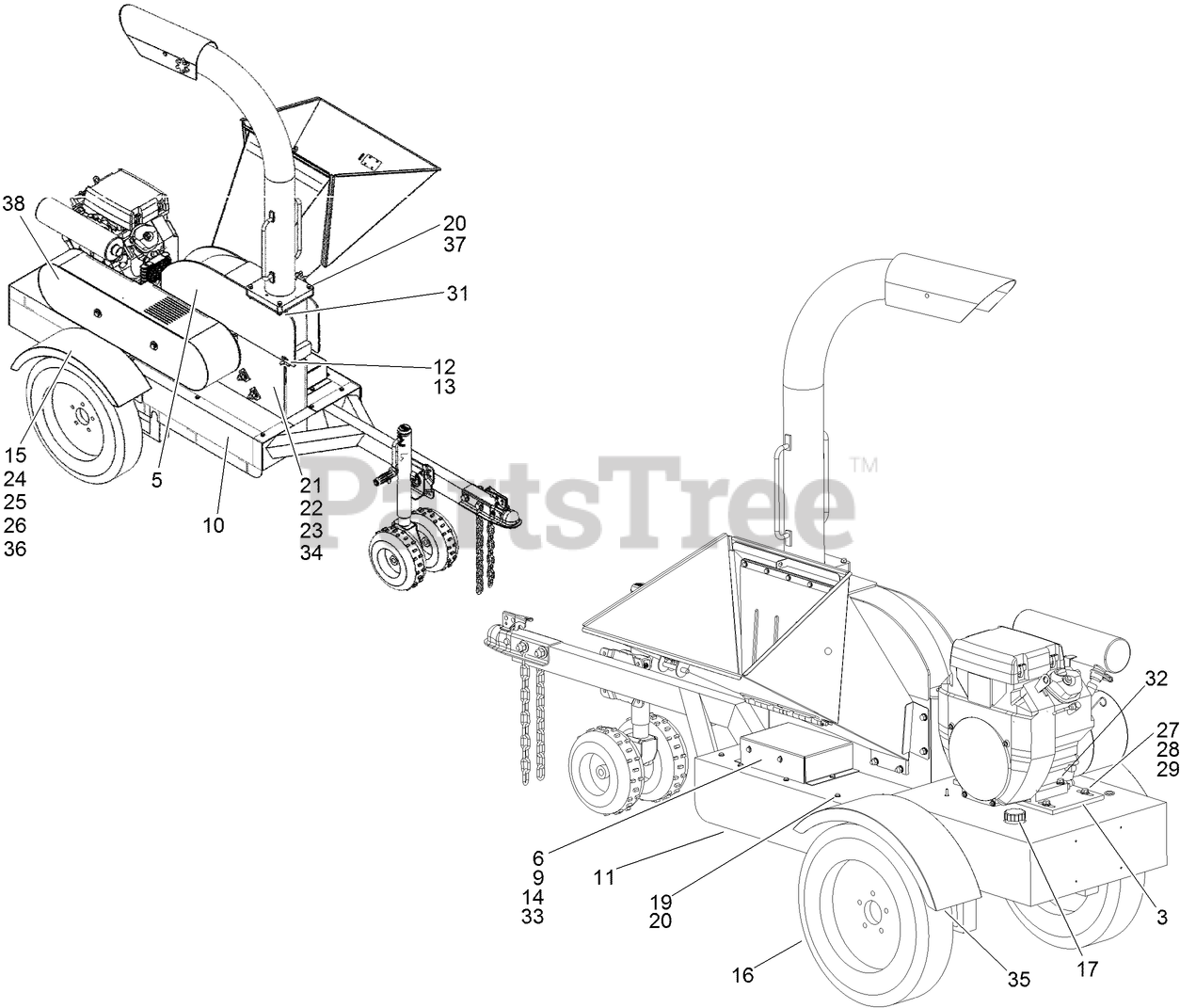

CHIPPER ASSEMBLY Parts Diagram

  • Title
3

Toro 120-1526-01

PLATE-ENGINE

$

$

Currently unavailable

5

Toro W000054

CHASSIS COVER ASM

$

$

Currently unavailable

6

Toro W000058

BATTERY COMPARTMENT ASM

$

$

Currently unavailable

9

Toro 120-1542

BATTERY
(Superseded to 104-8162)

$

$

Not available

10

Toro FS000266

BRACKET-BODY, SMALL

$

$

Currently unavailable

11

Toro FS000265

BRACKET-BODY, LARGE

$

$

Currently unavailable

12

Toro FS000213

PIN-HINGE

$

$

Not available

13

Toro 3272-16

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

14

Toro FS000244

PLATE-COVER, BATTERY

$

$

Currently unavailable

15

Toro 110-9981

WASHER-PLAIN

$14.99

$

In Stock, only 2 left!

0

16

Toro 120-1206

WHEEL AND TIRE ASM

$147.99

$

Usually ships in 3-6 days

0

17

Toro 120-1734

CAP-GAS

$

$

Not available

19

Toro 32104-95

SCREW-HWH

$0.99

$

Usually ships in 3-6 days

0

20

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Toro 325-5

SCREW-HH

$1.49

$

In Stock, Qty 6

0

22

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

23

Toro 3253-7

WASHER-LOCK

$1.49

$

In Stock, Qty 20+

0

24

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

26

Toro 323-4

SCREW-HH

$3.99

$

In Stock, only 1 left!

0

27

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

28

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

29

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

31

Toro 3217-7

NUT-HEX

$0.99

$

In Stock, Qty 20+

0

32

Toro 324-7

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

33

Toro FS000274

BRACKET-BATTERY

$

$

Currently unavailable

34

Toro 120-1292

SWITCH-PLUNGER, NC (W/COVER)

$41.99

$

In Stock, only 1 left!

0

35

Toro W000046

LEFT FENDER ASM

$

$

Not available

36

Toro W000045

RIGHT FENDER ASM

$

$

Not available

37

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Toro 120-1546

BELT-V, CHIPPER

$139.99

$

Usually ships in 3-6 days

0
