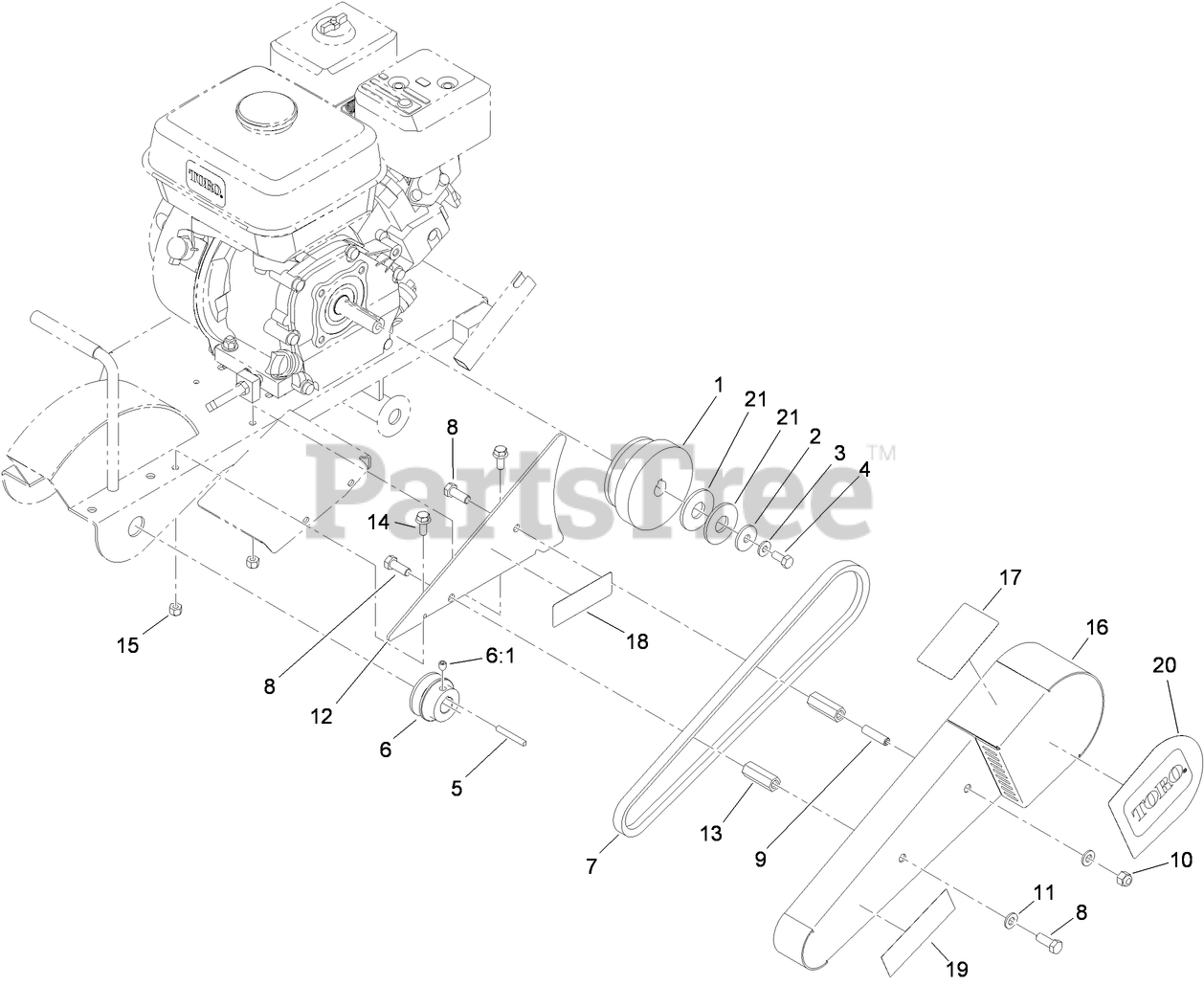

22601 - Toro Stump Grinder, 6.5hp (SN: 310000001 - 310999999) (2010) BELT DRIVE ASSEMBLY Parts Diagram

Stump Grinder, 6.5hp

BELT DRIVE ASSEMBLY Parts Diagram

  • Title

1

Toro 120-1215

CLUTCH-CENTRIFUGAL

$479.99

$

Usually ships in 3-6 days

0

2

Toro 63-8410

WASHER

$1.99

$

In Stock, Qty 13

0

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

4

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 120-1303

PULLEY-FRONT

$21.99

$

Usually ships in 3-6 days

0

6:1

Toro 3246-3

SCREW-HSH

$13.99

$

Usually ships in 3-6 days

0

7

Toro 120-1374

BELT-DRIVE
(Superseded to 136-4672)

$26.99

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Toro 3247-8

SCREW-SET, HSH

$14.99

$

Usually ships in 3-6 days

0

10

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

12

Toro 120-1326-01

PLATE-GUARD, INNER

$

$

Not available

13

Toro 120-1332

SPACER-GUARD, BELT

$20.99

$

Usually ships in 3-6 days

0

14

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 120-1344-01

OUTER BELT GUARD ASM
(Superseded to 121-4412)

$171.99

$

Usually ships in 3-6 days

0

17

Toro 119-4692

DECAL-CAUTION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 117-4979

DECAL-WARNING, SHIELDS

$13.99

$

Usually ships in 3-6 days

0

19

Toro 120-1815

DECAL

$9.49

$

Usually ships in 3-6 days

0

20

Toro 119-4723

DECAL

$11.99

$

Usually ships in 3-6 days

0

21

Toro 3256-8

WASHER-FLAT

$3.99

$

In Stock, Qty 15

0
