22600 HD (SGR-6) - Toro Stump Grinder (SN: 412900000 - 414799999) Belt Drive Assembly Parts Diagram

Stump Grinder

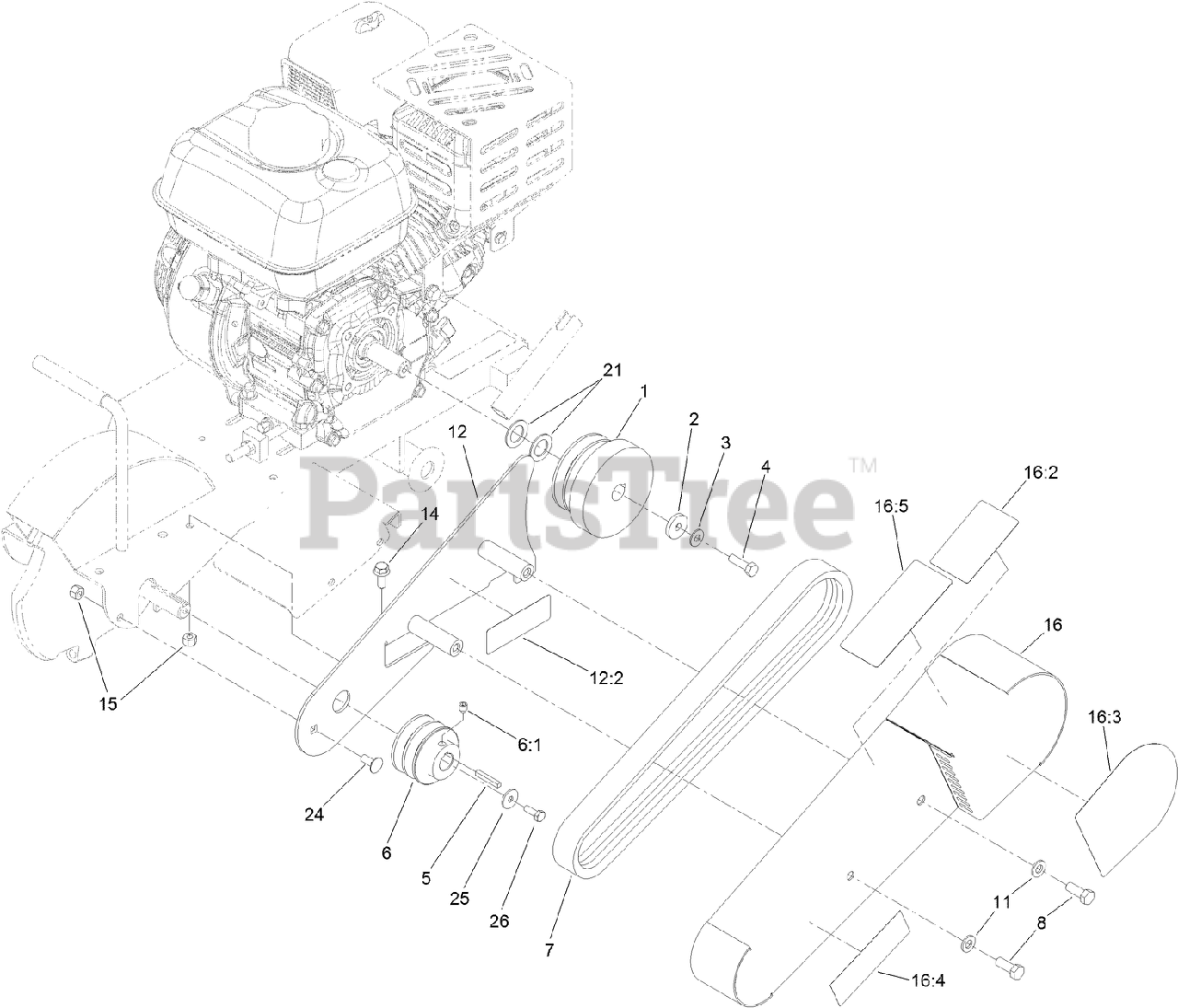

Belt Drive Assembly Parts Diagram

  • Title

1

Toro 137-7661

CLUTCH-CENTRIFUGAL

$582.99

$

Usually ships in 3-6 days

0

2

Toro 115-7292

WASHER-HARDENED

$3.99

$

Usually ships in 3-6 days

0

3

Toro 98-3499

WASHER-FLAT

$2.99

$

In Stock, only 1 left!

0

4

Toro 3210-6

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

5

Toro 92-2649

KEY-SQUARE

$4.49

$

Usually ships in 3-6 days

0

6

Toro 137-7662

PULLEY-FRONT

$95.99

$

Usually ships in 3-6 days

0

6:1

Toro 3246-3

SCREW-HSH

$14.99

$

Usually ships in 3-6 days

0

7

Toro 137-7683

BELT-V, BANDED

$69.99

$

Usually ships in 3-6 days

0

8

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 3256-38

WASHER-FLAT

$0.99

$

In Stock, only 2 left!

0

12

Toro 137-7689

PLATE-GUARD, INNER

$106.99

$

Usually ships in 3-6 days

0

12:2

Toro 117-4979

DECAL-WARNING

$15.99

$

Usually ships in 3-6 days

0

14

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 138-3128

BELT GUARD ASM

$218.99

$

Usually ships in 3-6 days

0

16:2

Toro 119-4692

DECAL-CAUTION

$5.49

$

Usually ships in 3-6 days

0

16:3

Toro 119-4723

DECAL

$12.99

$

Usually ships in 3-6 days

0

16:4

Toro 120-1815

DECAL

$9.99

$

Usually ships in 3-6 days

0

16:5

Toro 137-4870

DECAL-SERVICE

$9.99

$

Usually ships in 3-6 days

0

21

Toro 3-8664

WASHER-THRUST

$6.99

$

In Stock, only 2 left!

0

24

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

25

Toro 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

26

Toro 329-23

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0
