226 R - Husqvarna String Trimmer (2009-01) CARBURETOR DETAILS Parts Diagram

String Trimmer

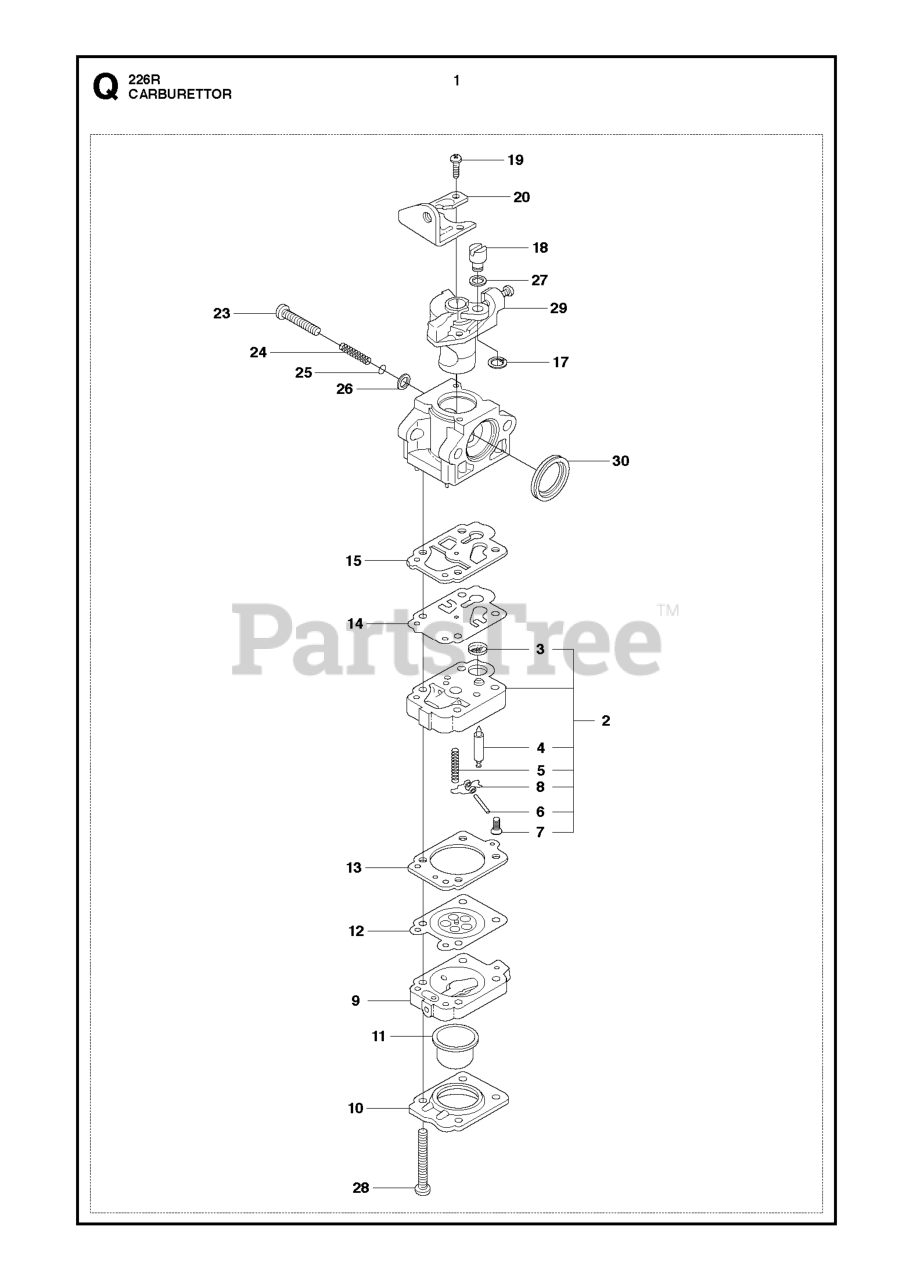

CARBURETOR DETAILS Parts Diagram

  • Title

27

Husqvarna 506746101

WASHER

$3.99

$

In Stock, only 1 left!

0

29

Husqvarna 521770101

VALVE-A

$42.99

$

Usually ships in 3-10 days

0

3

Husqvarna 520957001

SCREEN
(Superseded to 574012501)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 527918301

CARBURETOR-A

$62.99

$

Usually ships in 3-10 days

0

2

Husqvarna 513410801

BODY-A

$72.99

$

Usually ships in 3-10 days

0

19

Husqvarna 505307901

SCREW

$4.99

$

In Stock, only 2 left!

0

14

Husqvarna 506689801

DIAPHRAGM

$6.49

$

Usually ships in 3-10 days

0

25

Husqvarna 513437801

O-RING

$2.49

$

Usually ships in 3-10 days

0

30

Husqvarna 505308401

RING PACKING

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 512373401

NEEDLE

$

$

Not available

15

Husqvarna 506745101

GASKET

$10.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505306801

DIAPHRAGM

$18.99

$

Usually ships in 3-10 days

0

6

Husqvarna 505055801

$

$

Not available

26

Husqvarna 513437701

WASHER

$2.49

$

Usually ships in 3-10 days

0

28

Husqvarna 506741101

SCREW

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 506738601

RING

$2.49

$

Usually ships in 3-10 days

0

13

Husqvarna 506740801

GASKET

$10.99

$

In Stock, only 2 left!

0

20

Husqvarna 506746001

BRACKET

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 521085401

VALVE INLET

$27.99

$

Usually ships in 3-10 days

0

11

Husqvarna 505306701

PUMP

$9.49

$

Usually ships in 3-10 days

0

10

Husqvarna 506741001

1OVER

$6.49

$

In Stock, Qty 9

0

8

Husqvarna 520977201

LEVER

$7.49

$

Usually ships in 3-10 days

0

9

Husqvarna 506740901

BODY

$34.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506741201

SWIVEL

$9.99

$

Usually ships in 3-10 days

0

24

Husqvarna 513301501

SPRING
(Superseded to 513301601)

$2.49

$

Usually ships in 3-10 days

0

7

Husqvarna 505306101

SCREW

$3.99

$

Usually ships in 3-10 days

0

5

Husqvarna 513410701

SPRING

$2.49

$

Usually ships in 3-10 days

0
