226 HS 75 S - Husqvarna Hedge Trimmer (SN: 20080500001 - 20130500000) CYLINDER, PISTON & MUFFLER Parts Diagram

Hedge Trimmer

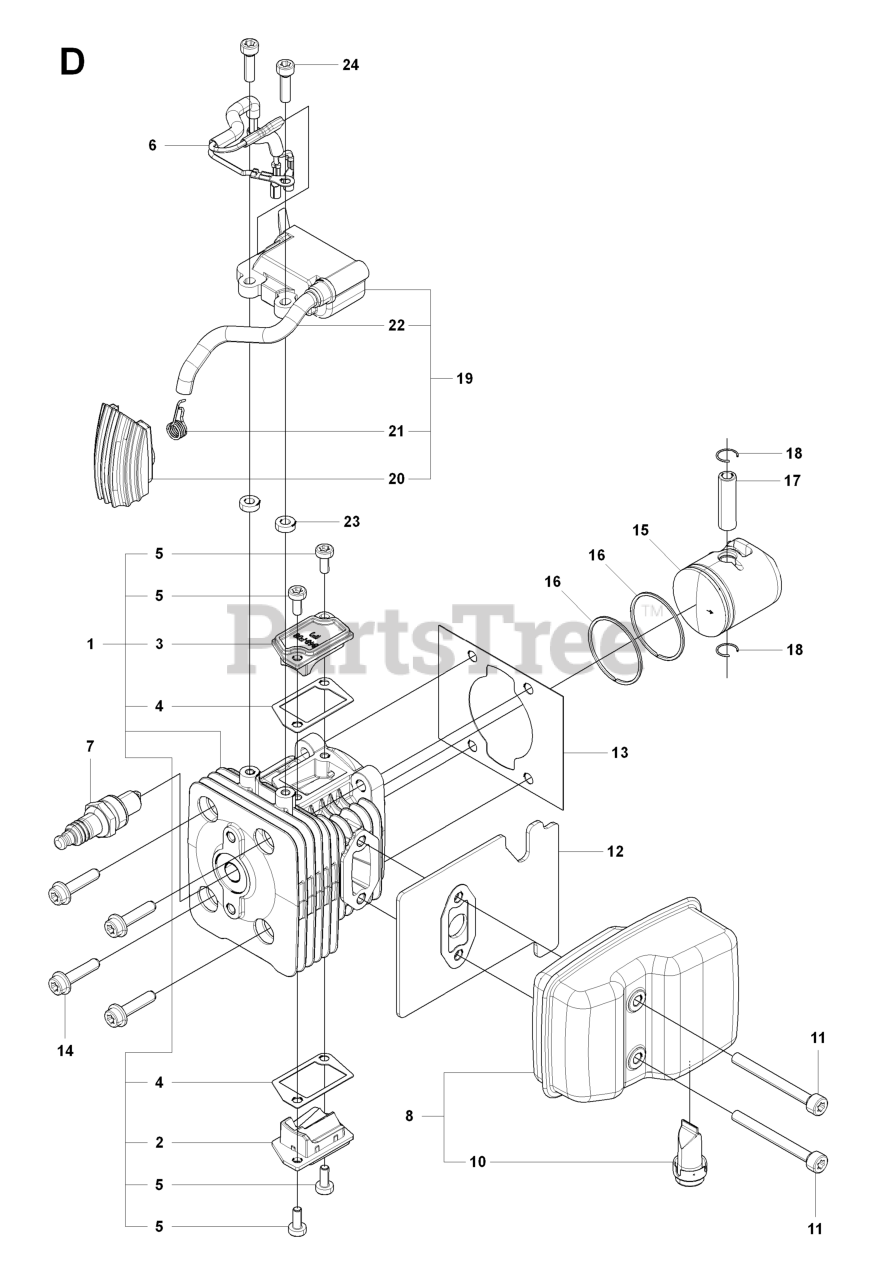

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

24

Husqvarna 506616601

BOLT TORX M4XL16 T27
(Superseded to 521346901)

$3.99

$

In Stock, Qty 18

0

19

Husqvarna 506656101

COIL ASSY
(Superseded to 589372401)

$68.99

$

In Stock, only 1 left!

0

15

Husqvarna 506655001

PISTON

$31.99

$

In Stock, only 1 left!

0

2

Husqvarna 506654101

COVER, TR-S

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506655601

GASKET

$17.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506629701

GASKET, BASE

$4.99

$

In Stock, Qty 5

0

5

Husqvarna 506616401

BOLT
(Superseded to 504119201)

$2.49

$

In Stock, Qty 8

0

20

Husqvarna 506615801

CAP
(Superseded to 521610001)

$9.99

$

In Stock, only 2 left!

0

8

Husqvarna 506656801

MUFFLER

$72.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506618201

TUBE

$3.49

$

In Stock, only 1 left!

0

21

Husqvarna 506655201

SPRING

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 506616301

BOLT TORX M5XL50 T27
(Superseded to 521345501)

$4.99

$

In Stock, Qty 10

0

10

Husqvarna 506615601

ARRESTER

$9.99

$

In Stock, only 1 left!

0

16

Husqvarna 506618101

RING

$11.99

$

In Stock, only 4 left!

0

3

Husqvarna 506654201

COVER, TR-F

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 506611201

SPACER
(Superseded to 516258101)

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 506653801

CYLINDER COMPLETE

$62.99

$

In Stock, only 1 left!

0

7

Husqvarna 506615101

SPARK PLUG NGK CMR7H
(Superseded to 521233401)

$4.46

$

Usually ships in 3-10 days

0

14

Husqvarna 506616001

BOLT TORX
(Superseded to 506745201)

$5.99

$

In Stock, only 3 left!

0

17

Husqvarna 506611501

PIN
(Superseded to 516385601)

$10.99

$

In Stock, only 1 left!

0

4

Husqvarna 506654301

GASKET, TR

$4.99

$

In Stock, Qty 8

0

6

Husqvarna 506652301

CORD COMP

$9.49

$

Usually ships in 3-10 days

0

18

Husqvarna 506611101

RING
(Superseded to 505045201)

$4.99

$

In Stock, Qty 11

0
