226 HD 75 S - Husqvarna Hedge Trimmer (2009-01) Gearhouse Parts Diagram

Hedge Trimmer

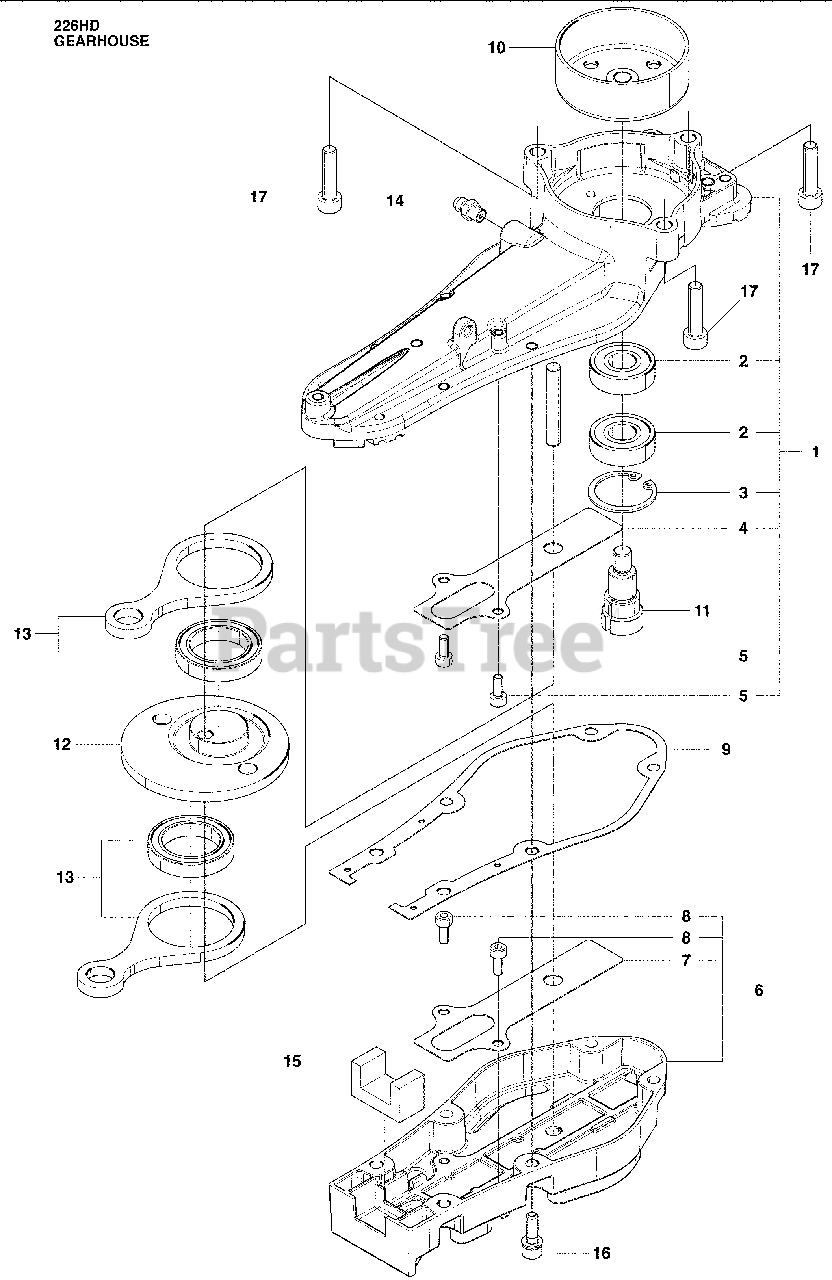

Gearhouse Parts Diagram

  • Title

1

Husqvarna 506619901

Gear Case, Complete
(Superseded to 586937101)

$121.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506610101

Bearing

$11.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506609901

Ring

$4.99

$

In Stock, only 3 left!

0

4

Husqvarna 506626901

Plate

$4.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506688801

Bolt

$3.49

$

Usually ships in 3-10 days

0

6

Husqvarna 506622801

GEARCASE COMP. BOTTOM
(Superseded to 586937201)

$51.99

$

Usually ships in 3-10 days

0

7

Husqvarna 506626901

Plate

$4.99

$

Usually ships in 3-10 days

0

8

Husqvarna 506688801

Bolt

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 506688301

Gasket

$5.99

$

In Stock, only 2 left!

0

10

Husqvarna 506619501

DRUM

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 506627201

GEAR DRIVE

$22.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506688701

GEAR DRIVE

$113.99

$

Usually ships in 3-10 days

0

13

Husqvarna 506688501

Rod Assembly

$62.99

$

In Stock, only 1 left!

0

14

Husqvarna 506614501

Fitting
(Superseded to 520901801)

$6.49

$

In Stock, only 3 left!

0

15

Husqvarna 506688901

Felt

$5.99

$

In Stock, Qty 10

0

16

Husqvarna 506617901

Bolt

$3.49

$

Usually ships in 3-10 days

0

17

Husqvarna 506609501

Bolt

$3.49

$

Usually ships in 3-10 days

0
