226 HD 60 S - Husqvarna Hedge Trimmer (Original) CYLINDER, PISTON & MUFFLER Parts Diagram

Hedge Trimmer

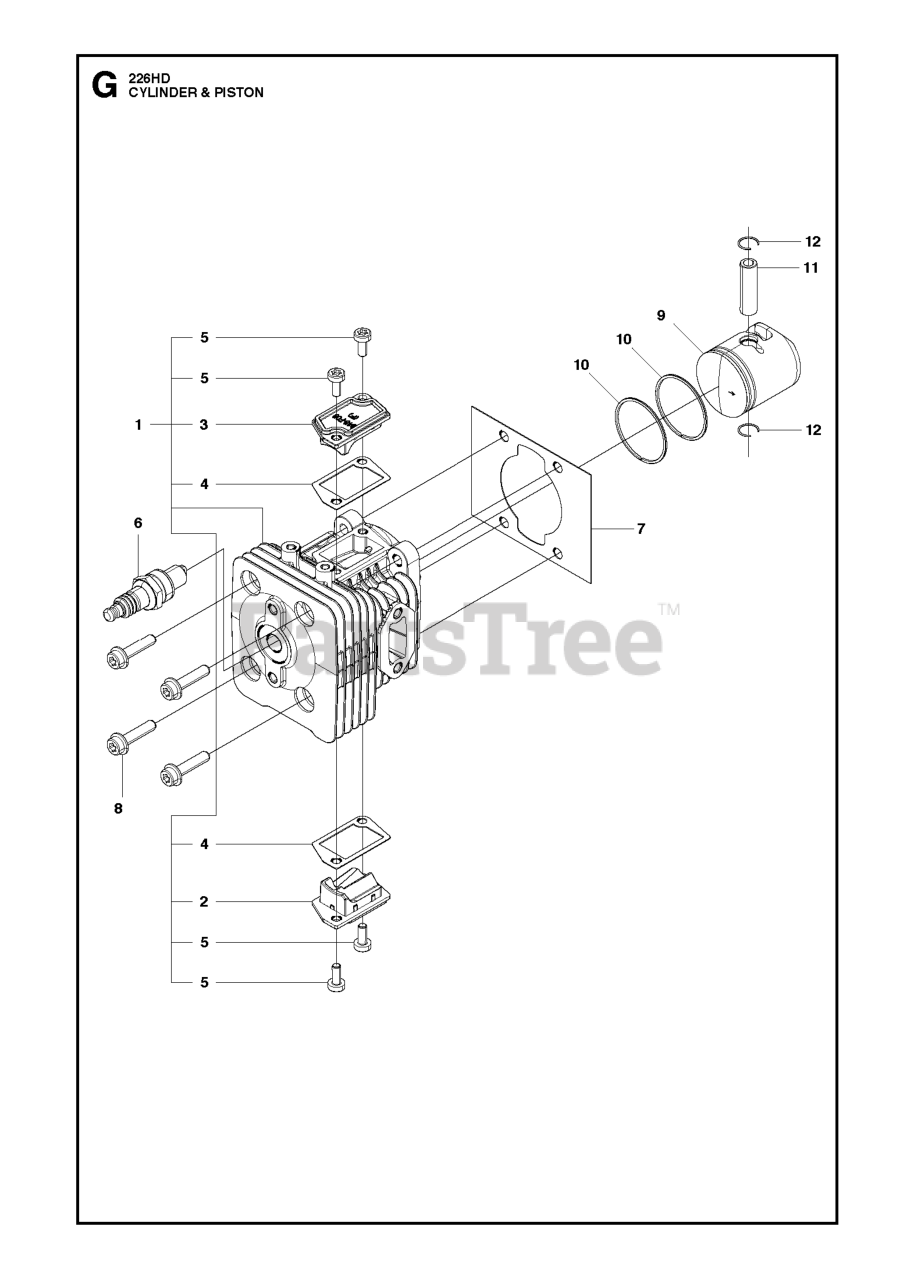

CYLINDER, PISTON & MUFFLER Parts Diagram

  • Title

1

Husqvarna 506653801

CYLINDER COMPLETE

Note: 20090100001-2014180000

$62.99

$

In Stock, only 1 left!

0

10

Husqvarna 506618101

RING

$11.99

$

In Stock, only 4 left!

0

9

Husqvarna 506655001

PISTON

Note: 20090100001-2014180000

$31.99

$

In Stock, only 1 left!

0

7

Husqvarna 506629701

GASKET, BASE

$4.99

$

In Stock, Qty 5

0

8

Husqvarna 506745201

BOLT

$5.99

$

In Stock, only 3 left!

0

5

Husqvarna 504119201

BOLT

$2.49

$

In Stock, Qty 8

0

2

Husqvarna 506654102

COVER TR(S)

$

$

Not available

11

Husqvarna 505040701

PIN

$10.99

$

In Stock, only 1 left!

0

6

Husqvarna 528074001

SPARK PLUG CMR7H-10

Note: NGK CMR 7H-10

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 528052101

CYLINDER COMP

Note: 20141800001-Current

$74.99

$

Usually ships in 3-10 days

0

3

Husqvarna 506654202

COVER TR(F)

$

$

Not available

9

Husqvarna 528052301

PISTON

Note: 20141800001-Current

$40.99

$

Usually ships in 3-10 days

0

12

Husqvarna 505045201

RING

$4.99

$

In Stock, Qty 11

0

4

Husqvarna 593135801

NEEDS DESCRIPTION

$

$

Currently unavailable
