226 HD 60 S - Husqvarna Hedge Trimmer (2009-01) Intake Parts Diagram

Hedge Trimmer

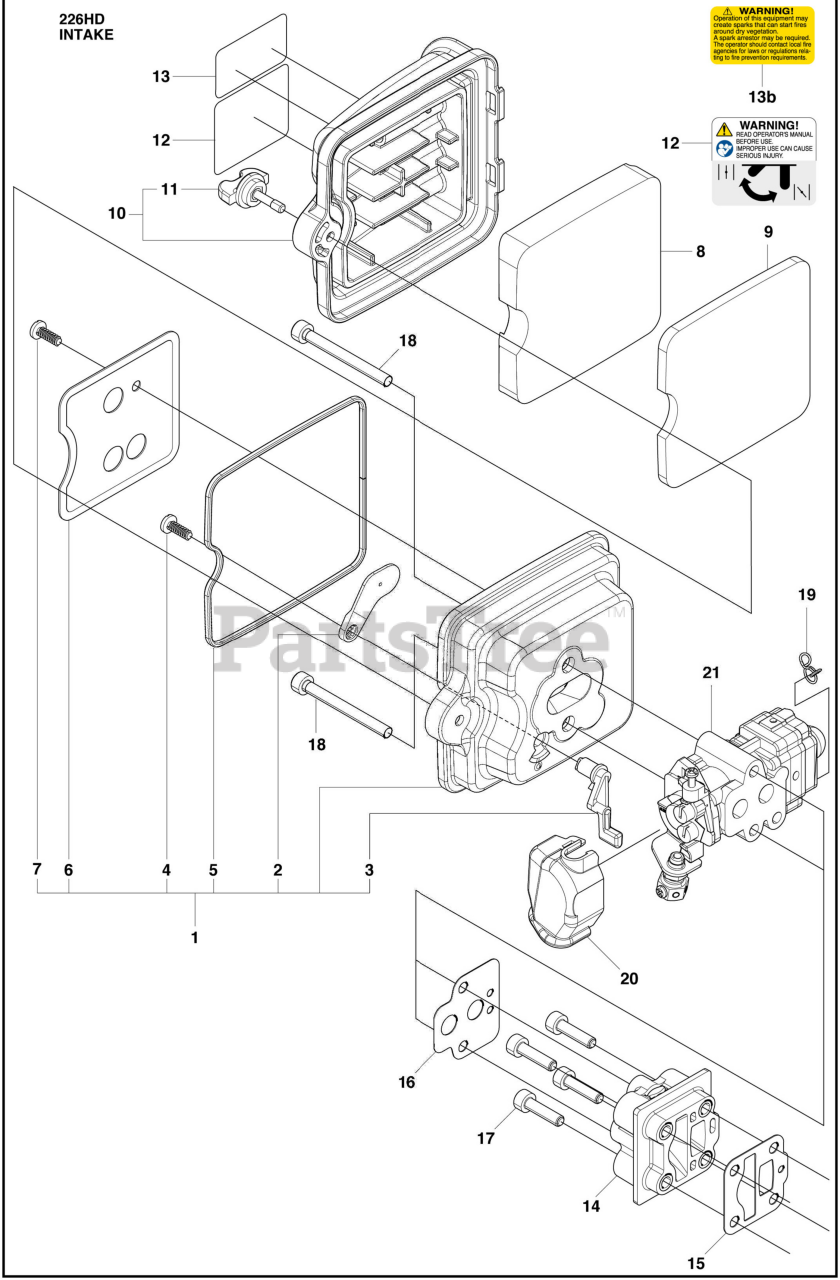

Intake Parts Diagram

  • Title

1

Husqvarna 521605001

BODY ASSY

$14.99

$

Usually ships in 3-10 days

0

2

Husqvarna 521750101

Choke Plate
(Superseded to 506684301)

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 521760501

Choke Lever

$4.99

$

In Stock, only 4 left!

0

4

Husqvarna 521740901

Screw
(Superseded to 506673801)

$4.99

$

In Stock, Qty 9

0

5

Husqvarna 521751301

Packing

$4.99

$

In Stock, only 1 left!

0

6

Husqvarna 521607901

SCREEN

$5.99

$

In Stock, only 2 left!

0

7

Husqvarna 521740901

Screw
(Superseded to 506673801)

$4.99

$

In Stock, Qty 9

0

8

Husqvarna 523090001

Air Filter, Foam

$11.99

$

In Stock, only 3 left!

0

9

Husqvarna 523071101

Air Filter

$6.99

$

In Stock, Qty 5

0

10

Husqvarna 523071201

Cover Assembly

$26.99

$

Usually ships in 3-10 days

0

11

Husqvarna 523071301

Knob

$5.99

$

Usually ships in 3-10 days

0

12

Husqvarna 521766301

LABEL

$

$

Not available

13b

Husqvarna 522928601

LABEL WARNING SPARK A

Note: US only

$

$

Not available

14

Husqvarna 506654401

Insulator
(Superseded to 511349701)

$13.99

$

In Stock, only 4 left!

0

15

Husqvarna 506654601

Insulator Gasket
(Superseded to 593136001)

$7.49

$

In Stock, only 4 left!

0

16

Husqvarna 506654801

Carburetor Gasket
(Superseded to 521755001)

$4.99

$

In Stock, only 2 left!

0

17

Husqvarna 506689001

Torx Bolt

$6.49

$

Usually ships in 3-10 days

0

18

Husqvarna 506616301

Bolt
(Superseded to 521345501)

$4.99

$

In Stock, Qty 10

0

19

Husqvarna 506613701

Clip
(Superseded to 506741501)

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 506615201

Cover
(Superseded to 521327901)

$9.99

$

Usually ships in 3-10 days

0

21

Husqvarna 523071501

Carburetor Assembly

$85.99

$

Usually ships in 3-10 days

0
