226 HD 60 S - Husqvarna Hedge Trimmer (2009-01) Crankcase Parts Diagram

Hedge Trimmer

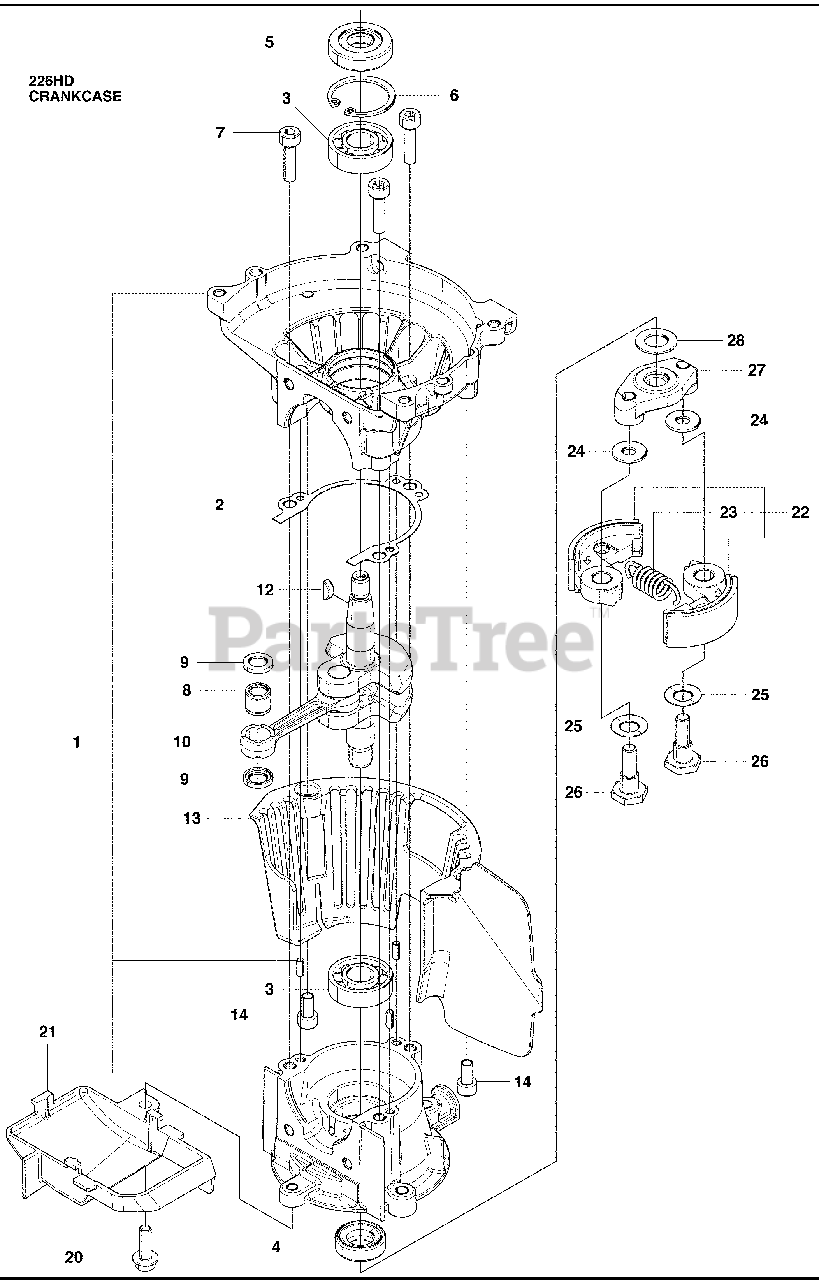

Crankcase Parts Diagram

  • Title

1

Husqvarna 506638401

CRANKCASE COMP

$51.99

$

Usually ships in 3-10 days

0

2

Husqvarna 506684801

Case Gasket

$3.49

$

Usually ships in 3-10 days

0

3

Husqvarna 523071701

Bearing
(Superseded to 506610301)

$12.99

$

In Stock, only 1 left!

0

4

Husqvarna 506615701

Seal
(Superseded to 521340001)

$9.99

$

Usually ships in 3-10 days

0

5

Husqvarna 506612901

Seal

$6.49

$

In Stock, only 2 left!

0

6

Husqvarna 506609901

Ring

$4.99

$

In Stock, only 3 left!

0

7

Husqvarna 506616201

Torx Bolt
(Superseded to 521345401)

$6.49

$

In Stock, only 2 left!

0

8

Husqvarna 506685001

Bearing

$10.99

$

Usually ships in 3-10 days

0

9

Husqvarna 505041001

Washer

$4.99

$

In Stock, only 2 left!

0

10

Husqvarna 506651801

Crankshaft, Comp

$91.99

$

Usually ships in 3-10 days

0

12

Husqvarna 506610701

KEY

$

$

Not available

13

Husqvarna 506629601

Plate

$5.99

$

In Stock, only 1 left!

0

14

Husqvarna 506616101

BOLT TORX M5XL10 T27

$

$

Not available

20

Husqvarna 506616501

Bolt
(Superseded to 521346501)

$3.99

$

In Stock, only 2 left!

0

21

Husqvarna 506657001

Engine Cover

$28.99

$

Usually ships in 3-10 days

0

22

Husqvarna 506629401

Shoe, Comp

$20.99

$

In Stock, only 2 left!

0

23

Husqvarna 506685801

Spring

$3.49

$

In Stock, Qty 11

0

24

Husqvarna 505054401

Washer

$4.99

$

Usually ships in 3-10 days

0

25

Husqvarna 506613801

Washer

$6.49

$

Usually ships in 3-10 days

0

26

Husqvarna 506652201

Screw

$3.99

$

Usually ships in 3-10 days

0

27

Husqvarna 506652101

Clutch Plate

$6.99

$

Usually ships in 3-10 days

0

28

Husqvarna 506614201

Washer

$6.49

$

In Stock, only 4 left!

0
