22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Hood and Covers Assembly Parts Diagram

Turbo Narrow Track Dingo Compact Utility Loader

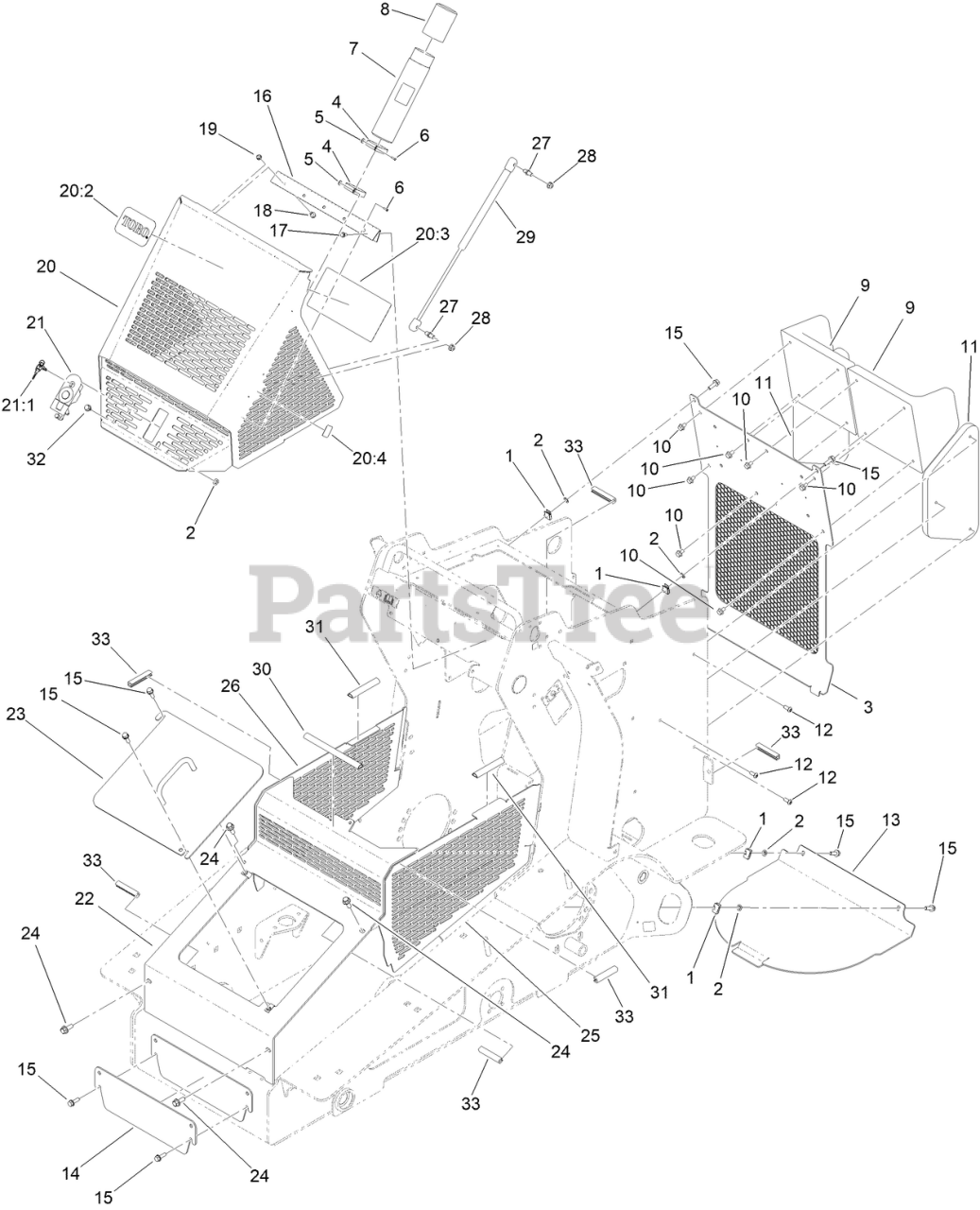

Hood and Covers Assembly Parts Diagram

  • Title

1

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

2

Toro 109-5667

RING-RETAINING, BOLT

$6.49

$

In Stock, only 1 left!

0

3

Toro 144-4365-03

COVER-REAR [BLACK]

$

$

Currently unavailable

4

Toro 2412-120

CLAMP-R

$7.99

$

Usually ships in 3-6 days

0

5

Toro 3269-10

WASHER-BACK

$0.99

$

In Stock, only 4 left!

0

6

Toro 3269-17

RIVET-POP

$1.99

$

Usually ships in 3-6 days

0

7

Toro 104-7050

TUBE-MANUAL

$9.49

$

Usually ships in 3-6 days

0

8

Toro 104-7048

CAP-HOUSING

$5.99

$

Usually ships in 3-6 days

0

9

Toro 140-5943

PAD-OPERATOR

$

$

Currently unavailable

10

Toro 3234-30

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

11

Toro 145-4343

PAD-OPERATOR, KNEE

$

$

Currently unavailable

12

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

13

Toro 144-4397-01

COVER-ACCESS, BOTTOM

$

$

Currently unavailable

14

Toro 144-4352-01

COVER-ACCESS, FRONT

$

$

Currently unavailable

15

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

16

Toro 100-1284

HINGE-HOOD

$80.99

$

In Stock, only 1 left!

0

17

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3234-13

SCREW-HHF

$1.49

$

In Stock, only 4 left!

0

19

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Toro 145-4470

HOOD ASM

$

$

Currently unavailable

20:2

Toro 117-0871

DECAL

$34.99

$

In Stock, only 2 left!

0

20:3

Toro 145-4486

DECAL-SERVICE INTERVAL

$

$

Currently unavailable

20:4

Toro 147-6827

DECAL-OPERATOR MANUAL

$

$

Currently unavailable

21

Toro 144-4364

LATCH-COMPRESSION, LOCKING

$85.99

$

In Stock, only 2 left!

0

21:1

Toro 145-4488

KEYS-LATCH

$17.99

$

Usually ships in 0 days

0

22

Toro 147-6826-03

PANEL-COVER, FRONT

$

$

Currently unavailable

23

Toro 145-4338-03

COVER-ACCESS, BATTERY [BLACK]

$

$

Currently unavailable

24

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

25

Toro 147-6821-03

COVER-SIDE, LH

$

$

Currently unavailable

26

Toro 147-6822-03

COVER-SIDE, RH

$

$

Currently unavailable

27

Toro 98-3104

STUD-BALL

$

$

Currently unavailable

28

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

29

Toro 147-6766

SPRING-GAS

$

$

Currently unavailable

30

Toro 140-5942

SEAL-BULB

$9.49

$

Usually ships in 3-6 days

0

31

Toro 138-2449

SEAL-BULB

$4.49

$

Usually ships in 3-6 days

0

32

Toro 9266934

SCREW

$8.99

$

In Stock, Qty 9

0

33

Toro 70-2041

TRIM

$5.99

$

Usually ships in 3-6 days

0
