Toro 22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Engine and Muffler Assembly Parts Lookup with Diagrams

1

Toro 145-4547

ENGINE-YANMAR, 3TNV80FT-ZMTR2

$

Currently unavailable 

2

Toro 144-4417-03

MOUNT-ENGINE, LH, REAR

$

Currently unavailable 

3

Toro 144-4418-03

MOUNT-ENGINE, RH, REAR

$

Currently unavailable 

4

Toro 144-4419-03

MOUNT-ENGINE, LH, FRONT

$

Currently unavailable 

5

Toro 144-4420-03

MOUNT-ENGINE, RH, FRONT

$

Currently unavailable 

6

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

7

Toro 120-6274

MOUNT-ENGINE

$43.99

$

In Stock, only 2 left!

8

Toro 138-6462

SUPPORT-ISOLATOR

$6.99

$

Usually ships in 3-6 days

9

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

10

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

11

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

13

Toro 147-6859

MUFFLER ASM

$

Currently unavailable 

15

Toro 33004-00

NUT-HF

$0.99

$

In Stock, Qty 9

17

Toro 147-6865

PIPE-EXHAUST

$

Currently unavailable 

18

Toro 2112-6

CLAMP-MUFFLER

$11.99

$

Usually ships in 3-6 days

18:1

Toro 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

19

Toro 126-6531

COUPLER-FLYWHEEL

$288.99

$

Usually ships in 3-6 days

20

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

21

Toro 145-3210-0P

COVER-FLYWHEEL

$607.99

$

Usually ships in 0 days

22

Toro 145-4305-0P

BRACKET-GUIDE, HOSE

$

Currently unavailable 

23

Toro 33114-010

SCREW-HH

$2.49

$

Usually ships in 3-6 days

24

Toro 139-2218

ADAPTOR-STR

$45.99

$

Usually ships in 3-6 days

25

Toro 340-12

FITTING-STRAIGHT

$15.99

$

Usually ships in 3-6 days

25:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

26

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

26:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

27

Toro 140-5968

HYD HOSE ASM

$

Currently unavailable 

28

Toro 340-87

FITTING-ELBOW, 45 DEG

$20.99

$

Usually ships in 3-6 days

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

28:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

30

Toro 147-6793

AIR CLEANER ASM

$

Currently unavailable 

32

Toro 147-6788-0P

BRACKET-AIR CLEANER

$

Currently unavailable 

33

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

34

Toro 147-6786

HOSE-INTAKE

$

Currently unavailable 

35

Toro 147-6787

HOSE-INTAKE

$

Currently unavailable 

36

Toro 2412-92

CLAMP-HOSE

$3.49

$

Usually ships in 3-6 days

41

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

42

Toro 147-6866-0P

BRACKET-TAILPIPE, FOOT

$

Currently unavailable 

43

Toro 147-6759-0P

BRACKET-HOSE GUIDE

$

Currently unavailable 

44

Toro 147-6768

DIPSTICK

$

Currently unavailable 

45

Toro 147-6791

RING-FLYWHEEL

$

Currently unavailable 

46

Toro 33115-020

SCREW-HH

$1.49

$

Usually ships in 3-6 days

47

Toro 139-9940

SCREW-HH

$2.49

$

Usually ships in 3-6 days

48

Toro 2412-130

CLAMP-HOSE

$4.49

$

Usually ships in 3-6 days

49

Toro 147-6785

DIPSTICK

$

Currently unavailable 

50

Toro 147-6795

GASKET-EXHAUST

$

Currently unavailable 

51

Toro 147-6867-0P

BRACKET-MUFFLER

$

Currently unavailable 

52

Toro 136-8683

NUT-LOCK

$1.99

$

Usually ships in 3-6 days

53

Toro 2112-9

CLAMP

$9.99

$

Usually ships in 3-6 days

53:1

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

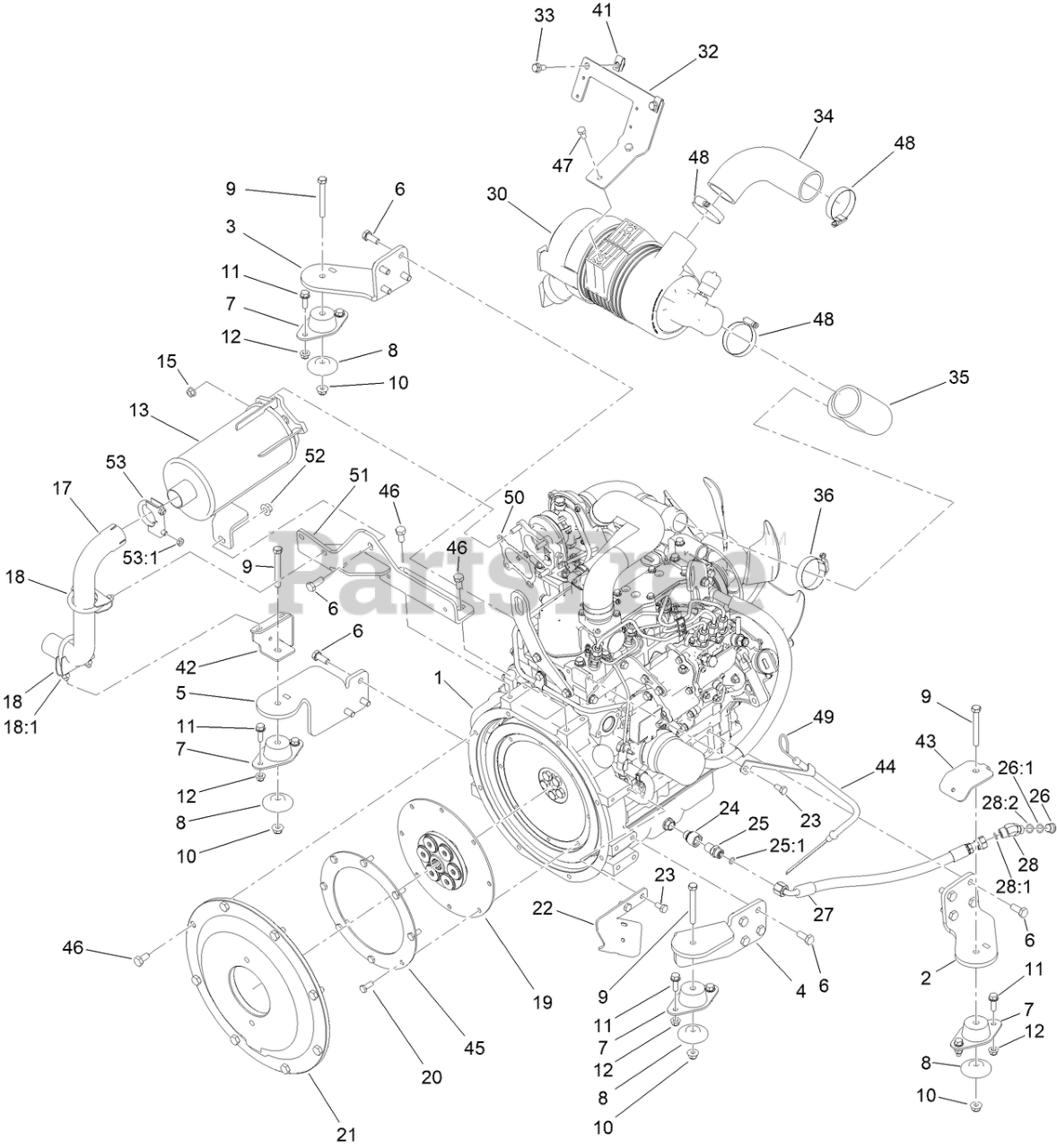

22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Engine and Muffler Assembly Parts Diagram

Engine and Muffler Assembly Parts Diagram
