22587 (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 416800000 - 999999999) Cooling System Assembly Parts Diagram

Turbo Narrow Track Dingo Compact Utility Loader

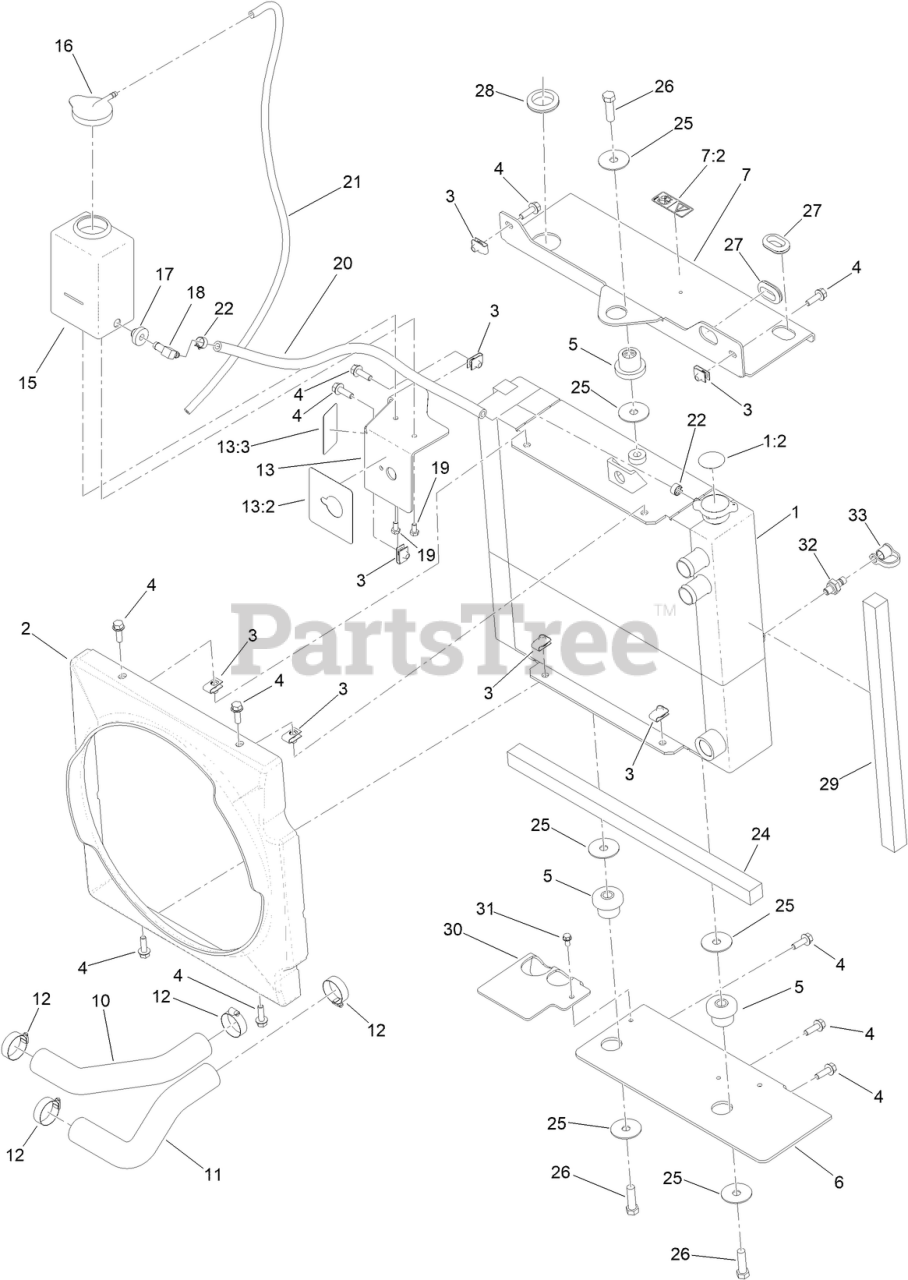

Cooling System Assembly Parts Diagram

  • Title

1

Toro 147-6714

COOLER ASM

$

$

Currently unavailable

1:2

Toro 106-6755

DECAL-CAP, RADIATOR

$27.99

$

Usually ships in 3-6 days

0

2

Toro 144-4423

SHROUD-COOLER

$

$

Currently unavailable

3

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

4

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

5

Toro 119-1422

MOUNT-ISOLATOR

$20.99

$

Usually ships in 3-6 days

0

6

Toro 145-4521-03

PLATE-MOUNT, COOLER

$

$

Currently unavailable

7

Toro 147-6701

BRACKET-COOLER

$

$

Currently unavailable

7:2

Toro 115-2047

DECAL-SURFACE, HOT

$17.99

$

In Stock, only 1 left!

0

10

Toro 145-4527

HOSE-RADIATOR, UPPER

$

$

Currently unavailable

11

Toro 145-4528

HOSE-RADIATOR, LOWER

$

$

Currently unavailable

12

Toro 2412-34

CLAMP-HOSE

$2.49

$

In Stock, only 3 left!

0

13

Toro 145-4475

BOTTLE BRACKET ASM-RADIATOR

$

$

Currently unavailable

13:2

Toro 131-8026

DECAL-BATTERY DISCONNECT

$18.99

$

Usually ships in 3-6 days

0

13:3

Toro 147-6709

DECAL-WARNING, FAN

$

$

Currently unavailable

15

Toro 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

16

Toro 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 2 left!

0

17

Toro 46-6560

BUSHING

$5.99

$

In Stock, Qty 20+

0

18

Toro 46-6550

FITTING-ELBOW, 90 DEG

$41.99

$

Usually ships in 3-6 days

0

19

Toro 321-2

SCREW-HH

$3.49

$

In Stock, only 2 left!

0

20

Toro 108-3284

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

21

Toro 108-6344

HOSE-LP

$16.99

$

Usually ships in 3-6 days

0

22

Toro 92-2379

CLAMP-HOSE

$0.99

$

Usually ships in 3-6 days

0

24

Toro 145-4549

FOAM-RADIATOR

$

$

Currently unavailable

25

Toro 147-6703

WASHER

$

$

Currently unavailable

26

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 240-5

GROMMET

$16.99

$

Usually ships in 3-6 days

0

28

Toro 240-3

GROMMET-RUBBER

$18.99

$

In Stock, only 1 left!

0

29

Toro 147-6700

FOAM-RADIATOR

$

$

Currently unavailable

30

Toro 147-6732

BAFFLE-AIR

$

$

Currently unavailable

31

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

32

Toro 99-4443

FITTING

$

$

Currently unavailable

33

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0
