22587 G (TX 1000) - Toro Turbo Narrow Track Dingo Compact Utility Loader (SN: 400000000 - 416799999) Traction Hydraulics Assembly Parts Diagram

Turbo Narrow Track Dingo Compact Utility Loader

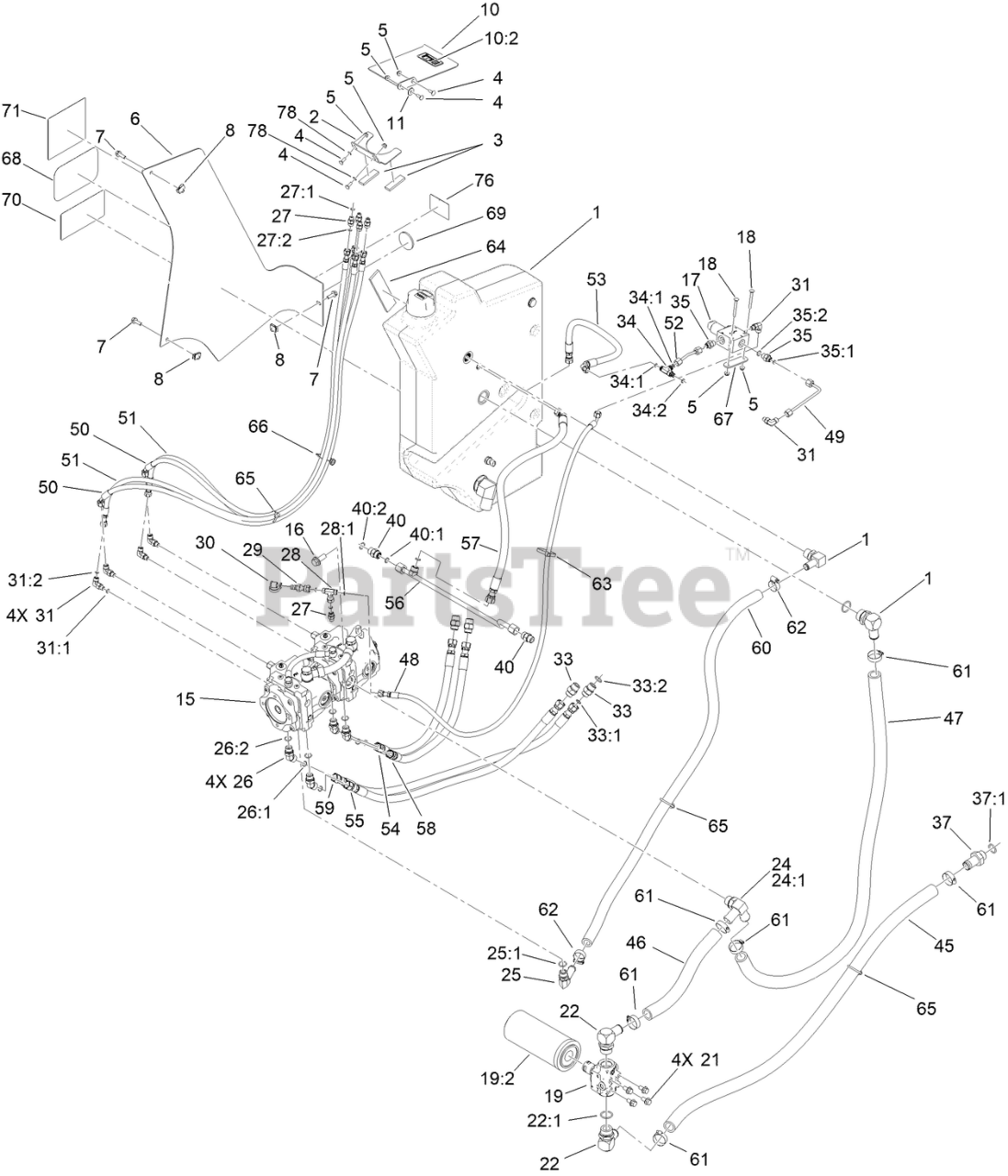

Traction Hydraulics Assembly Parts Diagram

  • Title

1

Toro 145-4467

TANK ASM-HYD

$1756.99

$

Usually ships in 0 days

0

2

Toro 145-4429-03

BRACKET-TANK, HOLD DOWN

$18.99

$

Usually ships in 0 days

0

3

Toro 145-4430

PAD-FOAM

$1.99

$

Usually ships in 0 days

0

4

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 20+

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 145-4483

TANK COVER ASM-HYD

$288.99

$

Usually ships in 0 days

0

7

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

8

Toro 115-7721

NUT-CLIP, U

$2.49

$

Usually ships in 3-6 days

0

10

Toro 145-4482

TANK BRACKET ASM-HYD

$78.99

$

Usually ships in 0 days

0

10:2

Toro 125-8483

DECAL-HYD FLUID

$17.99

$

Usually ships in 3-6 days

0

11

Toro 3290-456

WASHER-BELLEVILLE

$2.99

$

In Stock, Qty 20+

0

15

Toro 147-6767

PUMP-TANDEM

$7820.99

$

Usually ships in 0 days

0

16

Toro 137-4653

SCREW-HHF

$4.49

$

Usually ships in 3-6 days

0

17

Toro 145-4324

VALVE-PROPORTIONAL PRESSURE REDUCING

$373.99

$

Usually ships in 0 days

0

18

Toro 120-9699

SCREW-CARR

$0.99

$

Usually ships in 3-6 days

0

19

Toro 139-1010

FILTER HEAD ASM

$344.99

$

Usually ships in 3-6 days

0

19:2

Toro 94-2621

ELEMENT-FILTER

$89.99

$

In Stock, only 1 left!

0

21

Toro 3234-1

SCREW-HHF

$1.99

$

In Stock, Qty 14

0

22

Toro 23-8910

STEM-BARB-90

$220.99

$

Usually ships in 3-6 days

0

22:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

24

Toro AU375462A1

CONNECTOR

$129.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

25

Toro 87-8170

FITTING-90

$49.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

26

Toro 340-101

FITTING-HYD, 45 DEG

$37.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

26:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

27

Toro 340-92

FITTING-STRAIGHT

$13.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

27:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

28

Toro 99-3477

FITTING-TEE

$77.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

29

Toro 115-8886

NIPPLE-TEST

$81.99

$

Usually ships in 3-6 days

0

30

Toro 353-947

CAP-DUST, RUBBER

$

$

Not available

31

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

31:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

33

Toro 340-6

FITTING-STRAIGHT

$20.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

33:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

34

Toro 340-140

FITTING-TEE

$65.99

$

Usually ships in 3-6 days

0

34:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

34:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 2 left!

0

35

Toro 340-1

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 5

0

35:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

37

Toro 99-3017

FITTING

$91.99

$

In Stock, only 1 left!

0

37:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

40

Toro 340-4

FITTING-STRAIGHT

$12.99

$

In Stock, only 3 left!

0

40:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

40:2

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

45

Toro 145-4380

HYD HOSE

$77.99

$

Usually ships in 0 days

0

46

Toro 145-4381

HYD HOSE

$31.99

$

Usually ships in 0 days

0

47

Toro 145-4382

HYD HOSE

$101.99

$

Usually ships in 0 days

0

48

Toro 145-4365

HYD HOSE ASM

$56.99

$

Usually ships in 0 days

0

49

Toro 147-6713

HYD TUBE ASM

$30.99

$

Usually ships in 0 days

0

50

Toro 145-4367

HYD HOSE ASM

$58.99

$

Usually ships in 0 days

0

51

Toro 145-4368

HYD HOSE ASM

$55.99

$

Usually ships in 0 days

0

52

Toro 147-6711

HYD TUBE ASM

$30.99

$

Usually ships in 0 days

0

53

Toro 145-4374

HYD HOSE ASM

$71.99

$

Usually ships in 0 days

0

54

Toro 145-4377

HYD HOSE ASM

$66.99

$

Usually ships in 0 days

0

55

Toro 145-4378

HYD HOSE ASM

$72.99

$

Usually ships in 0 days

0

56

Toro 147-6770

HYD TUBE ASM

$69.99

$

Usually ships in 0 days

0

57

Toro 147-6769

HYD HOSE ASM

$103.99

$

Usually ships in 0 days

0

58

Toro 145-4490

HYD HOSE ASM

$66.99

$

Usually ships in 0 days

0

59

Toro 145-4491

HYD HOSE ASM

$72.99

$

Usually ships in 0 days

0

60

Toro 145-4492

HYD HOSE

$85.99

$

Usually ships in 0 days

0

61

Toro 2412-34

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

62

Toro 2412-129

CLAMP-HOSE

$5.49

$

In Stock, Qty 7

0

63

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

64

Toro 112-2401

PAD-RUBBER

$9.99

$

Usually ships in 3-6 days

0

65

Toro 32180-118

CLIP-TIE

$1.99

$

Usually ships in 3-6 days

0

66

Toro 32180-139

MOUNT-TIE WRAP, MAGNETIC

$28.99

$

Usually ships in 3-6 days

0

67

Toro 147-6790

BRACKET-CLAMP, VALVE

$3.99

$

Usually ships in 0 days

0

68

Toro 145-0609

DECAL-TORO LOGO

$12.99

$

Usually ships in 3-6 days

0

69

Toro 139-1937

REFLECTOR-RED

$

$

Currently unavailable

70

Toro 147-6708

DECAL-TX1000 TURBO

$7.99

$

Usually ships in 0 days

0

71

Toro 132-8764

DECAL-S8VSW6X6

$

$

Currently unavailable

76

Toro 132-8770

DECAL-SRVSW2X3

$

$

Currently unavailable

78

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

0
