22585 - Toro Snow Thrower for Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Housing Assembly Parts Diagram

Snow Thrower for Dingo Compact Utility Loader

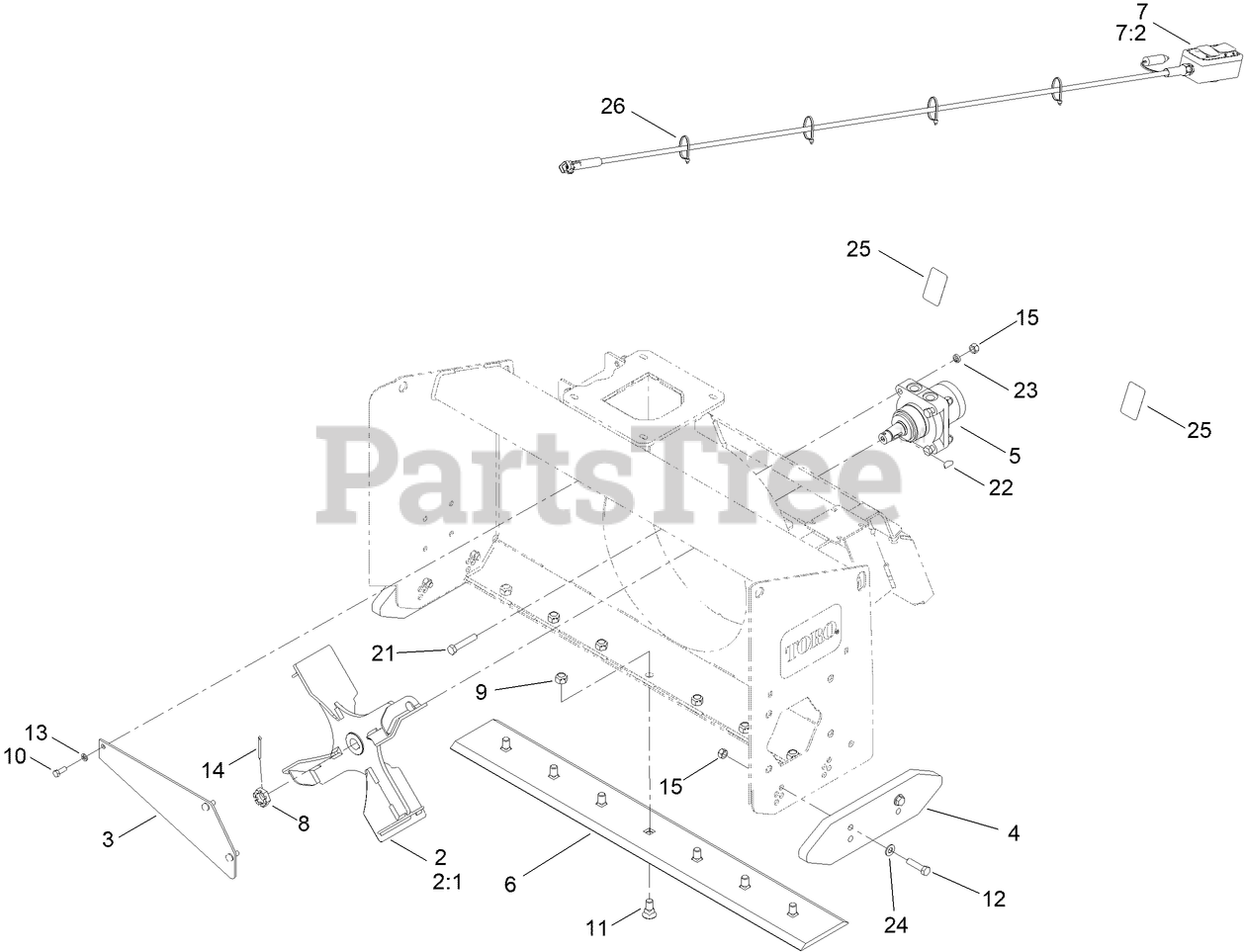

Housing Assembly Parts Diagram

  • Title

2

Toro 144-1256

IMPELLER

$842.99

$

Usually ships in 3-6 days

0

2:1

Toro 144-2511

KIT-SEAL

$159.99

$

Usually ships in 3-6 days

0

3

Toro 144-1266

PLATE-IMPLELLER

$49.99

$

Usually ships in 3-6 days

0

4

Toro 144-1269

SHOE-STEEL

$205.99

$

Usually ships in 3-6 days

0

4

Toro 144-2504

SHOE-POLY

$216.99

$

Usually ships in 3-6 days

0

5

Toro 144-1272

MOTOR-IMPELLER

$3026.99

$

Usually ships in 3-6 days

0

6

Toro 144-1274

PLATE-LEADING EDGE

$583.99

$

Usually ships in 3-6 days

0

7

Toro 144-2509

TORO ELC BOX 2 SWITCH ASM

$664.99

$

Usually ships in 3-6 days

0

7:2

Toro 144-2519

DECAL-CHUTE CONTROL

$81.99

$

Usually ships in 3-6 days

0

8

Toro 99-3139

NUT

$16.99

$

In Stock, only 3 left!

0

9

Toro 105-0369

NUT-CROWNLOCK

$8.49

$

Usually ships in 3-6 days

0

10

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

11

Toro 144-2510

BOLT-PLOW

$7.99

$

Usually ships in 3-6 days

0

12

Toro 325-8

SCREW-HH

$5.49

$

In Stock, Qty 16

0

13

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 8

0

14

Toro 3272-20

PIN-COTTER

$1.99

$

Usually ships in 3-6 days

0

15

Toro 32153-5

NUT-HEX

$1.99

$

In Stock, Qty 10

0

21

Toro 325-11

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

22

Toro 3257-42

KEY-WOODRUFF

$6.49

$

In Stock, Qty 20+

0

23

Toro AU8LW81108

WASHER - Split Lock, 1/2 x 0.175 Thk

$0.99

$

Usually ships in 3-6 days

0

24

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 144-7107

KIT-REFLECTOR

$24.99

$

Usually ships in 3-6 days

0

26

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0
