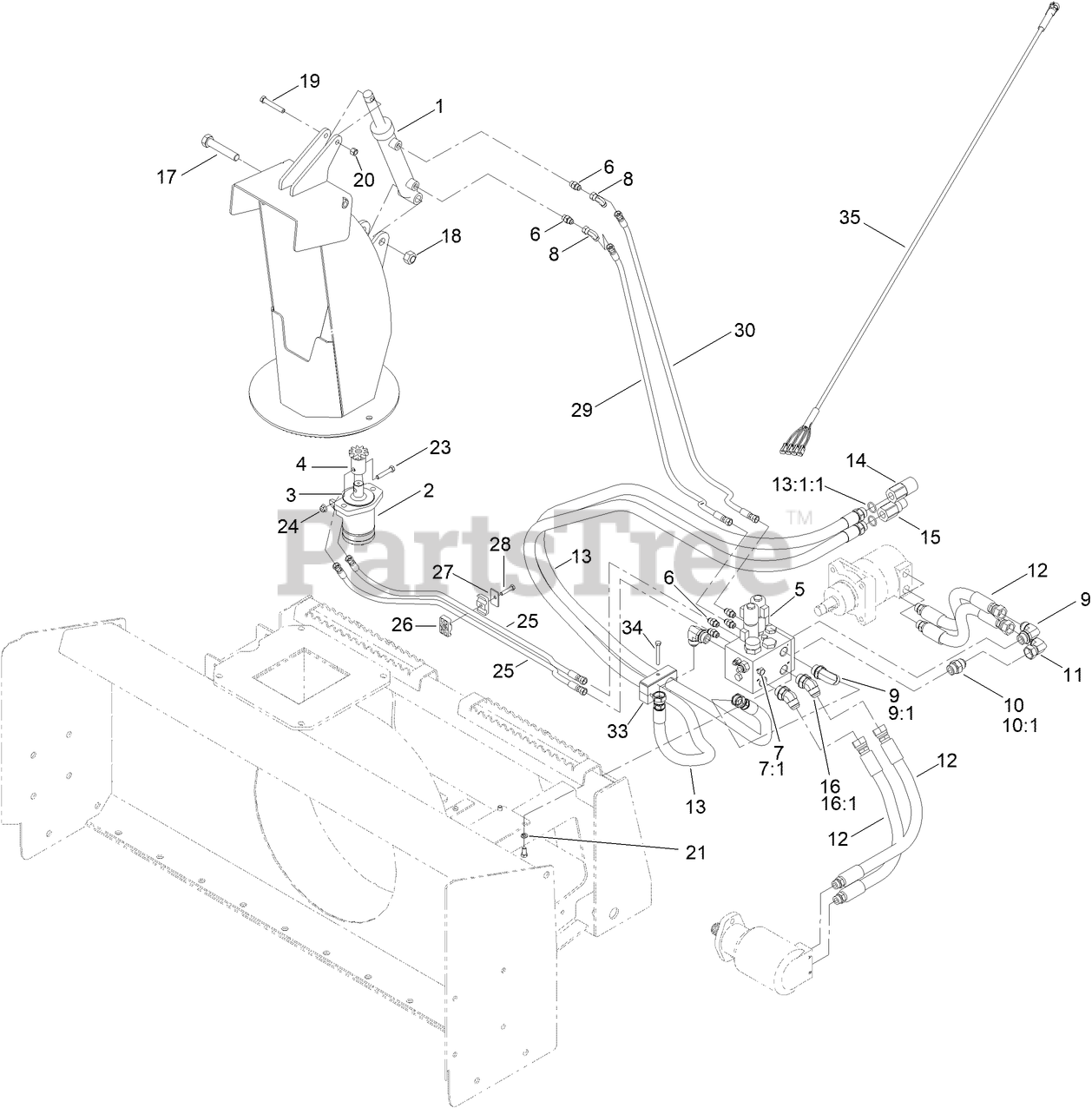

22583 - Toro Snow Thrower for TXL 2000 and Tracked Dingo Compact Utility Loader (SN: 320000001 - 320999999) (2020) Hydraulic Assembly Parts Diagram

Snow Thrower for TXL 2000 and Tracked Dingo Compact Utility Loader

Hydraulic Assembly Parts Diagram

  • Title

1

Toro 138-5175

CYLINDER-HYD

$902.99

$

Usually ships in 3-6 days

0

2

Toro 138-5179

MOTOR-HYD, CHUTE

$2022.99

$

Usually ships in 3-6 days

0

3

Toro 138-5180

FITTING-HYD, ELBOW

$22.99

$

Usually ships in 3-6 days

0

4

Toro 138-5181

GEAR-ROTATOR

$

$

Currently unavailable

5

Toro 138-5182

MANIFOLD-SNOW BLOWER

$2640.99

$

Usually ships in 3-6 days

0

6

Toro HYD13932

FITTING,STRAIGHT,6-MORB X 6-M37JIC

$7.49

$

In Stock, only 1 left!

0

7

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

7:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 9

0

8

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

9

Toro 353-369

FITTING-ELBOW, 90 DEG

$71.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

10

Toro AU218-5064

FITTING-STRAIGHT

$11.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU218-5231

FITTING-ELBOW, 90

$20.99

$

Usually ships in 3-6 days

0

12

Toro 138-5192

HOSE-HYD ASM

$103.99

$

Usually ships in 3-6 days

0

13

Toro 138-5193

HYD HOSE ASM

$307.99

$

Usually ships in 3-6 days

0

13:1

FITTING-STRAIGHT

Note: Not illustrated

$

$

Not available

13:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

13:1:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

14

Toro 137-8974

FITTING-HYD

$154.99

$

Usually ships in 3-6 days

0

15

Toro 137-8975

FITTING-HYD

$202.99

$

Usually ships in 3-6 days

0

16

Toro 131-2606

FITTING-JIC 37

$

$

Currently unavailable

16:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

17

Toro 328-7

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

18

Toro 120-7252

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

19

Toro 324-11

SCREW-HH

$4.49

$

Usually ships in 3-6 days

0

20

Toro 3296-48

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

21

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

22

Toro 323-4

SCREW-HH

Note: Not illustrated

$3.99

$

In Stock, only 1 left!

0

23

Toro 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

25

Toro 138-0513

HOSE-HYD

$81.99

$

Usually ships in 3-6 days

0

26

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

27

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0

28

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 138-5195

HOSE-HYD

$123.99

$

Usually ships in 3-6 days

0

30

Toro 138-5199

HOSE-HYD

$186.99

$

Usually ships in 3-6 days

0

31

Toro 325-7

SCREW-HH

Note: Not illustrated

$1.99

$

In Stock, Qty 5

0

32

Toro 3296-23

NUT-LOCK, NI

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0

33

Toro 137-8969

CLAMP-HOSE

$22.99

$

Usually ships in 3-6 days

0

34

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

35

Toro 144-2521

HARNESS-WIRE

$368.99

$

Usually ships in 3-6 days

0
