22581 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

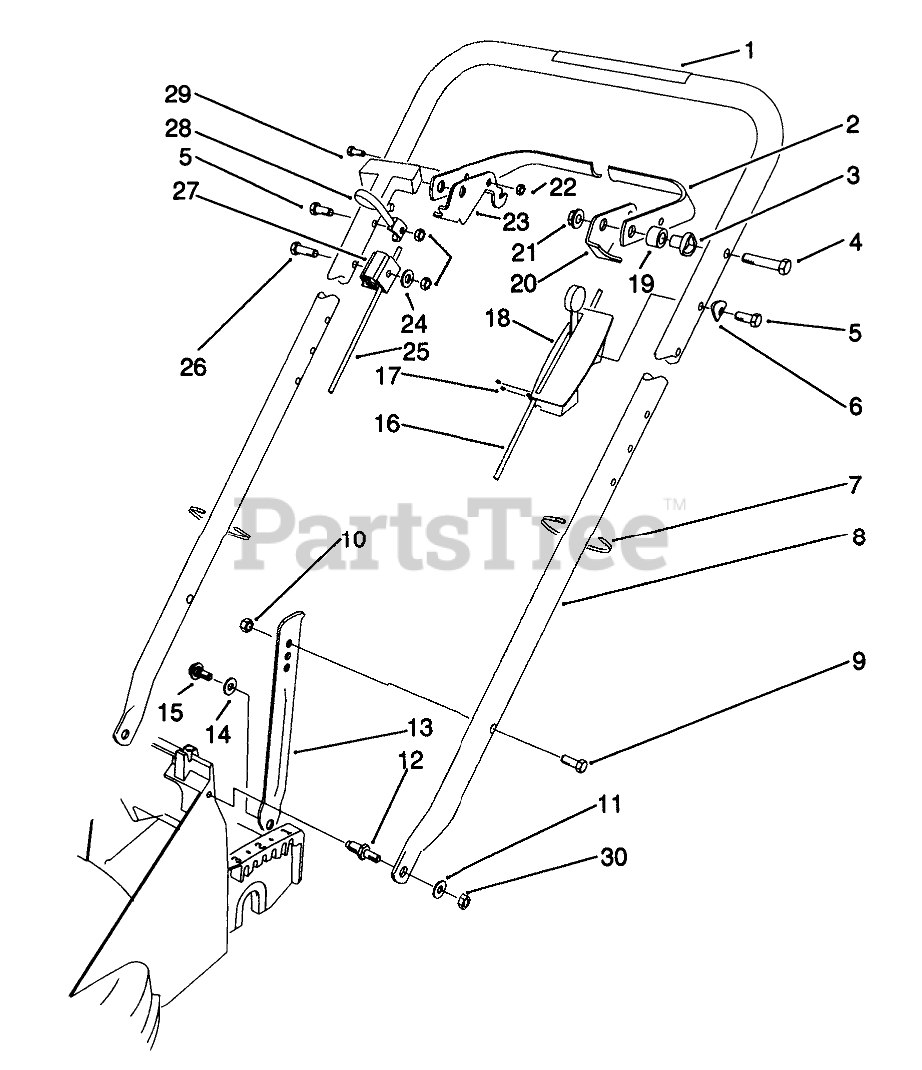

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 56-6280

WARNING DECAL

$

$

Not available

2

Toro 61-8270

Bar-Control
(Superseded to 61-8270-03)

$103.99

$

Usually ships in 3-6 days

0

3

Toro 49-1630

SPACER-SUPPORT

$8.99

$

Usually ships in 3-6 days

0

4

Toro 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

5

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

6

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

7

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

8

Toro 14-3219

Handle (Incl. Ref. #1)
(Superseded to 98-2000-03)

$124.99

$

Usually ships in 3-6 days

0

9

Toro 322-17

SCREW-HH

$3.99

$

In Stock, only 2 left!

0

10

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Toro 74-2130

SHOULDER STUD SCREW

$

$

Not available

13

Toro 65-5731

HANDLE LATCH B

$29.99

$

Usually ships in 3-6 days

0

14

Toro 256-313

NYLON WASHER

$

$

Not available

15

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

16

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

17

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

18

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

19

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

20

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

21

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 1 left!

0

22

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

23

Toro 77-5270

LEVER-CONTROL

$28.99

$

Usually ships in 3-6 days

0

24

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Toro 56-6097

BRAKE CABLE

$

$

Not available

26

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

27

Toro 46-6980

SUPPORT-CABLE

$15.99

$

In Stock, only 1 left!

0

28

Toro 46-8081

GUIDE-ROPE

$22.99

$

Usually ships in 3-6 days

0

29

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
