22580 - Toro Walk-Behind Mower (SN: 010000001 - 019999999) (1991) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

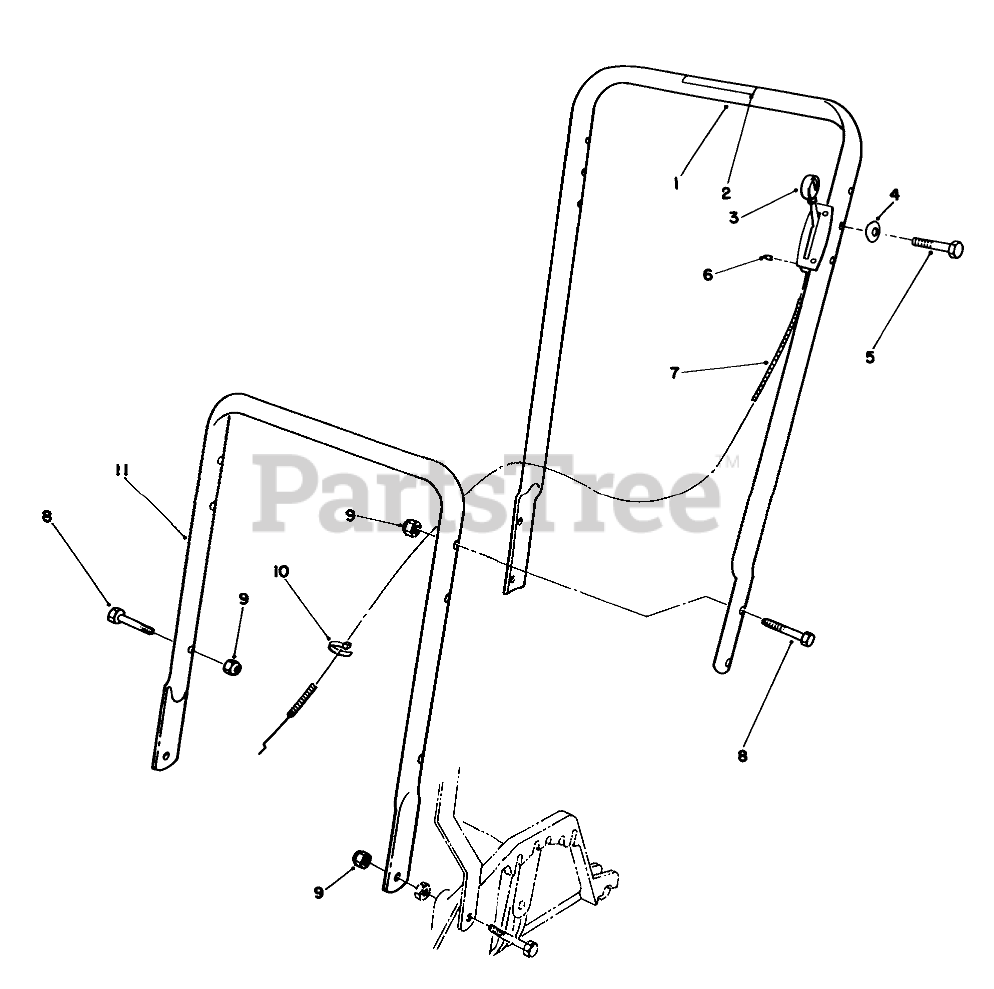

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 13-9729

Handle-Upper (Incl. Ref. #2)(Model No. 22580 Only)

$137.99

$

Usually ships in 3-6 days

0

Toro 14-2489

Handle-Upper (Incl. Ref. #2)(Model No. 22041 Only)

$

$

Not available

2

Toro 56-6280

WARNING DECAL

$

$

Not available

Toro 63-8540

DECAL - HANDLE

$

$

Not available

3

Toro 82-9950

CONTROL-THROTTLE

$100.99

$

Usually ships in 3-6 days

0

Toro 82-9952

BRACKET-CONTROL, THROTTLE

$90.99

$

Usually ships in 3-6 days

0

4

Toro 3-7501

WASHER

$6.49

$

In Stock, Qty 14

0

5

Toro 321-13

SCREW-HH

$4.49

$

In Stock, Qty 10

0

6

Toro 32151-86

E-RING

$2.99

$

In Stock, Qty 20+

0

7

Toro 70-1062

CABLE-THROTTLE

$

$

Not available

8

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, only 2 left!

0

10

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

11

Toro 52-2370

Handle-Lower
(Superseded to 52-2370-03)

$

$

Not available
