22577 - Toro Grapple Rake for Dingo Compact Utility Loader (SN: 319000001 - 319999999) (2019) Grapple Rake Assembly Parts Diagram

Grapple Rake for Dingo Compact Utility Loader

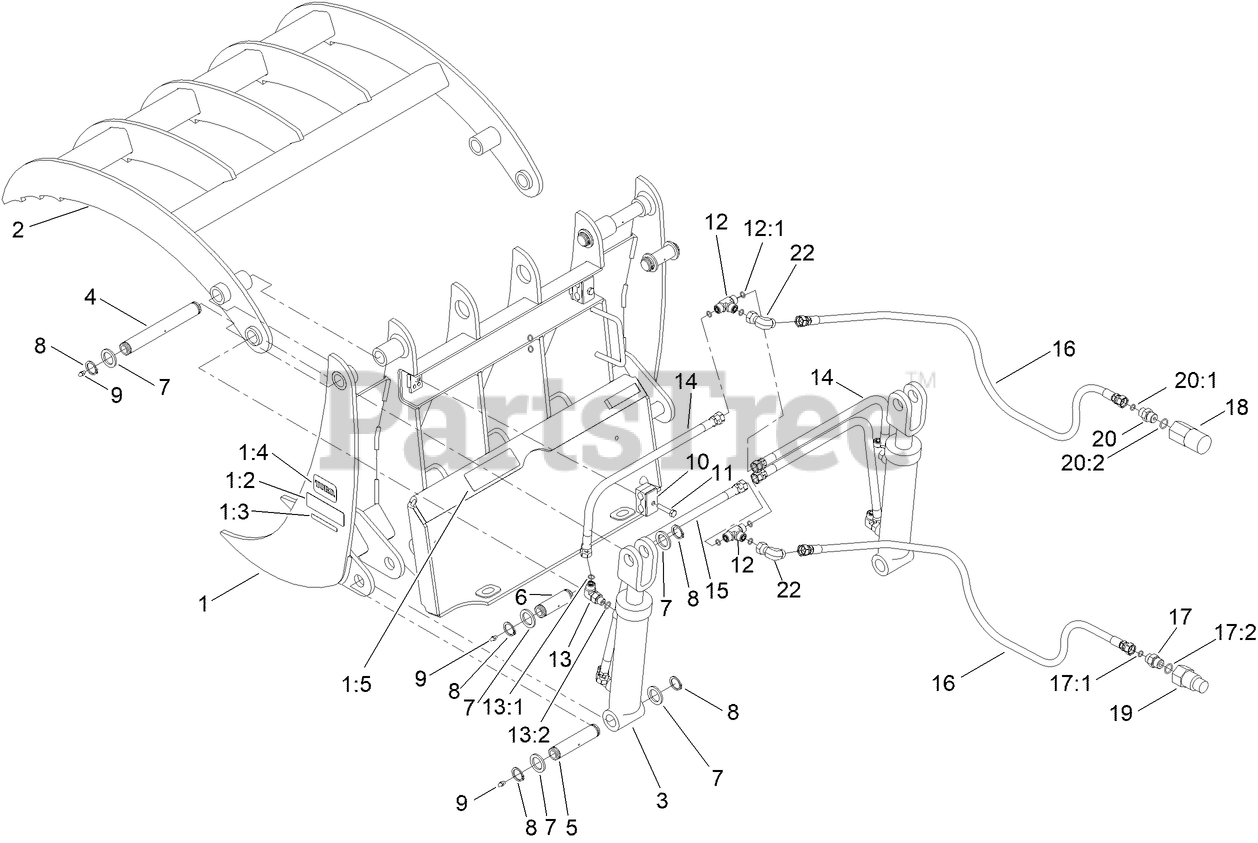

Grapple Rake Assembly Parts Diagram

  • Title
1

Toro 139-7185

FRAME-GRAPPLE

$

$

Currently unavailable

1:2

Toro 114-1281

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

1:3

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0

1:4

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

1:5

Toro 139-7186

DECAL-CAPACITY

$128.99

$

Usually ships in 3-6 days

0

2

Toro 139-7172

JAW-GRAPPLE

$910.99

$

Usually ships in 3-6 days

0

3

Toro 139-7173

CYLINDER-HYD

$1088.99

$

Usually ships in 3-6 days

0

4

Toro 139-7174

PIN-PIVOT

$35.99

$

Usually ships in 3-6 days

0

5

Toro 139-7175

PIN-PIVOT

$30.99

$

Usually ships in 3-6 days

0

6

Toro 139-7176

PIN-PIVOT

$28.99

$

Usually ships in 3-6 days

0

7

Toro 131-8570

SPACER-HARDENED

$3.99

$

Usually ships in 3-6 days

0

8

Toro 32151-36

RING-RETAINING

$4.99

$

In Stock, Qty 20+

0

9

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

10

Toro 137-8904

CLAMP-HOSE

$12.99

$

Usually ships in 3-6 days

0

11

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 340-20

DISCONTINUED

$11.99

$

Usually ships in 3-6 days

0

12:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

13

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

13:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

13:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

14

Toro 139-7177

HOSE-HYD

$71.99

$

Usually ships in 3-6 days

0

15

Toro 139-7178

HOSE-HYD

$76.99

$

Usually ships in 3-6 days

0

16

Toro 139-7179

HOSE-HYD

$107.99

$

Usually ships in 3-6 days

0

17

Toro 340-3

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

17:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

17:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

18

Toro 139-7167

COUPLER-FEMALE

$222.99

$

Usually ships in 3-6 days

0

19

Toro 139-7168

COUPLER-MALE

$142.99

$

Usually ships in 3-6 days

0

20

Toro 106-0073

FITTING-STR,ORIF

$

$

Not available

20:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

20:2

Toro 237-79

O-RING

$5.99

$

In Stock, Qty 7

0

22

Toro 340-159

FITTING-HYD, 90 DEG

$66.99

$

Usually ships in 3-6 days

0
