22542 - Toro Tiller for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Tiller Assembly Parts Diagram

Tiller for TXL 2000 Compact Utility Loader

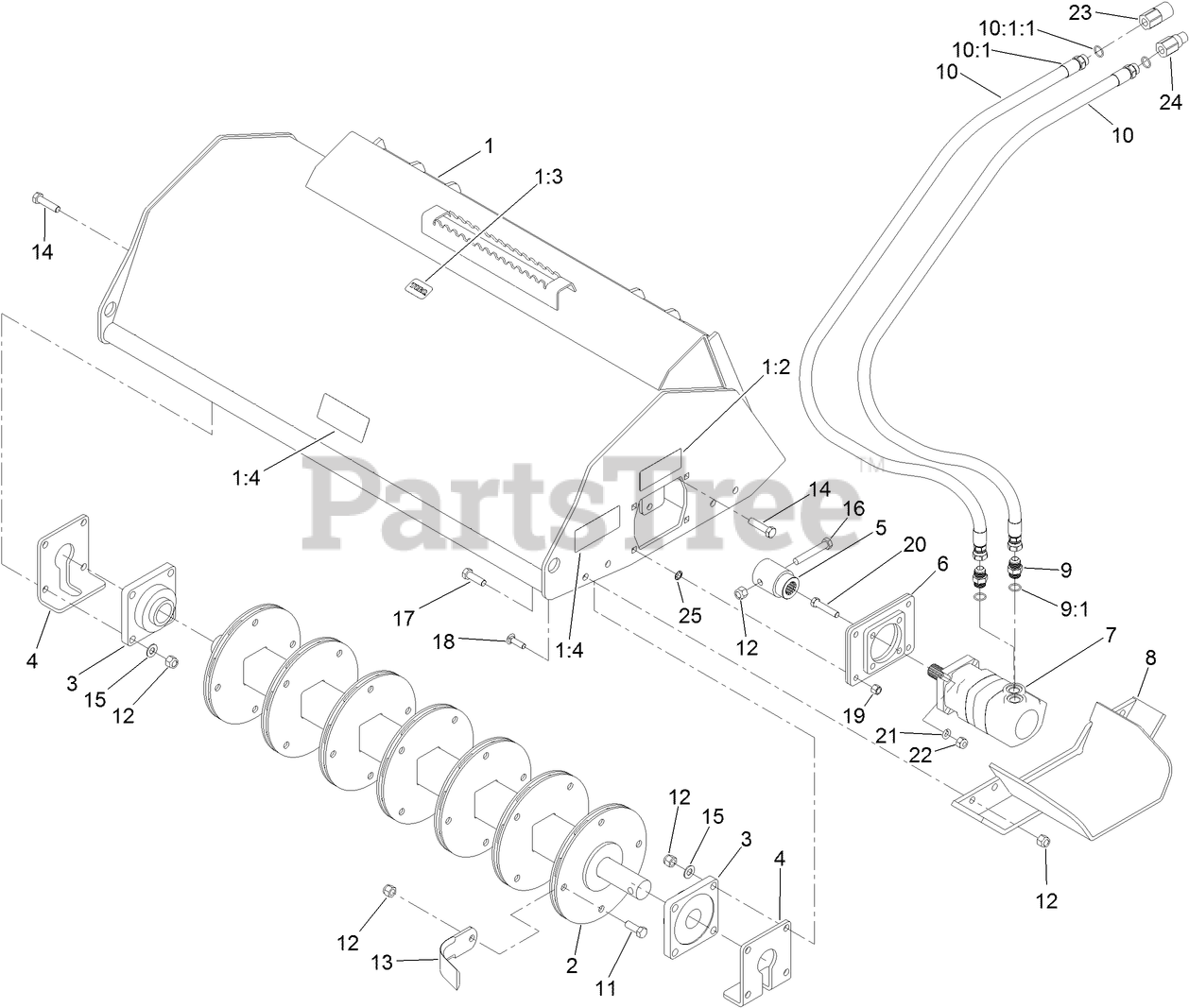

Tiller Assembly Parts Diagram

  • Title

1

Toro 139-2778

TILLER FRAME ASM

$3017.99

$

Usually ships in 3-6 days

0

1:2

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

1:3

Toro 98-3206

DECAL

$2.49

$

In Stock, only 1 left!

0

1:4

Toro 138-0539

DECAL-DANGER

$2.99

$

Usually ships in 3-6 days

0

2

Toro 137-9009

ROTOR-TILLER

$1949.99

$

Usually ships in 3-6 days

0

3

Toro 137-9016

BEARING-FLANGED

$129.99

$

Usually ships in 3-6 days

0

4

Toro 137-9015

GUARD-BEARING

$42.99

$

Usually ships in 3-6 days

0

5

Toro 137-9013

ADAPTER-DRIVE

$229.99

$

Usually ships in 3-6 days

0

6

Toro 137-9017

MOUNT-HYD MOTOR

$121.99

$

Usually ships in 3-6 days

0

7

Toro 137-9018

HYDRAULIC MOTOR ASM

$

$

Currently unavailable

7:1

Toro 139-1403

SEAL KIT

Note: Not illustrated

$446.99

$

Usually ships in 3-6 days

0

7:2

Toro 139-1404

SEAL KIT

Note: Not illustrated

$173.99

$

Usually ships in 3-6 days

0

7:3

Toro 139-1405

SEAL KIT

Note: Not illustrated

$188.99

$

Usually ships in 3-6 days

0

8

Toro 137-9014

PLATE-SKID

$318.99

$

Usually ships in 3-6 days

0

9

Toro AU218-5064

FITTING-STRAIGHT

$12.99

$

Usually ships in 3-6 days

0

9:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

10

Toro 137-9019

HOSE ASM

$482.99

$

Usually ships in 3-6 days

0

10:1

FITTING-STRAIGHT

Note: Not serviced separately

$

$

Not available

10:1:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1028

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

12

Toro 3296-53

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 137-9012

TINE TILLER

$37.99

$

Usually ships in 3-6 days

0

14

Toro 327-7

SCREW-HH

$13.99

$

In Stock, only 1 left!

0

15

Toro 3256-27

WASHER-FLAT

$2.99

$

In Stock, Qty 15

0

16

Toro HDW01706

SCREW-HHCS

$4.49

$

Usually ships in 3-6 days

0

17

Toro 327-6

SCREW-HH

$13.99

$

Usually ships in 3-6 days

0

18

Toro 3233-14

SCREW-CARR

$17.99

$

In Stock, Qty 20+

0

19

Toro 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

20

Toro AU428-944

SCREW-HH

$

$

Not available

21

Toro 137-8944

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

22

Toro 3296-63

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

23

Toro 137-9006

FITTING-ADAPTER

$157.99

$

Usually ships in 3-6 days

0

24

Toro 137-9007

FITTING-ADAPTER

$94.99

$

Usually ships in 3-6 days

0

25

Toro 1-323142

NUT-PUSH

$2.99

$

In Stock, only 2 left!

0
