22537 - Toro Hydraulic Angle for TXL 2000 Compact Utility Loader Hydraulic Angle Assembly Parts Diagram

Hydraulic Angle for TXL 2000 Compact Utility Loader

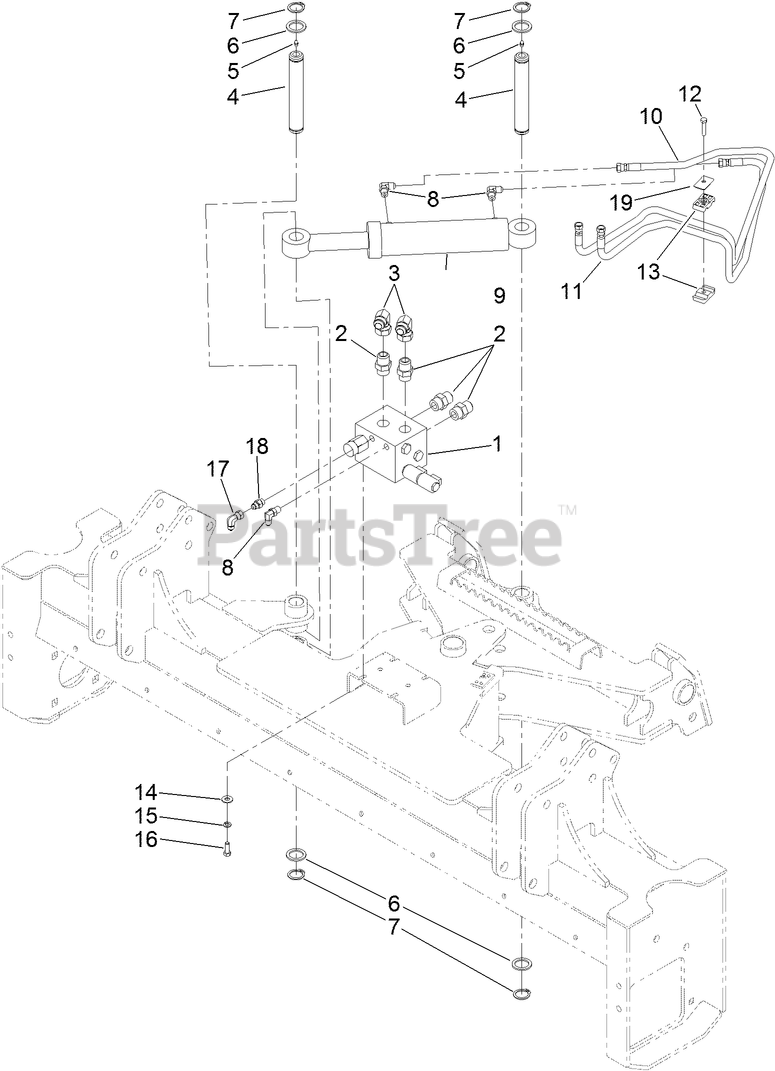

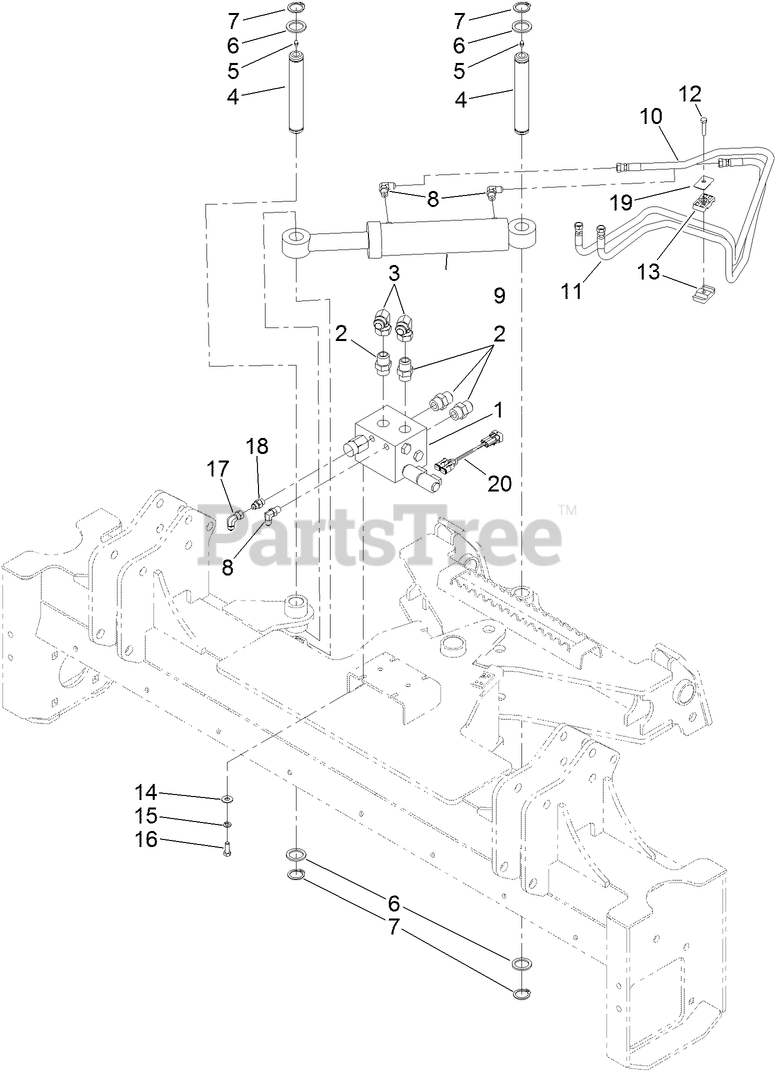

Hydraulic Angle Assembly Parts Diagram

  • Title

1

Toro 137-8978

HYDRAULIC MANIFOLD ASM

$2241.99

$

Usually ships in 3-6 days

0

2

Toro 137-8979

FITTING-ADAPTER

$

$

Currently unavailable

3

Toro AU218-5231

FITTING-ELBOW, 90

$20.99

$

Usually ships in 3-6 days

0

4

Toro 137-3895

PIN-PIVOT

$44.99

$

Usually ships in 3-6 days

0

5

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

6

Toro 137-3897

WASHER

$3.99

$

Usually ships in 3-6 days

0

7

Toro 32151-77

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

8

Toro 137-8977

FITTING-ELBOW

$8.49

$

Usually ships in 3-6 days

0

9

Toro 137-8976

HYDRAULIC CYLINDER ASM

$880.99

$

Usually ships in 3-6 days

0

9:1

Toro 139-1408

SEAL KIT

Note: Not illustrated

$120.99

$

Usually ships in 3-6 days

0

10

Toro 137-8908

HOSE-HYD

$87.99

$

Usually ships in 3-6 days

0

11

Toro 137-8906

HOSE-HYD

$83.99

$

Usually ships in 3-6 days

0

12

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

13

Toro 56-7976

CLAMP-TUBE

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

15

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

16

Toro 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

17

Toro AU218-980

ELBOW-SWIVEL, 90 DEG

$11.99

$

Usually ships in 3-6 days

0

18

Toro HYD13932

FITTING,STRAIGHT,6-MORB X 6-M37JIC

$7.49

$

In Stock, only 1 left!

0

19

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0
