22536 - Toro Power Rake for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Qtach and Caster Wheel Assembly Parts Diagram

Power Rake for TXL 2000 Compact Utility Loader

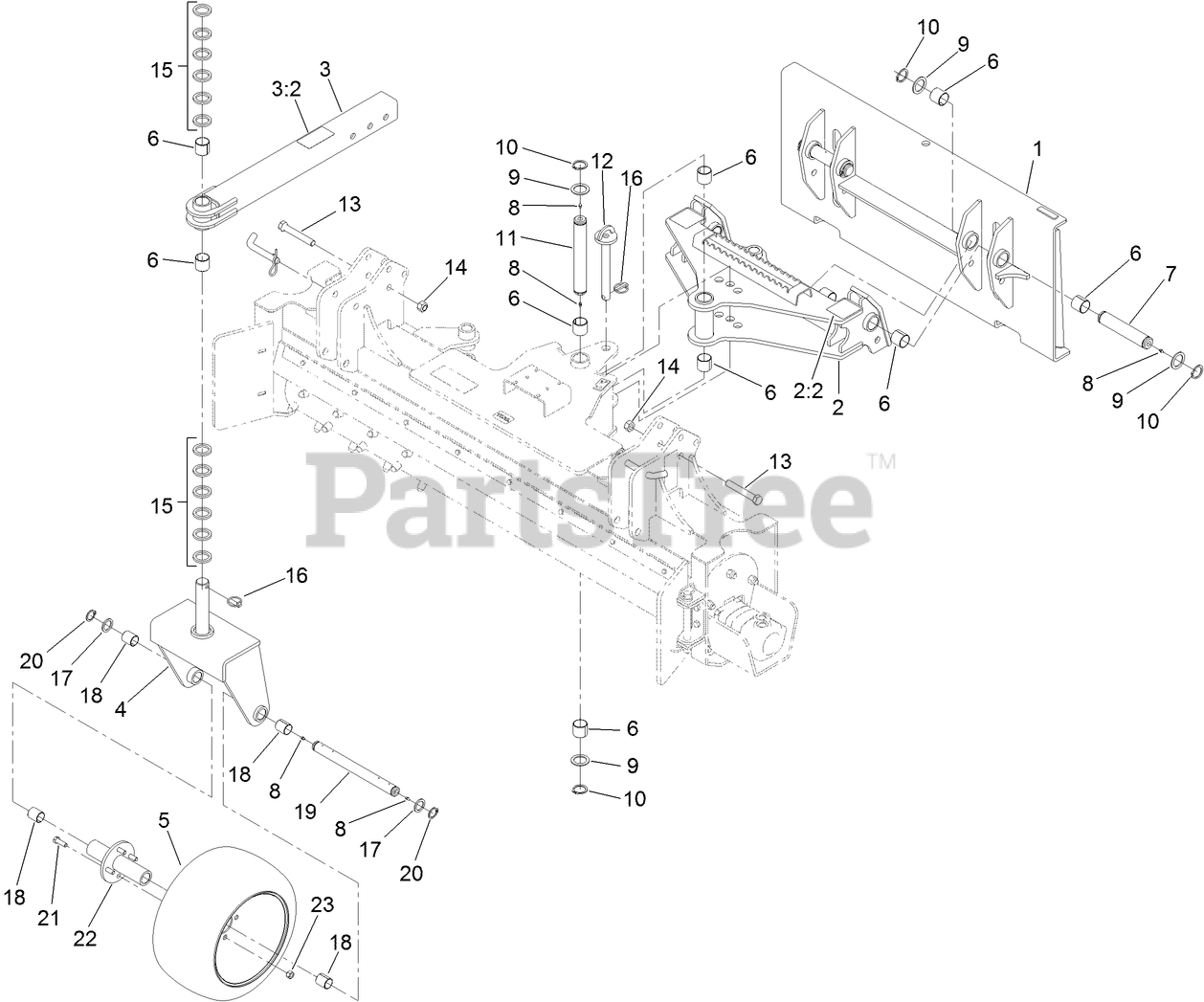

Qtach and Caster Wheel Assembly Parts Diagram

  • Title

1

Toro 137-9023

QTACH-POWER RAKE

$1698.99

$

Usually ships in 3-6 days

0

2

Toro 139-2792

A-FRAME ASM

$1273.99

$

Usually ships in 3-6 days

0

2:2

Toro 125-6107

DECAL-WARNING

$

$

Currently unavailable

3

Toro 139-2790

CASTER ARM ASM

$433.99

$

Usually ships in 3-6 days

0

3:2

Toro 131-0711

DECAL-WARNING, PINCH POINT

$8.99

$

Usually ships in 3-6 days

0

4

Toro 137-9033

FORK-CASTER

$467.99

$

Usually ships in 3-6 days

0

5

Toro 137-9035

CASTER WHEEL ASM

$1132.99

$

Usually ships in 3-6 days

0

6

Toro 137-4897

BUSHING

$17.99

$

Usually ships in 3-6 days

0

7

Toro 137-9043

PIN-PIVOT

$78.99

$

Usually ships in 3-6 days

0

8

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

9

Toro 137-4898

WASHER

$7.49

$

Usually ships in 3-6 days

0

10

Toro 137-8900

RING-SNAP, EXTERNAL

$7.49

$

Usually ships in 3-6 days

0

11

Toro 137-4894

PIN-HINGE

$91.99

$

Usually ships in 3-6 days

0

12

Toro 137-9046

PIN-ANGLE

$69.99

$

Usually ships in 3-6 days

0

13

Toro 328-9

SCREW-HH

$22.99

$

In Stock, only 1 left!

0

14

Toro 120-7252

NUT-LOCK

$3.99

$

Usually ships in 3-6 days

0

15

Toro 137-9042

SPACER

$1.49

$

Usually ships in 3-6 days

0

16

Toro 283-71

PIN-LYNCH

$5.99

$

In Stock, Qty 5

0

17

Toro 110-8195

WASHER-STEERING

$31.99

$

Usually ships in 3-6 days

0

18

Toro 137-4896

BUSHING

$12.99

$

Usually ships in 3-6 days

0

19

Toro 137-9047

PIN-CASTER

$39.99

$

Usually ships in 3-6 days

0

20

Toro 32151-77

RING-RETAINING, EXTERNAL

$5.49

$

Usually ships in 3-6 days

0

21

Toro 137-9048

SCREW

$2.49

$

Usually ships in 3-6 days

0

22

Toro 137-9034

HUB-CASTER

$200.99

$

Usually ships in 3-6 days

0

23

Toro 92-7483

NUT-LUG

$3.49

$

Usually ships in 3-6 days

0
