22535 - Toro Grapple for TXL 2000 Compact Utility Loader (SN: 318000001 - 318999999) (2018) Grapple Assembly Parts Diagram

Grapple for TXL 2000 Compact Utility Loader

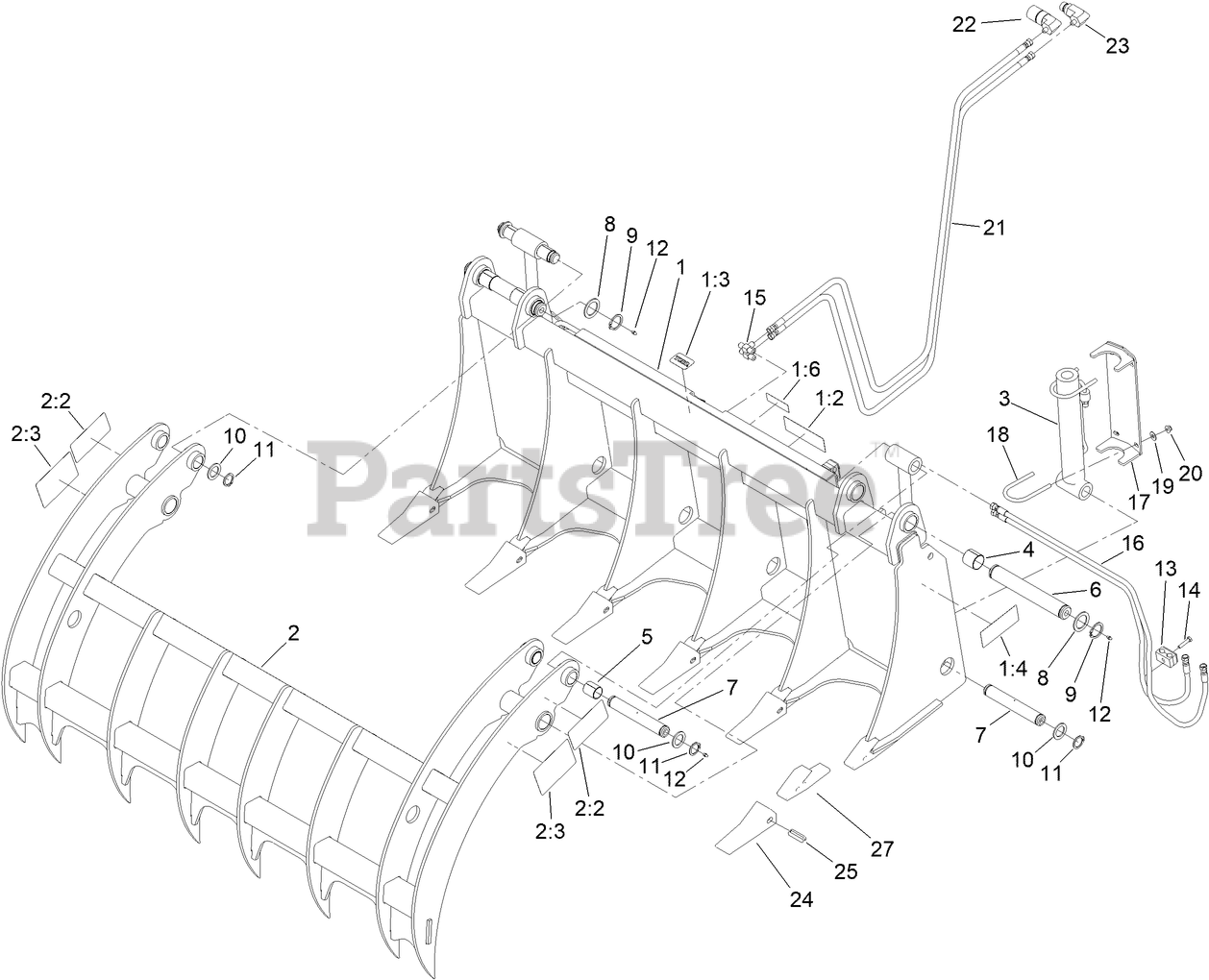

Grapple Assembly Parts Diagram

  • Title
1

Toro 139-2774

BUCKET FRAME ASM

$3991.99

$

Usually ships in 3-6 days

0

1:2

Toro 139-2842

DECAL-CAPACITY

$2.49

$

Usually ships in 3-6 days

0

1:3

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

1:4

Toro 125-6128

DECAL-WARNING

$

$

Currently unavailable

2

Toro 139-2775

JAW ASM

$2137.99

$

Usually ships in 3-6 days

0

2:2

Toro 138-0544

DECAL-DANGER, CRUSH

$5.49

$

Usually ships in 3-6 days

0

2:3

Toro 138-0537

DECAL-DANGER, GRAPPLE

$

$

Currently unavailable

3

Toro 137-8990

HYDRAULIC CYLINDER ASM

$1181.99

$

Usually ships in 3-6 days

0

3:1

Toro 139-1401

SEAL KIT

Note: Not illustrated

$235.99

$

Usually ships in 3-6 days

0

4

Toro 137-4897

BUSHING

$16.99

$

Usually ships in 3-6 days

0

5

Toro 137-4896

BUSHING

$11.99

$

Usually ships in 3-6 days

0

6

Toro 137-4894

PIN-HINGE

$86.99

$

Usually ships in 3-6 days

0

7

Toro 137-3895

PIN-PIVOT

$44.99

$

Usually ships in 3-6 days

0

8

Toro 137-4898

WASHER

$6.99

$

Usually ships in 3-6 days

0

9

Toro 137-8900

RING-SNAP, EXTERNAL

$7.49

$

Usually ships in 3-6 days

0

10

Toro 137-3897

WASHER

$3.99

$

Usually ships in 3-6 days

0

11

Toro 32151-77

RING-RETAINING, EXTERNAL

$4.99

$

Usually ships in 3-6 days

0

12

Toro 137-9002

FITTING-ZERK

$0.99

$

Usually ships in 3-6 days

0

13

Toro 137-8904

CLAMP-HOSE

$12.99

$

Usually ships in 3-6 days

0

14

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 137-8912

FITTING-TEE

$11.99

$

Usually ships in 3-6 days

0

16

Toro 139-1379

HOSE-HYD

$82.99

$

Usually ships in 3-6 days

0

17

Toro 138-1365

GUARD-CYLINDER

$118.99

$

Usually ships in 3-6 days

0

18

Toro 138-1366

U-LINK

$15.99

$

Usually ships in 3-6 days

0

19

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

20

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

21

Toro 138-5199

HOSE-HYD

$186.99

$

Usually ships in 3-6 days

0

22

Toro 137-8914

FITTING-ELBOW

$186.99

$

Usually ships in 3-6 days

0

23

Toro 137-8915

FITTING-ELBOW

$146.99

$

Usually ships in 3-6 days

0

24

Toro 137-4893

TOOTH-CAST

$32.99

$

Usually ships in 3-6 days

0

25

Toro 137-4899

PIN-FLEX

$11.99

$

Usually ships in 3-6 days

0
