22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) Frame Assembly Parts Diagram

Dingo Compact Utility Loader

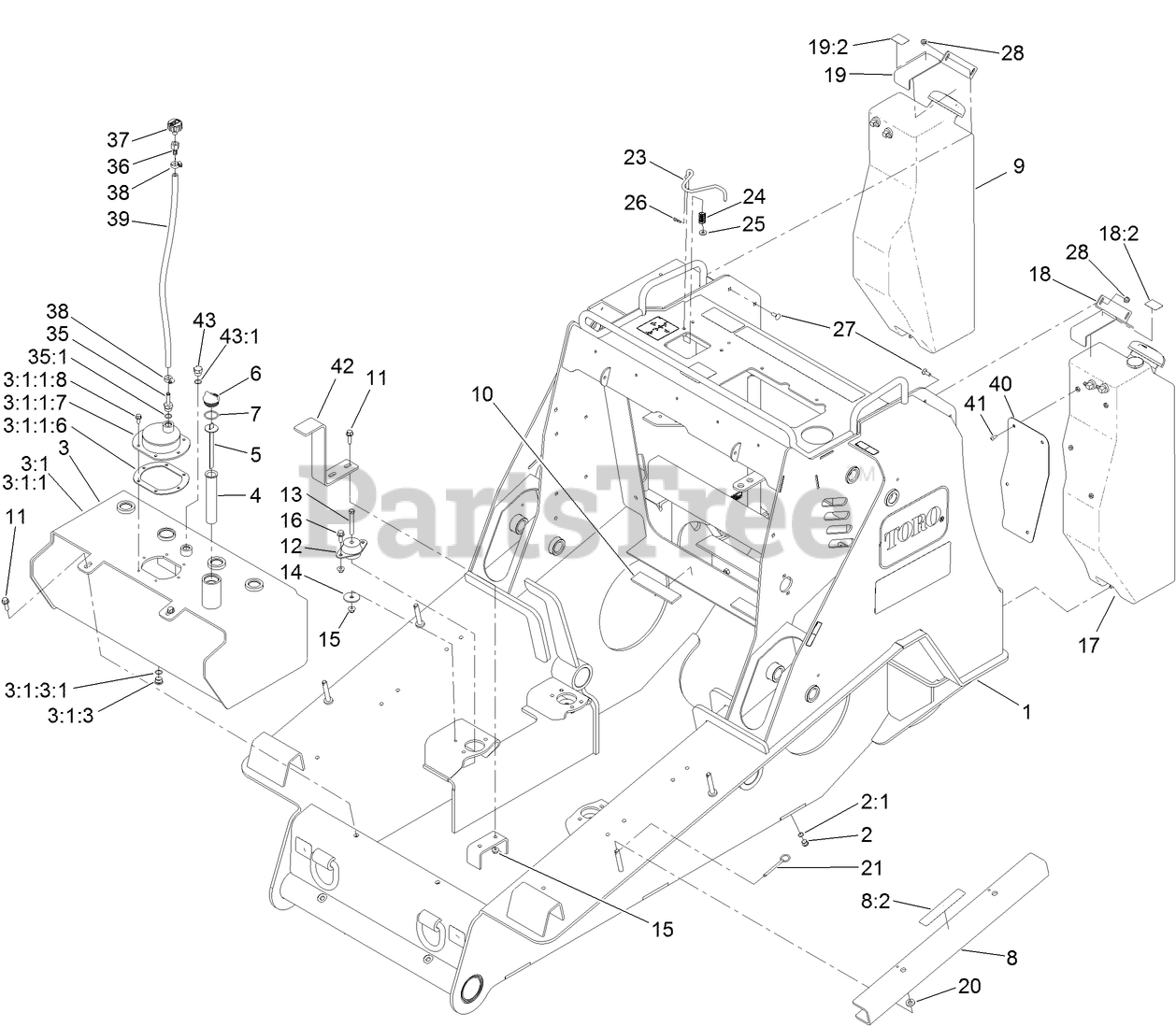

Frame Assembly Parts Diagram

  • Title

1

Toro 138-4723

FRAME ASM

$18661.99

$

Usually ships in 3-6 days

0

2

Toro 353-989

PLUG-HEX, HOLLOW

$23.99

$

Usually ships in 3-6 days

0

2:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 19

0

3

Toro 131-9336-03

HYD TANK ASM

$2797.99

$

Usually ships in 3-6 days

0

3:1

TANK-HYD

Note: Not serviced separately

$

$

Not available

3:1:1

TANK-HYD, TOP

Note: Not serviced separately

$

$

Not available

3:1:1:6

Toro 107-3557

GASKET-COVER, ACCESS

$61.99

$

Usually ships in 3-6 days

0

3:1:1:7

Toro 138-2342

COVER-ACCESS

$

$

Currently unavailable

3:1:1:8

Toro 98-9940

SCREW-HHF

$2.49

$

In Stock, only 3 left!

0

3:1:3

Toro 353-988

PLUG-HEX

$15.99

$

Usually ships in 3-6 days

0

3:1:3:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

4

Toro 61-2790

FILTER-SCREEN

$

$

Not available

5

Toro 130-7686

DIPSTICK

$28.99

$

Usually ships in 3-6 days

0

6

Toro 93-7498

PLUG-PLASTIC

$27.99

$

In Stock, only 3 left!

0

7

Toro 237-123

O-RING
(Superseded to 237-101)

$3.49

$

In Stock, only 1 left!

0

8

Toro 138-4724

ARM-LOCKING

$135.99

$

Usually ships in 3-6 days

0

8:2

Toro 115-4858

DECAL-DANGER

$10.99

$

Usually ships in 3-6 days

0

9

Toro 133-6814

RH FUEL TANK ASM

$508.99

$

Usually ships in 3-6 days

0

10

Toro 112-2401

PAD-RUBBER

$10.99

$

Usually ships in 3-6 days

0

11

Toro 3234-24

SCREW-HHF

$3.99

$

In Stock, Qty 6

0

12

Toro 136-4885

MOUNT-ENGINE

$50.99

$

Usually ships in 3-6 days

0

13

Toro 323-14

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

14

Toro 63-7400

WASHER-REBOUND

$3.49

$

In Stock, Qty 20+

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

16

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

17

Toro 133-6991

LH FUEL TANK ASM

$703.99

$

Usually ships in 3-6 days

0

18

Toro 138-4725

BRACKET-TANK, LH
(Superseded to 137-0379-03)

$51.99

$

Usually ships in 3-6 days

0

18:2

Toro 130-2845

DECAL-ULTRA LOW SULFUR DIESEL

$1.99

$

Usually ships in 3-6 days

0

19

Toro 138-4726

BRACKET-TANK, RH

$

$

Not available

19:2

Toro 130-2845

DECAL-ULTRA LOW SULFUR DIESEL

$1.99

$

Usually ships in 3-6 days

0

20

Toro 83-1470

WASHER-NEOPRENE

$3.49

$

Usually ships in 3-6 days

0

21

Toro 136-6125

PIN-RING

$16.99

$

Usually ships in 3-6 days

0

23

Toro 137-0428

ROD-INTERLOCK

$63.99

$

Usually ships in 3-6 days

0

24

Toro 85-6750

SPRING-CONTROL

$10.99

$

Usually ships in 3-6 days

0

25

Toro 88-7200

WASHER-FLAT

$3.49

$

Usually ships in 3-6 days

0

26

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

27

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

28

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 115-2231

FITTING-STR

$18.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

36

Toro 354-94

FITTING-FEMALE, BARBED

$13.99

$

In Stock, only 2 left!

0

37

Toro 68-6150

BREATHER

$28.99

$

In Stock, only 3 left!

0

38

Toro 2412-36

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

39

Toro 114-0832

HOSE-FUEL

$22.99

$

Usually ships in 3-6 days

0

40

Toro 138-4721-03

PLATE-GUARD, TANK

$55.99

$

Usually ships in 3-6 days

0

41

Toro 3274-31

SCREW-HSBH

$1.49

$

In Stock, only 3 left!

0

42

Toro 138-2337-03

STRAP-HOLD DOWN

$64.99

$

Usually ships in 3-6 days

0

43

Toro 353-550

PLUG-HYD, HH

$18.99

$

Usually ships in 3-6 days

0

43:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0
