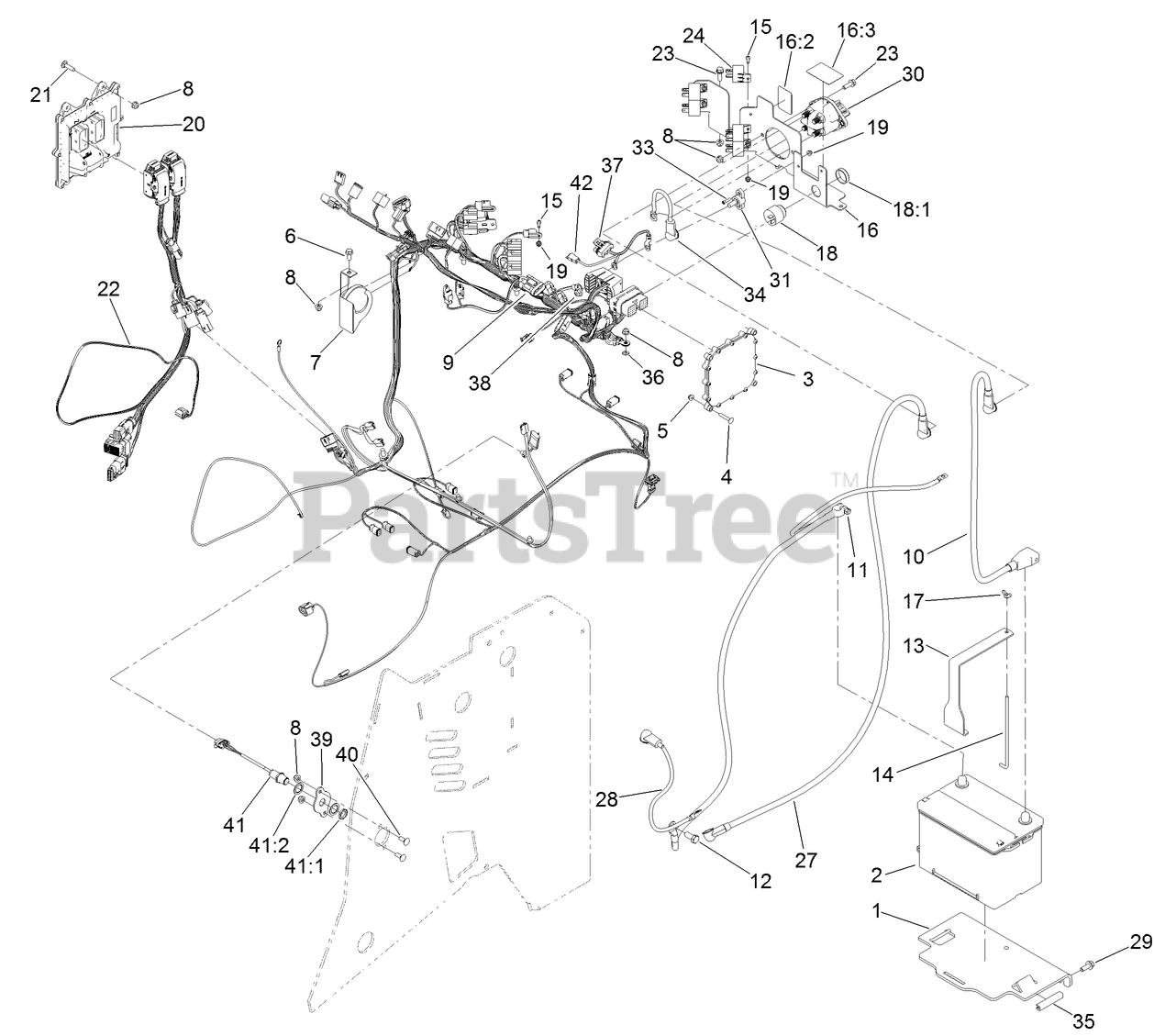

22531 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 400000000 - 405539999) Electrical Assembly Parts Diagram

Dingo Compact Utility Loader

Electrical Assembly Parts Diagram

  • Title

1

Toro 137-0374-03

BRACKET-BATTERY

$118.99

$

Usually ships in 3-6 days

0

2

Toro 106-5190

BATTERY

$

$

Not available

3

Toro 127-2770

CONTROLLER

$1625.99

$

Usually ships in 3-6 days

0

4

Toro 3229-4

SCREW-CARR

$1.49

$

In Stock, only 2 left!

0

5

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

6

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

7

Toro 116749

Horn And Bracket Assembly (Inc. Ref.# 44 45)

$140.99

$

Usually ships in 3-6 days

0

8

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 133-6871

HARNESS-WIRE

$2739.99

$

Usually ships in 3-6 days

0

10

Toro 136-6090

CABLE-BATTERY, POSITIVE

$114.99

$

Usually ships in 3-6 days

0

11

Toro 136-6091

CABLE-BATTERY, NEGATIVE

$179.99

$

Usually ships in 3-6 days

0

12

Toro AU514-842

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

13

Toro 133-9422-03

PLATE-HOLD, BATTERY

$46.99

$

Usually ships in 3-6 days

0

14

Toro 130-5220

ROD-HOLD DOWN, BATTERY

$14.99

$

Usually ships in 3-6 days

0

15

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

16

Toro 138-4737

BRACKET-COMPONENTS, ELECTRICAL

$131.99

$

Usually ships in 3-6 days

0

16:2

Toro 137-7164

DECAL-BATTERY POWER

$20.99

$

Usually ships in 3-6 days

0

16:3

Toro 139-1206

DECAL-FUSES

$9.49

$

Usually ships in 3-6 days

0

17

Toro 1-803038

NUT-WING

$1.49

$

Usually ships in 3-6 days

0

18

Toro 80-9330

AUDIO ALARM ASM

$146.99

$

Usually ships in 3-6 days

0

18:1

Toro 104-5107

NUT-PLASTIC, KNURLED

$5.99

$

Usually ships in 3-6 days

0

19

Toro 120-4578

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

20

Toro 136-4739

ECU-ENGINE

$7206.99

$

Usually ships in 3-6 days

0

21

Toro 3230-3

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

22

Toro 136-4753

HARNESS-ENGINE

$2439.99

$

Usually ships in 3-6 days

0

22:9

Toro 32180-043

RESISTOR-120 OHM

Note: Not illustrated

$29.99

$

Usually ships in 3-6 days

0

22:19

Toro 32180-101

COVER-FUSE, SINGLE

Note: Not illustrated

$14.99

$

Usually ships in 3-6 days

0

22:20

Toro 121-8864

FUSE-MINI BLADE, 5 AMP

Note: Not illustrated

$5.49

$

Usually ships in 3-6 days

0

23

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

24

Toro 99-7435

RELAY

$49.99

$

In Stock, only 2 left!

0

27

Toro 136-4754

CABLE-BATTERY, POSITIVE

$147.99

$

Usually ships in 3-6 days

0

28

Toro 136-4816

CABLE-BATTERY, POSITIVE

$29.99

$

Usually ships in 3-6 days

0

29

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

30

Toro 122-0603

SWITCH-DISCONNECT

$274.99

$

Usually ships in 3-6 days

0

31

Toro 110-8822

BLOCK-JUNCTION

$61.99

$

Usually ships in 3-6 days

0

33

Toro 3274-14

SCREW-HSH

$0.99

$

Usually ships in 3-6 days

0

34

Toro 137-0525

CABLE-BATTERY, POSITIVE

$27.99

$

Usually ships in 3-6 days

0

35

Toro 70-2041

TRIM

$5.99

$

Usually ships in 3-6 days

0

36

Toro 3255-8

WASHER-LOCK

$0.99

$

In Stock, Qty 5

0

37

Toro 122-0084

HARNESS-WIRE, FUSIBLE LINK

$582.99

$

Usually ships in 3-6 days

0

38

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

39

Toro 138-4709

PLATE-MOUNT, SENSOR

$9.99

$

Usually ships in 3-6 days

0

40

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

41

Toro 115-5300

PROXIMITY SWITCH ASM

$152.99

$

In Stock, Qty 12

0

41:1

Toro 117-3207

NUT-HEX

$20.99

$

In Stock, only 2 left!

0

41:2

Toro 117-3208

WASHER-LOCK, INTERNAL TOOTH

$11.99

$

In Stock, only 4 left!

0

42

Toro 136-4862

HARNESS-WIRE, FUSIBLE LINK

$24.99

$

Usually ships in 3-6 days

0
