22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 411800000 - 412699999) Lift Valve and Pump Assembly Parts Diagram

Dingo Compact Utility Loader

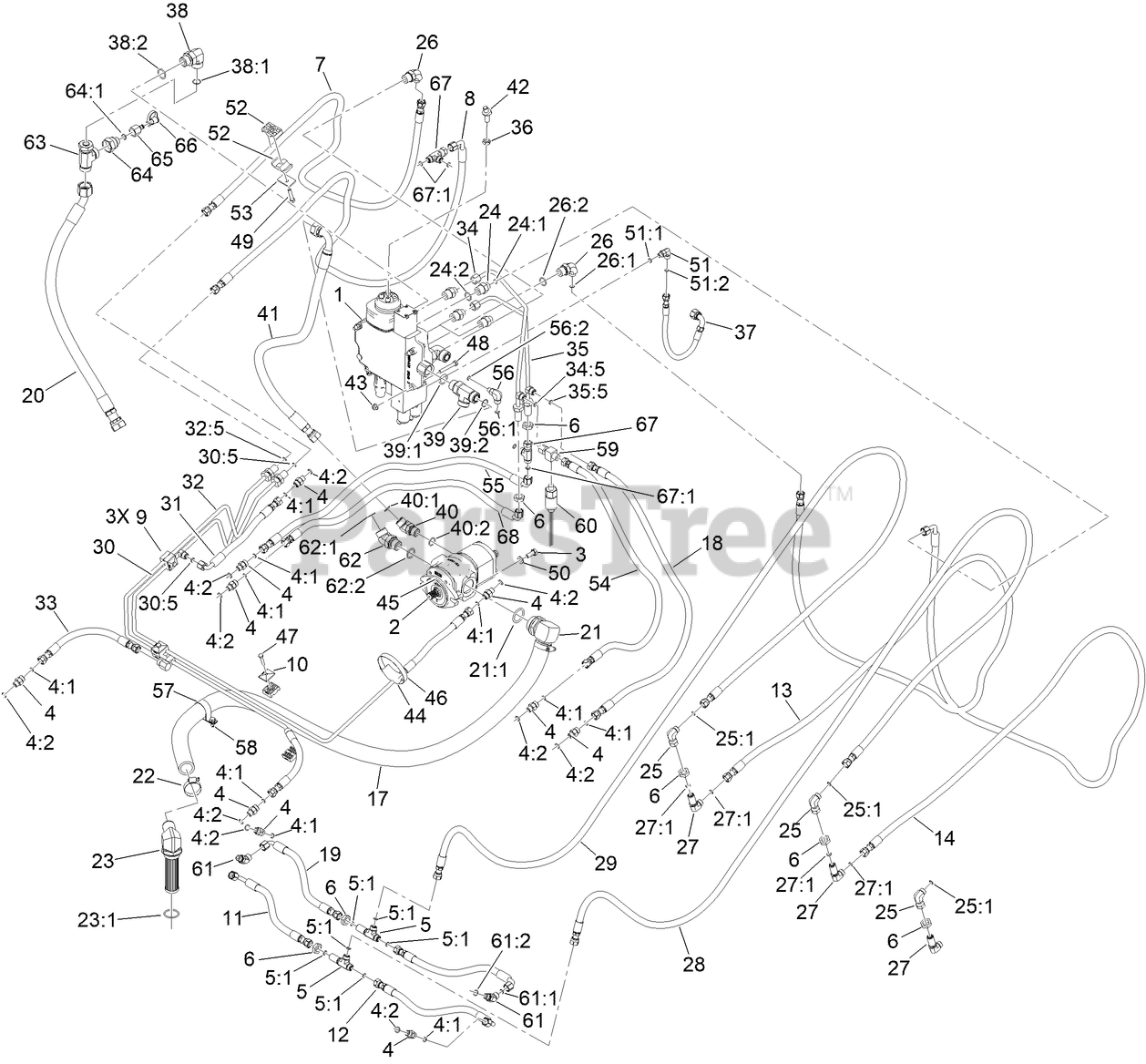

Lift Valve and Pump Assembly Parts Diagram

  • Title

1

Toro 133-6911

LIFT VALVE ASM

$5285.99

$

Usually ships in 3-6 days

0

2

Toro 133-0281

GEAR PUMP ASM

$1775.99

$

Usually ships in 3-6 days

0

3

Toro 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0

4

Toro 340-2

FITTING-STRAIGHT

$12.99

$

In Stock, only 2 left!

0

4:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

4:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

5

Toro 340-68

FITTING-TEE, BULKHEAD

$52.99

$

In Stock, only 2 left!

0

5:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

6

Toro 340-70

NUT-LOCK

$2.99

$

In Stock, only 1 left!

0

7

Toro 133-9356

HYD HOSE ASM

$99.99

$

Usually ships in 3-6 days

0

8

Toro 133-9357

HYD HOSE ASM

$125.99

$

Usually ships in 3-6 days

0

9

Toro 137-5275

CLAMP-HOSE

$7.49

$

Usually ships in 3-6 days

0

10

Toro 127-8424

PLATE-CLAMP, RETAINER

$2.99

$

Usually ships in 3-6 days

0

11

Toro 139-1150

HYD HOSE ASM

$70.99

$

Usually ships in 3-6 days

0

12

Toro 139-1151

HYD HOSE ASM

$73.99

$

Usually ships in 3-6 days

0

13

Toro 133-1629

HYD HOSE ASM

$138.99

$

Usually ships in 3-6 days

0

14

Toro 133-1630

HYD HOSE ASM

$162.99

$

Usually ships in 3-6 days

0

17

Toro 133-9377

HOSE

$192.99

$

Usually ships in 3-6 days

0

18

Toro 133-9372

HYD HOSE ASM

$80.99

$

Usually ships in 3-6 days

0

19

Toro 139-1152

HYD HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

20

Toro 139-1204

HYD HOSE ASM

$169.99

$

Usually ships in 3-6 days

0

21

Toro 92-7526

FITTING-HYD 90 SPCL

$194.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-101

O-RING

$3.49

$

In Stock, only 1 left!

0

22

Toro 2412-111

CLAMP

$4.99

$

Usually ships in 3-6 days

0

23

Toro 145-0622

STRAINER FITTING ASM

$156.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-101

O-RING

$3.49

$

In Stock, only 1 left!

0

24

Toro 340-141

FITTING-STR

$34.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

24:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

25

Toro 340-159

FITTING-HYD, 90 DEG

$66.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

26

Toro 340-130

FITTING-ELBOW 90

$135.99

$

Usually ships in 3-6 days

0

26:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

26:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

27

Toro 340-154

UNION-BULKHEAD

$64.99

$

Usually ships in 3-6 days

0

27:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

28

Toro 133-9412

HYD HOSE ASM

$158.99

$

Usually ships in 3-6 days

0

29

Toro 133-9413

HYD HOSE ASM

$160.99

$

Usually ships in 3-6 days

0

30

Toro 137-0143

HYD TUBE ASM

$239.99

$

Usually ships in 3-6 days

0

30:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

31

Toro 133-1619

HYD HOSE ASM

$69.99

$

Usually ships in 3-6 days

0

32

Toro 137-0142

HYD TUBE ASM

$343.99

$

Usually ships in 3-6 days

0

32:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

33

Toro 133-1617

HYD HOSE ASM

$56.99

$

Usually ships in 3-6 days

0

34

Toro 136-6080

HYD TUBE ASM

$92.99

$

Usually ships in 3-6 days

0

34:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

35

Toro 136-6081

HYD TUBE ASM

$93.99

$

Usually ships in 3-6 days

0

35:5

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

36

Toro 51-2070

NUT

$0.99

$

Usually ships in 3-6 days

0

37

Toro 137-0117

HYD HOSE ASM

$74.99

$

Usually ships in 3-6 days

0

38

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

38:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

38:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

39

Toro 340-148

FITTING-TEE

$270.99

$

Usually ships in 3-6 days

0

39:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

39:2

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

40

Toro 340-14

FITTING-HYD, 45 DEG

$51.99

$

Usually ships in 3-6 days

0

40:1

Toro 237-65

O-RING

$2.99

$

In Stock, only 4 left!

0

40:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 19

0

41

Toro 138-0233

HYD HOSE ASM

$127.99

$

Usually ships in 3-6 days

0

42

Toro 138-2343

SHAFT-CONTROL

$116.99

$

Usually ships in 3-6 days

0

43

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

44

Toro 137-0146

BLOCK-HARDLINE

$28.99

$

Usually ships in 3-6 days

0

45

Toro 237-161

O-RING

$8.99

$

In Stock, only 1 left!

0

46

Toro 2412-110

CLAMP-BAND/SCREW

$5.99

$

Usually ships in 3-6 days

0

47

Toro 321-13

SCREW-HH

$4.99

$

In Stock, Qty 10

0

48

Toro 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

49

Toro 322-8

SCREW-HH

$3.49

$

In Stock, Qty 6

0

50

Toro 33095-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

51

Toro 340-132

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

51:1

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

51:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 10

0

52

Toro 56-7971

CLAMP-TUBE

$26.99

$

Usually ships in 3-6 days

0

53

Toro 69-9760

COVERPLATE

$7.49

$

Usually ships in 3-6 days

0

54

Toro 140-6003

HYD HOSE ASM

$61.99

$

Usually ships in 3-6 days

0

55

Toro 138-4701

HYD HOSE ASM

$95.99

$

Usually ships in 3-6 days

0

56

Toro 340-97

FITTING-ELBOW, 90 DEG

$43.99

$

Usually ships in 3-6 days

0

56:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

56:2

Toro 237-78

O-RING

$4.49

$

Usually ships in 3-6 days

0

57

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

58

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

59

Toro 95-5658

FITTING-HYD, SPECIAL

$599.99

$

Usually ships in 3-6 days

0

59:1

Toro 237-22

O-RING

Note: Not illustrated

$2.99

$

In Stock, Qty 14

0

60

Toro 139-4848

SWITCH-PRESSURE,

$788.99

$

Usually ships in 3-6 days

0

61

Toro 340-87

FITTING-ELBOW, 45 DEG

$20.99

$

Usually ships in 3-6 days

0

61:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

61:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

62

Toro 100-5530

FITTING-45 DEG

$159.99

$

Usually ships in 3-6 days

0

62:1

Toro 237-58

O-RING

$3.49

$

Usually ships in 3-6 days

0

62:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

63

Toro ST50975

FITTING-HYD

$37.99

$

Usually ships in 3-6 days

0

64

Toro 95-3513

FITTING-STRAIGHT

$15.99

$

Usually ships in 3-6 days

0

64:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 14

0

65

Toro 100-5616

FITTING

$82.99

$

Usually ships in 3-6 days

0

66

Toro 354-79

CAP-DUST

$9.99

$

Usually ships in 3-6 days

0

67

Toro 340-115

FITTING-TEE, SWIVEL NUT

$67.99

$

Usually ships in 3-6 days

0

67:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

68

Toro 140-6004

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

0
