22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 410150000 - 411799999) Track Mount Assembly Parts Diagram

Dingo Compact Utility Loader

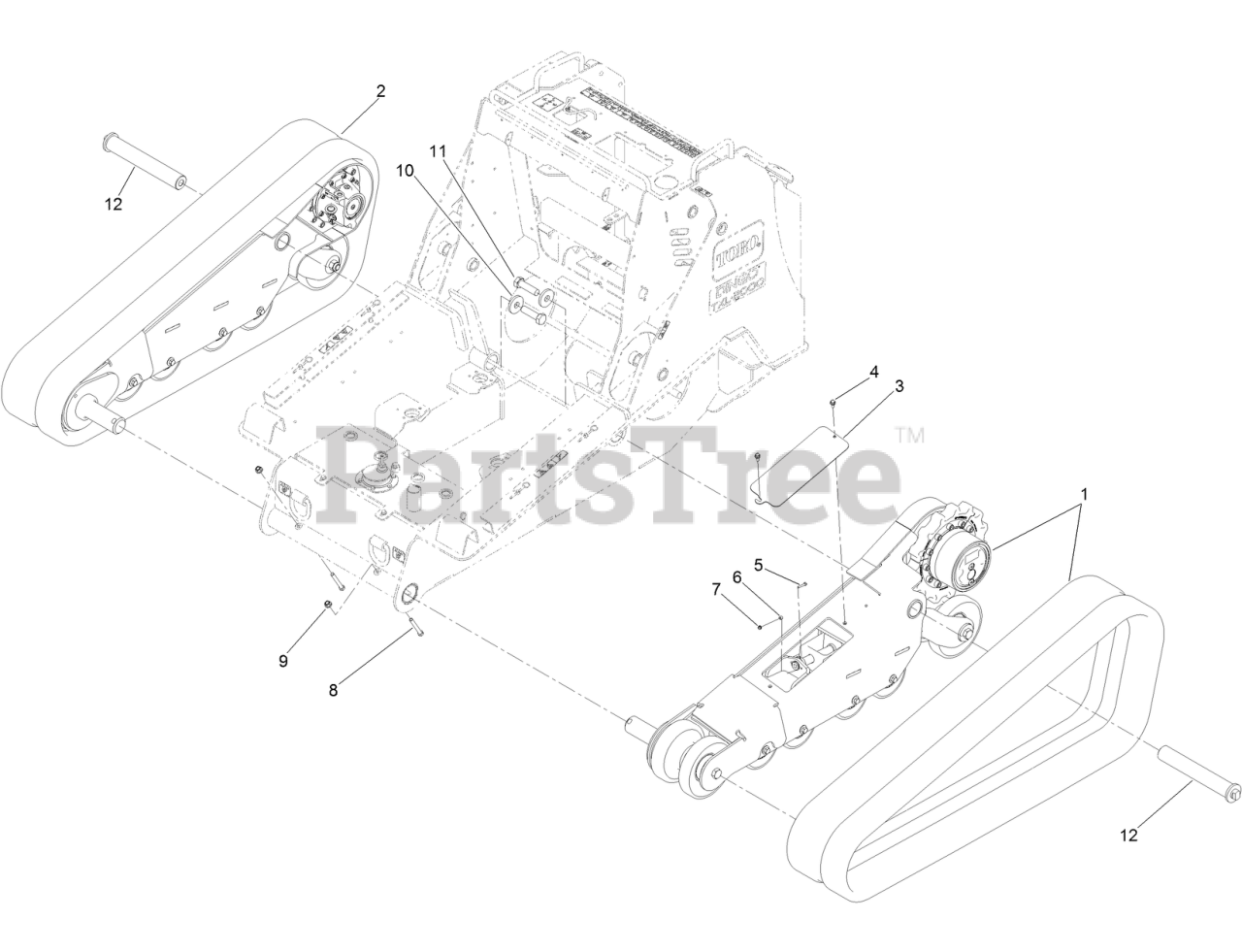

Track Mount Assembly Parts Diagram

  • Title

1

LH TRACK ASM

Note: Not serviced separately

$

$

Not available

2

RH TRACK ASM

Note: Not serviced separately

$

$

Not available

3

Toro 137-0513-03

COVER

$53.99

$

Usually ships in 3-6 days

0

4

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 20+

0

5

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

6

Toro 98-4799

SPACER

$7.99

$

In Stock, only 4 left!

0

7

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, only 4 left!

0

8

Toro 116-3114

BOLT-TAP

$15.99

$

Usually ships in 3-6 days

0

9

Toro 99-5107

NUT-LOCK

$1.99

$

In Stock, Qty 20+

0

10

Toro 133-0287

WASHER-WHEEL

$11.99

$

Usually ships in 3-6 days

0

11

Toro AU426-1656

SCREW-CAP, HH

$17.99

$

Usually ships in 3-6 days

0

12

Toro 138-2308

SHAFT-MOUNT, REAR

$389.99

$

Usually ships in 3-6 days

0
