22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 410150000 - 411799999) Auxiliary Hydraulic Assembly Parts Diagram

Dingo Compact Utility Loader

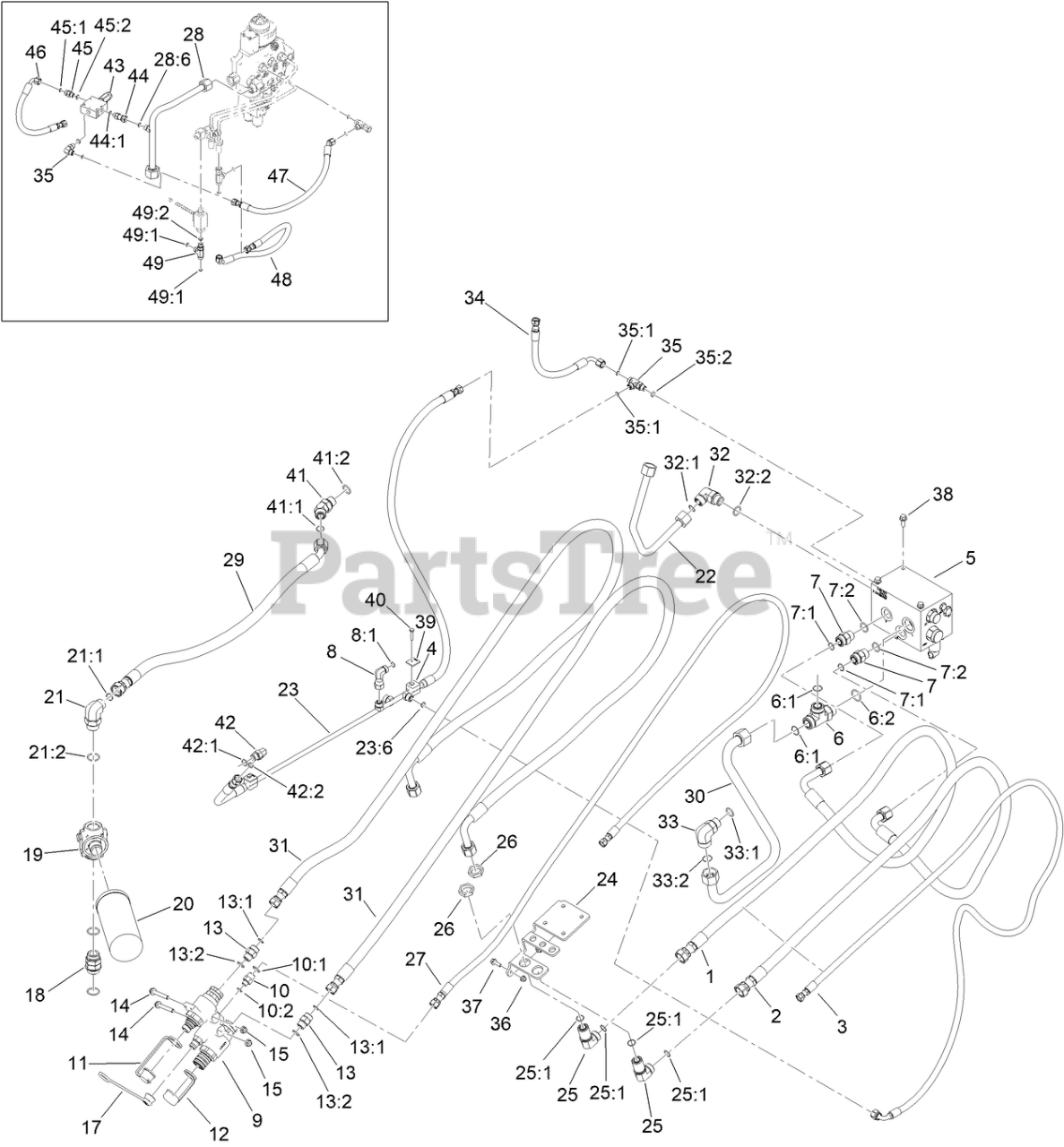

Auxiliary Hydraulic Assembly Parts Diagram

  • Title

1

Toro 133-1631

HYD HOSE ASM

$277.99

$

Usually ships in 3-6 days

0

2

Toro 133-1632

HYD HOSE ASM

$260.99

$

Usually ships in 3-6 days

0

3

Toro 133-9354

HYD HOSE ASM

$156.99

$

Usually ships in 3-6 days

0

4

Toro 138-4696

CLAMP-TUBE

$5.49

$

Usually ships in 3-6 days

0

5

Toro 136-4872

AUX MANIFOLD ASM

$2955.99

$

Usually ships in 3-6 days

0

6

Toro 104-3795

FITTING-TEE

$231.99

$

Usually ships in 3-6 days

0

6:1

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

6:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

7

Toro 340-9

FITTING-HYD, STRAIGHT

$97.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

7:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

8

Toro 94-6031

FITTING-HYD

$81.99

$

Usually ships in 3-6 days

0

8:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

9

Toro 150-2410

MANIFOLD-QDC

$654.99

$

Usually ships in 3-6 days

0

10

Toro 340-5

FITTING-STRAIGHT

$22.99

$

Usually ships in 3-6 days

0

10:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

10:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

11

Toro 100-8815

CAP-DUST, NIPPLE

$15.99

$

Usually ships in 3-6 days

0

12

Toro 100-8816

CAP-DUST, COUPLER

$15.99

$

Usually ships in 3-6 days

0

13

Toro 340-7

FITTING-STRAIGHT

$14.99

$

In Stock, Qty 13

0

13:1

Toro 237-65

O-RING

$2.99

$

In Stock, Qty 20+

0

13:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

14

Toro 133-9682

SCREW-HFH

$1.49

$

Usually ships in 3-6 days

0

15

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

17

Toro 131-6069

CAP-DUST, NIPPLE

$13.99

$

Usually ships in 3-6 days

0

18

Toro 133-9400

FITTING-STRAIGHT

$39.99

$

Usually ships in 3-6 days

0

19

Toro 121-1577

HEAD-FILTER

$176.99

$

Usually ships in 3-6 days

0

20

Toro 94-2621

ELEMENT-FILTER

$89.99

$

In Stock, only 1 left!

0

21

Toro 340-15

FITTING-ELBOW 90

$77.99

$

Usually ships in 3-6 days

0

21:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

21:2

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

22

Toro 137-0124

HYD TUBE ASM

$89.99

$

Usually ships in 3-6 days

0

23

Toro 137-0125

HYD TUBE ASM

$283.99

$

Usually ships in 3-6 days

0

23:6

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

24

Toro 133-9408-03

MOUNT-CARRIER

$95.99

$

Usually ships in 3-6 days

0

25

Toro 133-9407

FITTING-ELBOW 90

$38.99

$

Usually ships in 3-6 days

0

25:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

26

Toro 340-126

NUT-BULKHEAD

$7.49

$

Usually ships in 3-6 days

0

27

Toro 145-4387

HYD HOSE ASM

$141.99

$

Usually ships in 3-6 days

0

28

Toro 137-0123

HYD TUBE ASM

$122.99

$

Usually ships in 3-6 days

0

28:6

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

29

Toro 133-9391

HYD HOSE ASM

$153.99

$

Usually ships in 3-6 days

0

30

Toro 136-6079

HYDRAULIC TUBE ASM

$166.99

$

Usually ships in 3-6 days

0

31

Toro 145-4386

HYD HOSE ASM

$228.99

$

Usually ships in 3-6 days

0

32

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

32:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

33

Toro 104-3796

FITTING-ELBOW 90

$163.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

33:2

Toro 340-65

O-RING

$5.49

$

In Stock, Qty 6

0

34

Toro 138-0169

HYD HOSE ASM

$62.99

$

Usually ships in 3-6 days

0

35

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

35

Toro 340-86

FITTING-TEE

$47.99

$

Usually ships in 3-6 days

0

35:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

35:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

35:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

35:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

36

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

37

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

38

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

39

Toro 137-0128

PLATE-CLAMP,TUBE

$2.49

$

Usually ships in 3-6 days

0

40

Toro 321-8

SCREW-HH

$3.99

$

In Stock, Qty 18

0

41

Toro 100-5530

FITTING-45 DEG

$159.99

$

Usually ships in 3-6 days

0

41:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

41:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

42

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

42:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

42:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

43

Toro 139-4856

VALVE-SEQUENCE

$396.99

$

Usually ships in 3-6 days

0

44

Toro 104-3779

CONNECTOR-SWIVEL, STRAIGHT

$30.99

$

Usually ships in 3-6 days

0

44:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

45

Toro 114-7783

FITTING-STRAIGHT

$67.99

$

Usually ships in 3-6 days

0

45:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

45:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

46

Toro 104-2240

HOSE ASM

$161.99

$

Usually ships in 3-6 days

0

47

Toro 98-7416

HOSE-HYD

$193.99

$

Usually ships in 3-6 days

0

48

Toro 120-6572

HOSE-HYD

$123.99

$

Usually ships in 3-6 days

0

49

Toro 340-86

FITTING-TEE

$47.99

$

Usually ships in 3-6 days

0

49:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

49:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0
