22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 406500000 - 410149999) Loader Arm Assembly Parts Diagram

Dingo Compact Utility Loader

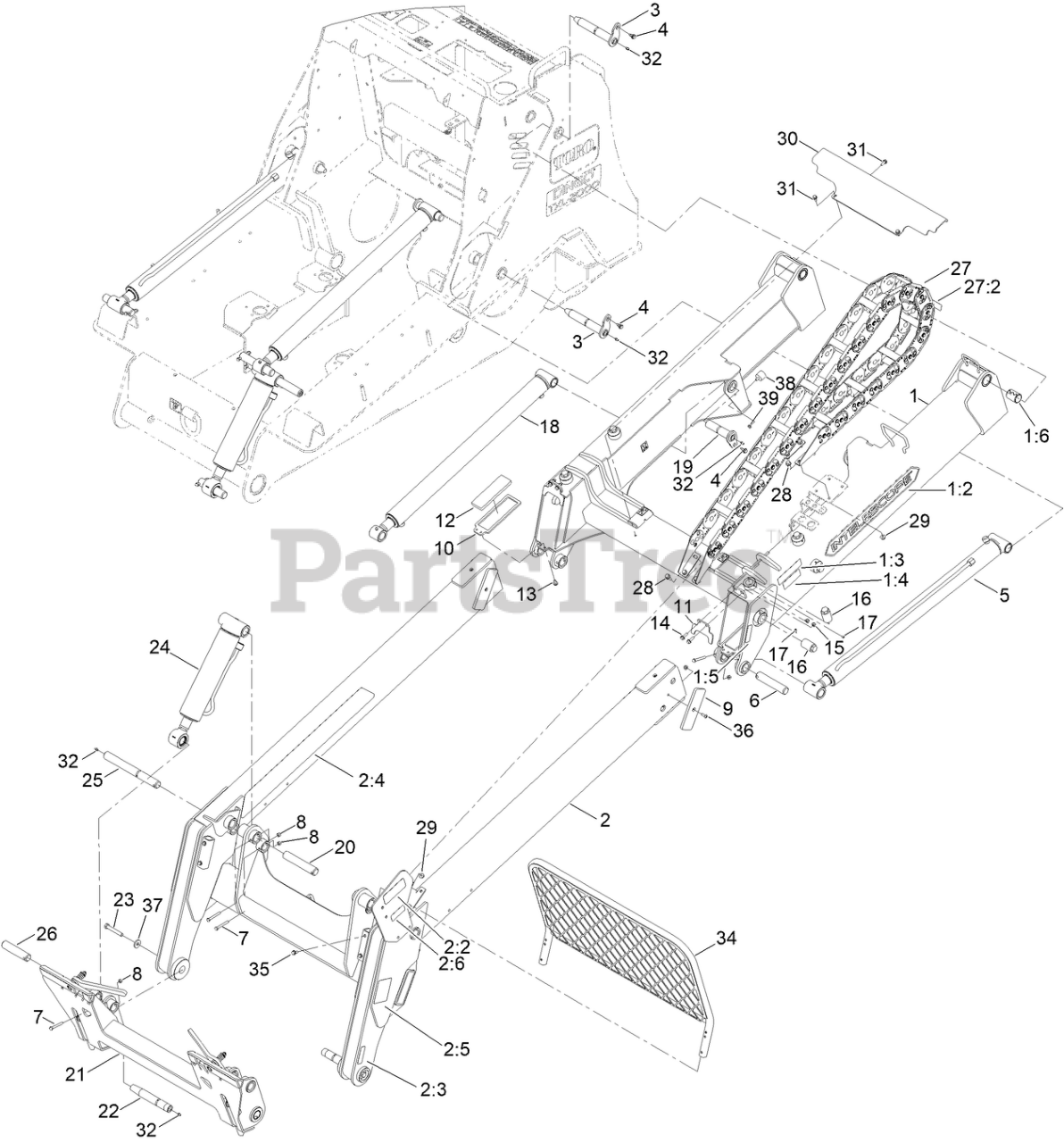

Loader Arm Assembly Parts Diagram

  • Title

1

Toro 138-4730

UPPER LOADER ARM ASM

$6179.99

$

Usually ships in 3-6 days

0

1:2

Toro 139-5711

DECAL-INTELESCOPE

$22.99

$

Usually ships in 3-6 days

0

1:3

Toro 139-1158

DECAL-WARNING, CRUSHING

$7.49

$

Usually ships in 3-6 days

0

1:4

Toro 139-1159

DECAL-WARNING, BYSTANDERS

$11.99

$

Usually ships in 3-6 days

0

1:5

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

1:6

Toro 137-0126

BUSHING-SPRING

$29.99

$

Usually ships in 3-6 days

0

2

Toro 138-4731

LOWER LOADER ARM ASM

$5790.99

$

Usually ships in 3-6 days

0

2:2

Toro 115-4855

DECAL-CAUTION

$10.99

$

Usually ships in 3-6 days

0

2:3

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

2:4

Toro 137-5409

DECAL-EXTENSION

$42.99

$

Usually ships in 3-6 days

0

2:5

Toro 139-1164

DECAL-WARNING, BUCKET

$13.99

$

Usually ships in 3-6 days

0

2:6

Toro 139-1173

DECAL-WARNING, HYD PRESSURE

$5.49

$

Usually ships in 3-6 days

0

3

Toro 137-0132

PIVOT PIN ASM

$111.99

$

Usually ships in 3-6 days

0

4

Toro 99-5105

BOLT-SHOULDER

$6.49

$

In Stock, Qty 5

0

5

Toro 139-5718

CYL-HYD

$1445.99

$

Usually ships in 3-6 days

0

6

Toro 139-7121

PIN-LINK

$58.99

$

Usually ships in 3-6 days

0

7

Toro 322-12

SCREW-HH
(Superseded to 32136-4)

$2.49

$

In Stock, Qty 10

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 137-5443

STRIP-SLIDE, SNAP

$31.99

$

Usually ships in 3-6 days

0

10

Toro 137-0096-03

RETAINER-PAD

$

$

Currently unavailable

11

Toro 132-1681-03

RETAINER-WEAR,PAD,LEFT

$12.99

$

Usually ships in 3-6 days

0

12

Toro 132-8480

STRIP-SLIDE,LOWER

$17.99

$

Usually ships in 3-6 days

0

13

Toro 32144-14

SCREW-HWHTF

$4.99

$

In Stock, only 3 left!

0

14

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 14

0

15

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

16

Toro 132-8479

SCREW-SLIDE,ADJUSTMENT

$35.99

$

Usually ships in 3-6 days

0

17

Toro 3245-2

SCREW-SET, HSH

$3.49

$

Usually ships in 3-6 days

0

18

Toro 139-5719

CYL-HYD

$1100.99

$

Usually ships in 3-6 days

0

19

Toro 137-0134

FLAG PIN ASM

$102.99

$

Usually ships in 3-6 days

0

20

Toro 132-8429

PIN-LINK

$64.99

$

Usually ships in 3-6 days

0

21

Toro 132-8468

QTACH ASM

$2975.99

$

Usually ships in 3-6 days

0

22

Toro 139-5731

PIN-LINK, TAPER

$144.99

$

Usually ships in 3-6 days

0

23

Toro 112-7264

SCREW-HH

$8.99

$

In Stock, only 2 left!

0

24

Toro 139-5717

CYL-HYD

$1233.99

$

Usually ships in 3-6 days

0

25

Toro 132-8445

PIN-LINK

$144.99

$

Usually ships in 3-6 days

0

26

Toro 139-5739

PIN-LINK

$73.99

$

Usually ships in 3-6 days

0

27

Toro 138-4733

CARRIER-HOSE

$2799.99

$

Usually ships in 3-6 days

0

27:2

Toro 120-0625

DECAL-WARNING, PINCH POINT

$4.49

$

Usually ships in 3-6 days

0

28

Toro 3234-11

SCREW-HHF

$4.49

$

In Stock, Qty 20+

0

29

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

30

Toro 137-0137-03

PLATE-GUARD

$136.99

$

Usually ships in 3-6 days

0

31

Toro 32104-32

SCREW-HWH

$2.49

$

In Stock, only 3 left!

0

32

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 20+

0

34

Toro 139-1195-03

SCREEN-DEBRIS

$812.99

$

Usually ships in 3-6 days

0

35

Toro 3234-5

SCREW-HHF

$1.49

$

In Stock, Qty 5

0

36

Toro 3274-32

SCREW-HSBH

$5.49

$

Usually ships in 3-6 days

0

37

Toro 110-6147

WASHER-FLAT

$7.49

$

In Stock, only 2 left!

0

38

Toro 137-4803

BUMPER-RUBBER

$4.49

$

Usually ships in 3-6 days

0

39

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0
