22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 405540000 - 406499999) Water Pump Assembly Parts Diagram

Dingo Compact Utility Loader

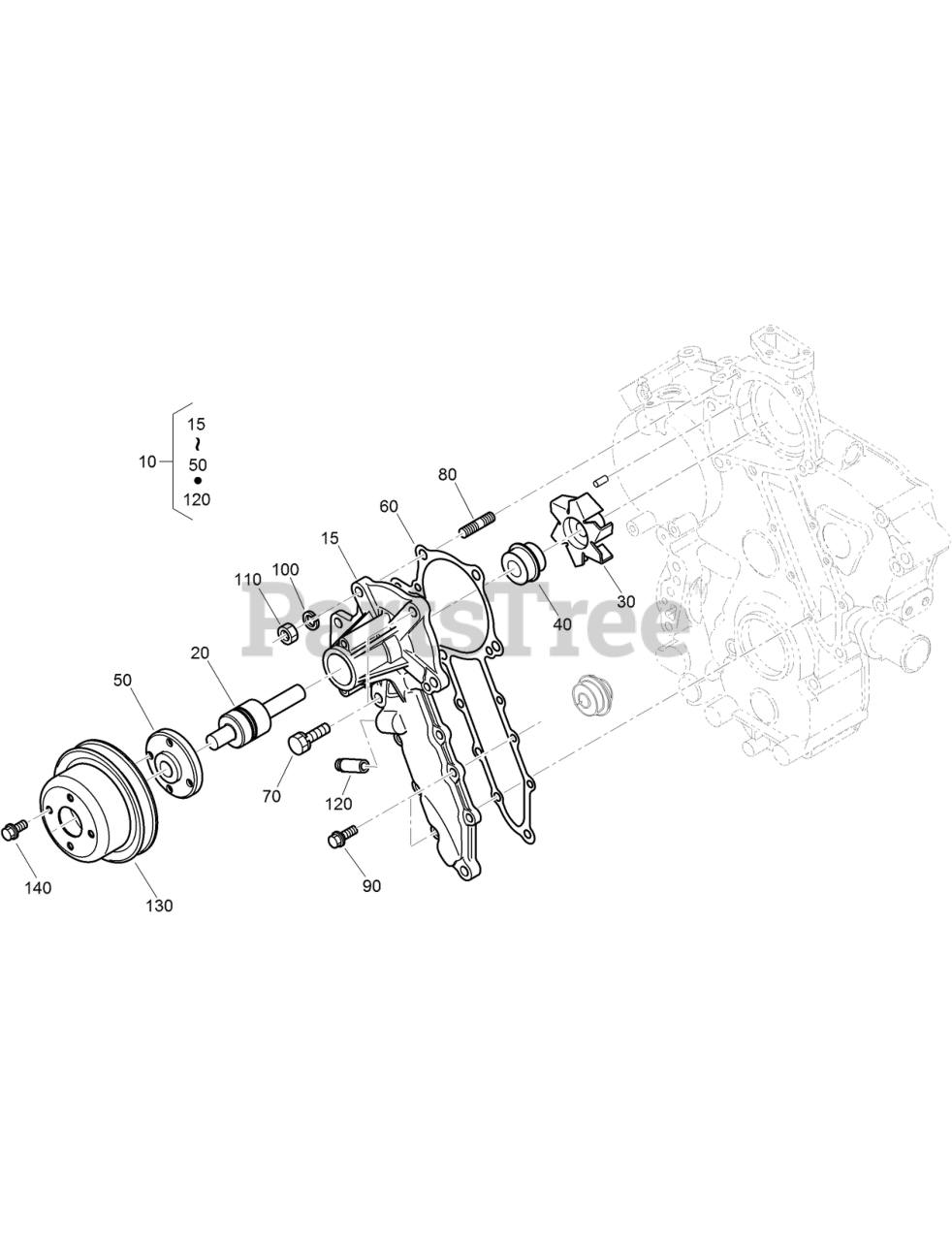

Water Pump Assembly Parts Diagram

  • Title

10

Toro 139-9636

WATER PUMP ASM

$

$

Currently unavailable

15

Toro 130-1421

BODY-PUMP, WATER

$202.99

$

Usually ships in 3-6 days

0

20

Toro 139-9560

BEARING

$

$

Currently unavailable

30

Toro 139-9599

IMPELLER

$

$

Currently unavailable

40

Toro 139-9640

MECHANICAL SEAL ASM

$77.99

$

Usually ships in 3-6 days

0

50

Toro 108-7089

FLANGE-SHAFT, WATER PUMP

$146.99

$

Usually ships in 3-6 days

0

60

Toro 139-9605

GASKET-PUMP, WATER

$

$

Currently unavailable

70

Toro 98-7439

BOLT

$1.99

$

Usually ships in 3-6 days

0

80

Toro 108-7090

STUD

$1.99

$

Usually ships in 3-6 days

0

90

Toro 127-0403

BOLT-FLANGE

$5.99

$

Usually ships in 3-6 days

0

100

Toro 131-9579

WASHER-SPRING, LOCK

$

$

Currently unavailable

110

Toro 98-7534

NUT

$0.99

$

Usually ships in 3-6 days

0

120

Toro 98-9580

PIPE-RETURN, WATER

$6.49

$

Usually ships in 3-6 days

0

130

Toro 139-9579

PULLEY-FAN

$

$

Currently unavailable

140

Toro 100-1774

BOLT-FLANGE

$8.49

$

Usually ships in 3-6 days

0
