22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 405540000 - 406499999) Tandem Pump Assembly Parts Diagram

Dingo Compact Utility Loader

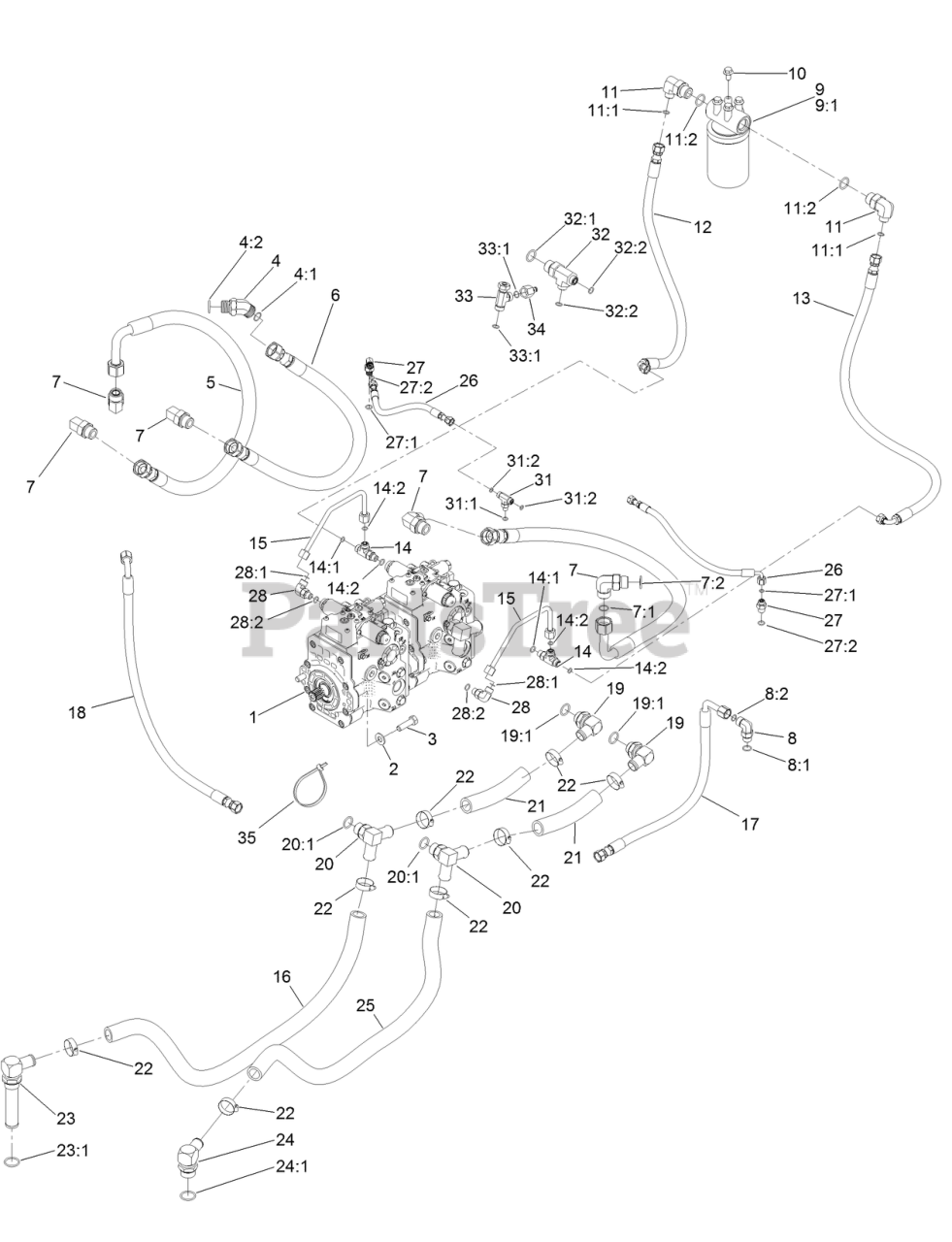

Tandem Pump Assembly Parts Diagram

  • Title

1

Toro 132-8497

HYD PUMP ASM

$12943.99

$

Usually ships in 3-6 days

0

2

Toro 87-7270

WASHER-THRUST

$0.99

$

In Stock, Qty 20+

0

3

Toro 121-1524

SCREW-HH

$3.49

$

Usually ships in 3-6 days

0

4

Toro 100-5530

FITTING-45 DEG

$159.99

$

Usually ships in 3-6 days

0

4:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

4:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

5

Toro 133-9374

HYD HOSE ASM

$210.99

$

Usually ships in 3-6 days

0

6

Toro 133-9373

HYD HOSE ASM

$172.99

$

Usually ships in 3-6 days

0

7

Toro 340-142

FITTING-ELBOW-90

$95.99

$

Usually ships in 3-6 days

0

7:1

Toro 237-58

O-RING

$2.99

$

Usually ships in 3-6 days

0

7:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

8

Toro 340-98

FITTING-ELBOW, 90 DEG

$33.99

$

In Stock, only 2 left!

0

8:1

Toro 237-79

O-RING

$5.99

$

In Stock, only 2 left!

0

8:2

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

9

Toro 93-2242

FILTER-OIL

$394.99

$

Usually ships in 3-6 days

0

9:1

Toro 75-1310

FILTER-HYD

$86.99

$

Usually ships in 3-6 days

0

10

Toro 33105-020

SCREW-HHF

$0.99

$

Usually ships in 3-6 days

0

11

Toro 340-131

FITTING-HYD, 90 DEG

$162.99

$

Usually ships in 3-6 days

0

11:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

11:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

12

Toro 139-1184

HYD HOSE ASM

$99.99

$

Usually ships in 3-6 days

0

13

Toro 133-9385

HYD HOSE ASM

$77.99

$

Usually ships in 3-6 days

0

14

Toro 340-86

FITTING-TEE

$47.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

14:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Toro 133-9389

HYD TUBE ASM

$50.99

$

Usually ships in 3-6 days

0

16

Toro 133-9392

HOSE

$122.99

$

Usually ships in 3-6 days

0

17

Toro 133-9379

HYD HOSE ASM

$87.99

$

Usually ships in 0 days

0

18

Toro 133-9381

HYD HOSE ASM

$67.99

$

Usually ships in 3-6 days

0

19

Toro 100-4202

FITTING-90

$116.99

$

Usually ships in 3-6 days

0

19:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

20

Toro AU375462A1

CONNECTOR

$129.99

$

Usually ships in 3-6 days

0

20:1

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

21

Toro 137-0078

HOSE

$19.99

$

Usually ships in 0 days

0

22

Toro 2412-34

CLAMP-HOSE

$2.49

$

Usually ships in 3-6 days

0

23

Toro 105-0204

STRAINER FITTING ASM

$546.99

$

Usually ships in 3-6 days

0

23:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

24

Toro 23-8910

STEM-BARB-90

$220.99

$

Usually ships in 3-6 days

0

24:1

Toro 237-146

O-RING

$4.99

$

In Stock, Qty 8

0

25

Toro 133-9399

HOSE

$115.99

$

Usually ships in 3-6 days

0

26

Toro 139-5722

HYD HOSE ASM

$53.99

$

Usually ships in 0 days

0

27

Toro 340-82

FITTING-ELBOW, 90 DEG

$24.99

$

In Stock, only 2 left!

0

27:1

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

27:2

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 9

0

28

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

28:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 12

0

28:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

31

Toro 340-125

FITTING-TEE

$86.99

$

Usually ships in 3-6 days

0

31:1

Toro 237-21

O-RING

$0.99

$

In Stock, Qty 9

0

31:2

Toro 237-78

O-RING

$4.49

$

In Stock, only 4 left!

0

32

Toro 117-0676

FITTING-TEE

$63.99

$

Usually ships in 3-6 days

0

32:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

32:2

Toro 237-81

O-RING

$2.99

$

Usually ships in 3-6 days

0

33

Toro 340-104

FITTING-HYD, TEE

$120.99

$

Usually ships in 3-6 days

0

33:1

Toro 237-30

O-RING

$2.99

$

In Stock, Qty 6

0

34

Toro 100-5616

FITTING

$82.99

$

Usually ships in 3-6 days

0

35

Toro 3334-945

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

36

Toro 354-79

CAP-DUST

Note: Not illustrated

$9.99

$

Usually ships in 3-6 days

0
