22530 (TXL 2000) - Toro Dingo Compact Utility Loader (SN: 405540000 - 406499999) Rear Hydraulic Pump Assembly No. 139-4801 Parts Diagram

Dingo Compact Utility Loader

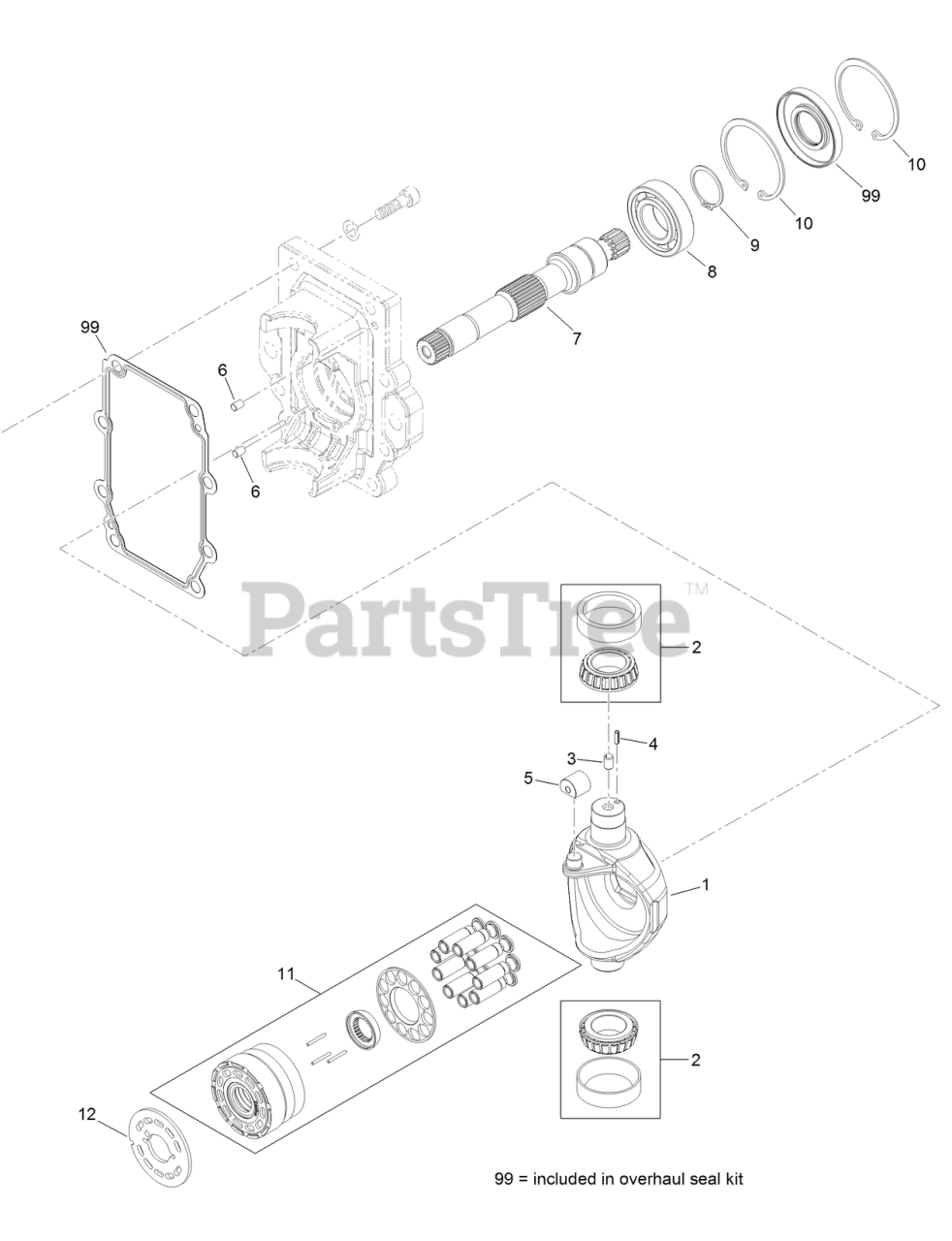

Rear Hydraulic Pump Assembly No. 139-4801 Parts Diagram

  • Title

1

Toro 139-4821

SWASHPLATE

$

$

Not available

2

Toro 139-4815

BEARING-ROLLER

$112.99

$

Usually ships in 3-6 days

0

3

Toro 139-4817

BUSHING

$9.99

$

Usually ships in 3-6 days

0

4

Toro 139-4830

PIN-SLOTTED

$4.99

$

Usually ships in 3-6 days

0

5

Toro 139-4814

BLOCK-SLIDER

$170.99

$

Usually ships in 3-6 days

0

6

Toro 136-1024

PIN

$4.99

$

Usually ships in 3-6 days

0

7

Toro 139-4811

SHAFT-13TOOTH

$475.99

$

Usually ships in 3-6 days

0

8

Toro 139-4820

BEARING-BALL

$289.99

$

Usually ships in 3-6 days

0

9

Toro 139-4806

RING-RETAINING

$5.49

$

Usually ships in 3-6 days

0

10

Toro 139-4831

RING-RETAINING

$12.99

$

Usually ships in 3-6 days

0

11

Toro 139-4823

CYLINDER BLOCK KIT

$2761.99

$

Usually ships in 3-6 days

0

12

Toro 139-4813

PLATE-VALVE

$511.99

$

Usually ships in 3-6 days

0

99

Toro 139-4828

SEAL KIT

$728.99

$

Usually ships in 3-6 days

0
