22521 - Toro Grapple Rake for Dingo Compact Utility Loader (SN: 290000001 - 290999999) (2009) GRAPPLE RAKE ASSEMBLY Parts Diagram

Grapple Rake for Dingo Compact Utility Loader

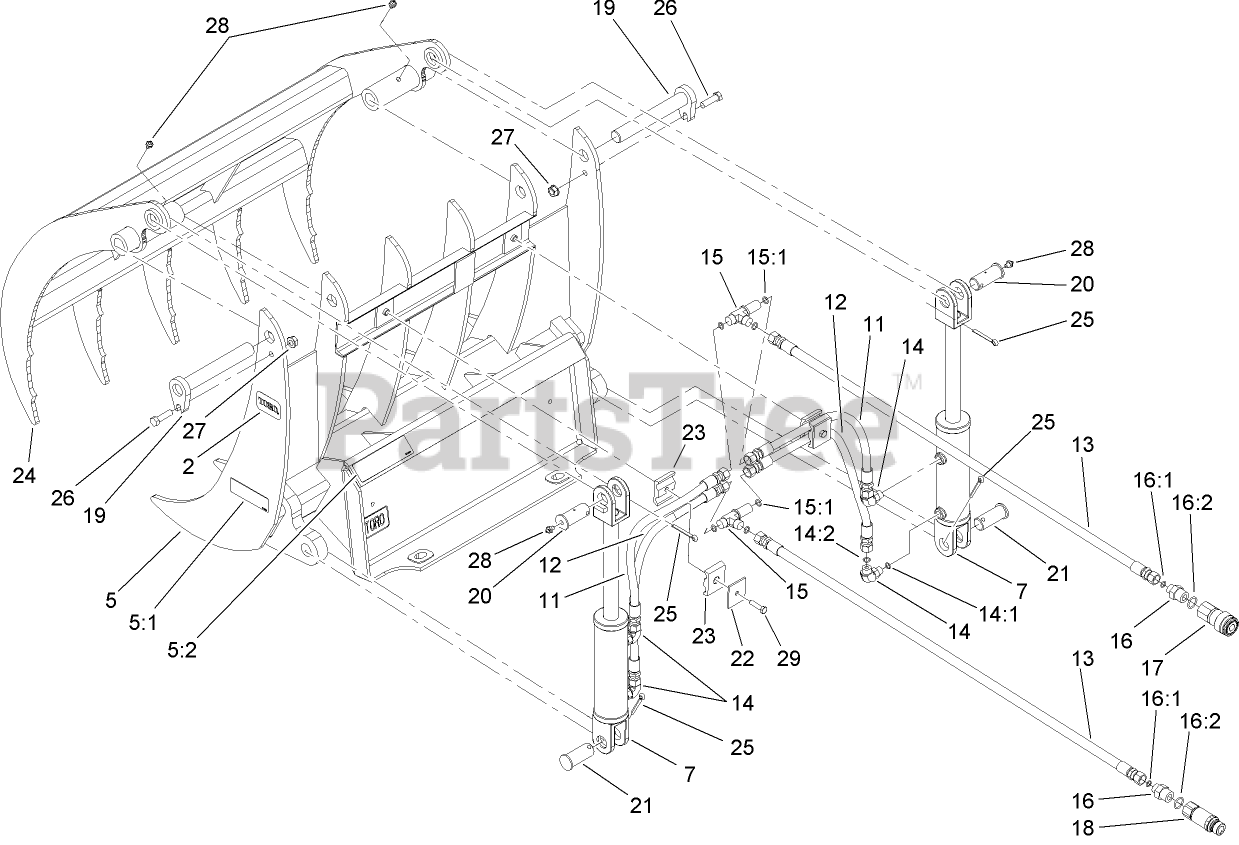

GRAPPLE RAKE ASSEMBLY Parts Diagram

  • Title
2

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

5

Toro 114-1298

BOTTOM GRAPPLE RAKE ASM

$

$

Currently unavailable

5:1

Toro 114-1281

DECAL-WARNING

$16.99

$

Usually ships in 3-6 days

0

5:2

Toro 114-1280

DECAL-CAPACITY

$28.99

$

Usually ships in 3-6 days

0

7

Toro 114-1302

CYLINDER-HYD
(Superseded to 121-4470)

$1328.99

$

Usually ships in 3-6 days

0

11

Toro 114-1309

HOSE ASM-HYD

$129.99

$

Usually ships in 3-6 days

0

12

Toro 114-1310

HOSE ASM-HYD

$143.99

$

Usually ships in 3-6 days

0

13

Toro 114-1311

HOSE ASM-HYD

$202.99

$

Usually ships in 3-6 days

0

14

Toro 340-77

FITTING-ELBOW, 90 DEG

$27.99

$

Usually ships in 3-6 days

0

14:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

14:2

Toro 237-42

O-RING

$3.49

$

In Stock, Qty 20+

0

15

Toro 340-68

FITTING-TEE, BULKHEAD

$52.99

$

In Stock, only 2 left!

0

15:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

16

Toro 340-141

FITTING-HYD, STRAIGHT

$34.99

$

Usually ships in 3-6 days

0

16:1

Toro 237-22

O-RING

$2.99

$

In Stock, Qty 14

0

16:2

Toro 237-80

O-RING

$6.99

$

In Stock, Qty 20+

0

17

Toro 104-6134

COUPLER-FACE, FLUSH

$267.99

$

Usually ships in 3-6 days

0

18

Toro 100-4701

NIPPLE-CONNECT, PRESSURE

$282.99

$

Usually ships in 3-6 days

0

18:1

Toro 100-6120

SEAL KIT (Not illustrated)

$107.99

$

Usually ships in 3-6 days

0

19

Toro 114-1312

PIN-FLAG
(Superseded to 138-7188)

$88.99

$

Usually ships in 3-6 days

0

20

Toro 114-1313

PIN-CYLINDER, GREASEABLE
(Superseded to 140-5307)

$84.99

$

Usually ships in 3-6 days

0

21

Toro 114-1314

PIN-CYLINDER

$

$

Not available

22

Toro 114-1315

GUIDE-HOSE, PLATE
(Superseded to 115-4564)

$41.99

$

Usually ships in 3-6 days

0

23

Toro 114-1316

GUIDE-HOSE, HALF
(Superseded to 115-4564)

$41.99

$

Usually ships in 3-6 days

0

24

Toro 114-1301

TINES-GRAPPLE, TOP
(Superseded to 138-7199-03)

$1700.99

$

Usually ships in 3-6 days

0

25

Toro 3272-33

PIN-COTTER

$0.99

$

Usually ships in 3-6 days

0

26

Toro 324-6

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

27

Toro 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

28

Toro 302-2

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

29

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0
