225113x194A - Briggs & Stratton 22" Walk-Behind Mower (2004) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

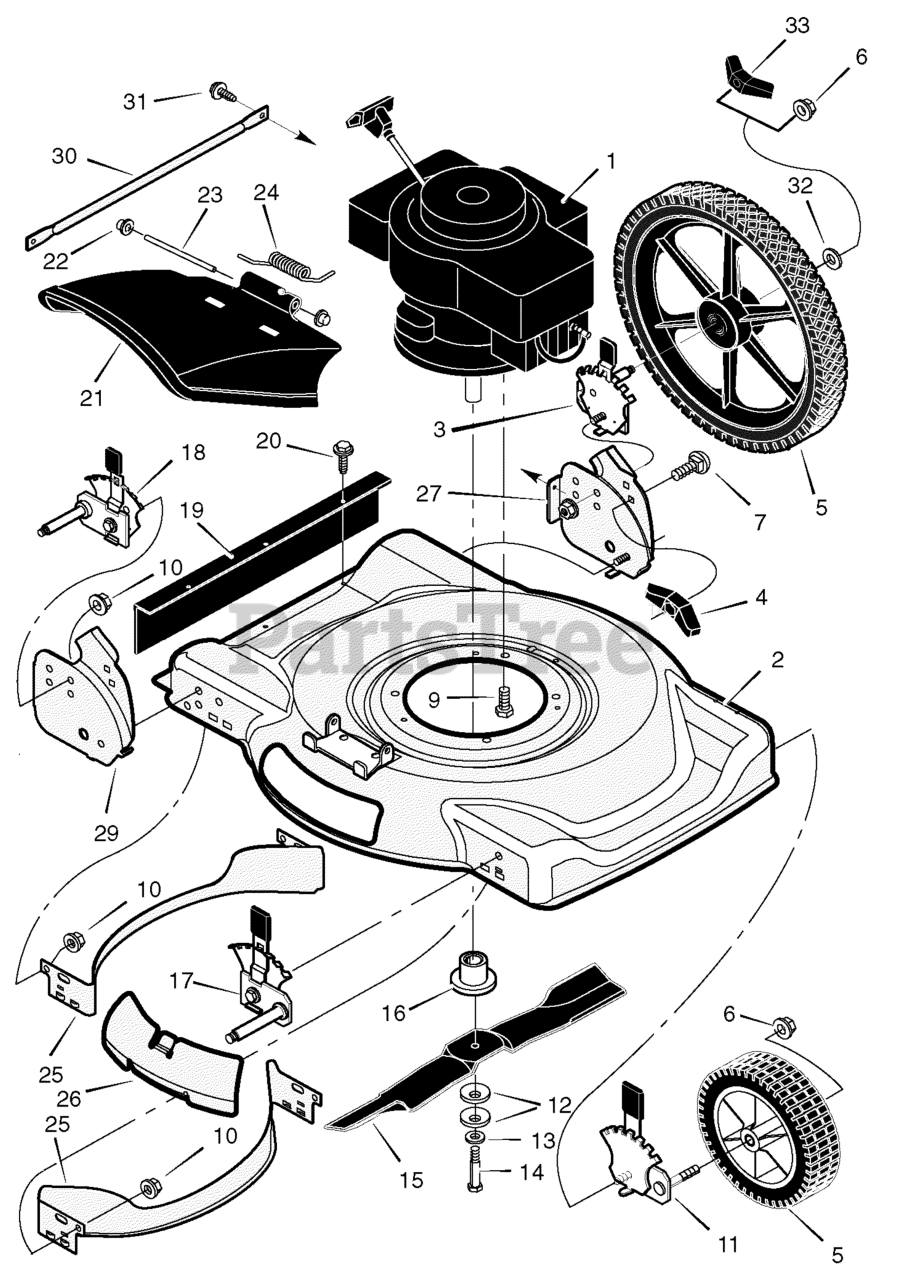

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776024

Housing

$270.99

$

Usually ships in 2-12 days

0

3

Murray 672645

Height Adjuster, Left Rear

$50.99

$

In Stock, only 1 left!

0

4

$

$

Not available

5

Murray 672060

Wheel and Tire

$

$

Not available

6

Murray 015X84

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6

Bolt, Engine
(Superseded to 0025X6MA)

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672601

Height Adjuster, Left Front

$87.99

$

Usually ships in 2-12 days

0

12

Murray 17X137

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124

Washer

$

$

Not available

14

Murray 01X142

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

16

Murray 71056

Adapter, Blade

$

$

Not available

17

Murray 672600

Height Adjuster, Right Front

$82.99

$

In Stock, only 1 left!

0

18

Murray 672644

Height Adjuster, Right Rear

$37.99

$

Usually ships in 2-12 days

0

19

Murray 672738

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, Qty 6

0

21

Murray 672421

Deflector, Chute

$

$

Not available

22

Murray 028X42

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5

Spring

$3.99

$

Usually ships in 2-12 days

0

25

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate, Mulcher

$

$

Currently unavailable

27

Murray 1101305E700

Bracket, Left Handle

$

$

Currently unavailable

29

Murray 1101304E700

Bracket, Right Handle

$

$

Currently unavailable

$5.99

$

Usually ships in 2-12 days

0

31

Murray 26X263

Screw
(Superseded to 26X263MA)

$4.99

$

In Stock, only 1 left!

0

32

$

$

Currently unavailable

33

Murray 672449

Knob, Axle

$5.99

$

Usually ships in 2-12 days

0

--

Murray F-040402L

Book, Instruction

$

$

Currently unavailable
