225110x92NA - Briggs & Stratton 22" Walk-Behind Mower (2003) Mower Housing Assembly Parts Diagram

22" Walk-Behind Mower

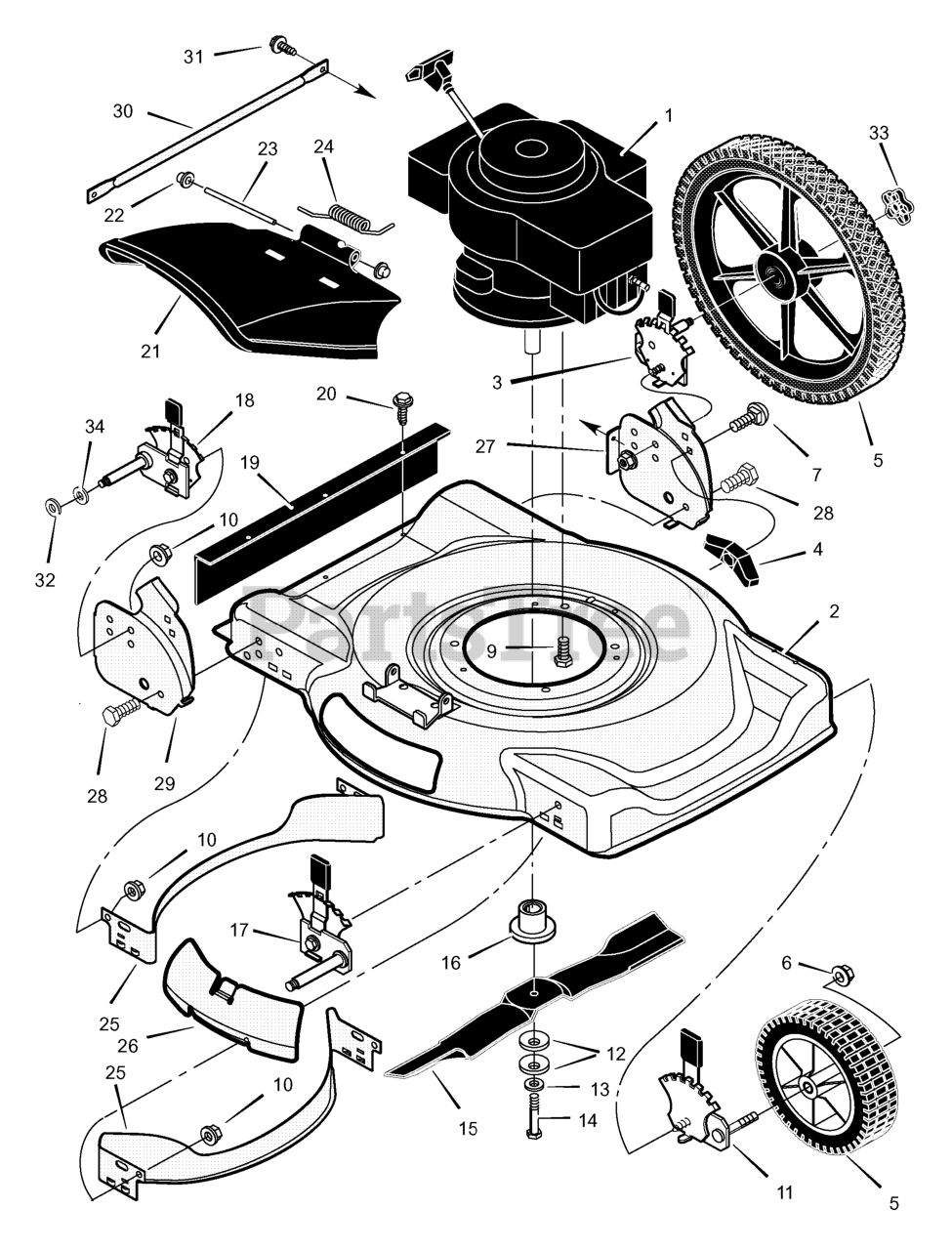

Mower Housing Assembly Parts Diagram

  • Title
1

Engine

$

$

Not available

2

Murray 776024MA

Housing

$270.99

$

Usually ships in 2-12 days

0

3

Murray 672645MA

Height Adjuster, Left Rear

$50.99

$

In Stock, only 1 left!

0

$4.99

$

In Stock, only 3 left!

0

5

Murray 672060MA

Wheel and Tire - Front
(Superseded to 336545MA)

$33.99

$

Usually ships in 2-12 days

0

5

Murray 672074MA

Wheel and Tire - Rear

$

$

Not available

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672601MA

Height Adjuster, Left Front

$87.99

$

Usually ships in 2-12 days

0

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

$

$

Not available

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672600MA

Height Adjuster, Right Front

$82.99

$

In Stock, only 1 left!

0

18

Murray 672644MA

Height Adjuster, Right Rear

$37.99

$

Usually ships in 2-12 days

0

19

Murray 672738MA

Guard, Rear

$32.99

$

Usually ships in 2-12 days

0

20

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push-On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

$3.99

$

Usually ships in 2-12 days

0

$49.99

$

Usually ships in 2-12 days

0

26

Murray 672422 Z

Plate, Mulcher

$

$

Currently unavailable

27

Murray 1101305E245MA

Bracket, Left Handle
(Superseded to 1101305E701MA)

$

$

Not available

28

Murray 001X85MA

Bolt, Hex

$3.99

$

Usually ships in 2-12 days

0

29

Murray 1101304E245MA

Bracket, Right Handle
(Superseded to 1101304E701MA)

$

$

Not available

$

$

Currently unavailable

31

$4.99

$

In Stock, only 1 left!

0

32

$5.49

$

In Stock, Qty 11

0

33

Murray 672449MA

Knob, Axle

$5.99

$

Usually ships in 2-12 days

0

34

Murray 0020X3MA

Washer, Spring

$4.49

$

Usually ships in 2-12 days

0

--

Murray 48X7330

Decal - Warning, Mulch Cover

$

$

Currently unavailable

--

Murray 48X670

Decal, 2n1 -Mulch/Discharge

$9.99

$

Usually ships in 2-12 days

0

--

Murray 48X405MA

Decal, OPPI -98

$56.99

$

Usually ships in 2-12 days

0

--

Murray 44X6458

Decal, Cut Finger

$10.99

$

Usually ships in 2-12 days

0

--

Murray 48X5015

Decal, MURRAY 22/4.5 QTM

$

$

Currently unavailable

--

Murray F-030417C

Book, Instruction

$

$

Currently unavailable
