22510 - Toro Walk-Behind Mower (SN: 008000001 - 008999999) (1988) CARBURETOR ASSEMBLY MODEL NO. VMH7 Parts Diagram

Walk-Behind Mower

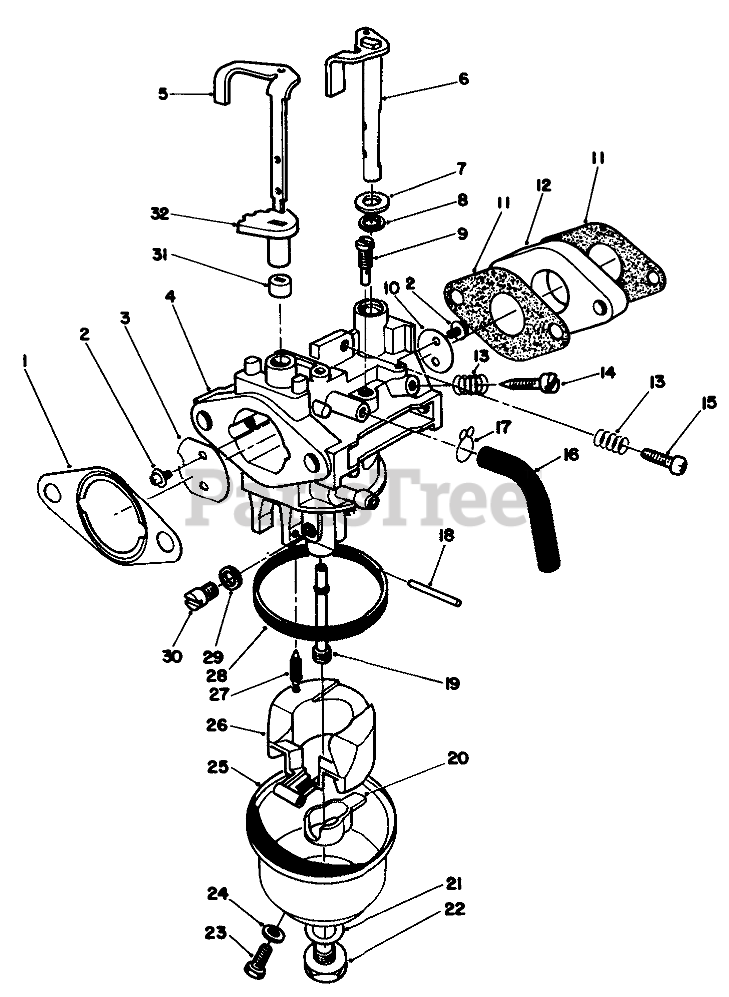

CARBURETOR ASSEMBLY MODEL NO. VMH7 Parts Diagram

  • Title
1

Toro 81-4250

GASKET F/W ENGINE

$12.99

$

Usually ships in 3-6 days

0

2

Toro 81-2710

Screw
(Superseded to 81-2160)

$4.99

$

Usually ships in 3-6 days

0

3

Toro 81-2720

VALVE

$

$

Not available

4

Body-Carburetor

$

$

Not available

5

Toro 81-5500

Shaft-Choke Valve

$

$

Currently unavailable

6

Toro 81-2920

SHAFT

$

$

Not available

7

Toro 81-4280

WASHER

$

$

Not available

8

Toro 81-4290

Seal-Throttle Shaft
(Superseded to 81-2530)

$8.99

$

Usually ships in 3-6 days

0

9

Toro 81-1030

PILOT JET

$33.99

$

Usually ships in 3-6 days

0

10

Toro 81-2940

VALVE

$

$

Not available

11

Toro 81-2570

Gasket-Carburetor
(Superseded to 81-0780)

$6.99

$

In Stock, Qty 12

0

12

Toro 81-4460

SPRING

$14.99

$

Usually ships in 3-6 days

0

13

Toro 81-2580

SPRING-PILOT SCREW

$

$

Not available

14

Toro 50-2360

ADJUSTER

$20.99

$

Usually ships in 3-6 days

0

15

Toro 50-0250

SCREW

$

$

Not available

16

$

$

Not available

17

Toro 81-4300

CLAMP

$

$

Not available

18

Toro 81-0980

Pin
(Superseded to 81-2600)

$8.49

$

Usually ships in 3-6 days

0

19

Toro 81-4330

NOZZLE

$

$

Not available

20

Toro 81-4940

SPACER

$

$

Not available

21

Toro 81-2650

GASKET

$6.99

$

Usually ships in 3-6 days

0

22

Toro 81-2660

SCREW

$29.99

$

In Stock, only 2 left!

0

23

Toro 81-2670

SCREW

$11.99

$

Usually ships in 3-6 days

0

24

Toro 81-2680

GASKET

$6.49

$

In Stock, only 3 left!

0

25

$125.99

$

In Stock, only 1 left!

0

26

Toro 81-4920

FLOAT

$54.99

$

Usually ships in 3-6 days

0

27

Toro 81-4700

NEEDLE
(Superseded to 81-5820)

$45.99

$

In Stock, only 2 left!

0

28

Toro 81-2630

FLOAT BOWL GASKET

$12.99

$

Usually ships in 3-6 days

0

29

Toro 81-4350

SPACER

$

$

Not available

30

Toro 50-4760

MAIN JET

$27.99

$

Usually ships in 3-6 days

0

31

Toro 81-5530

LOWER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

32

Toro 81-5520

UPPER CHOKE RING

$15.99

$

Usually ships in 3-6 days

0

Toro 81-4270

Shaft Choke Assembly (Incl. Reg. #5 & 31-32)

$

$

Not available

Toro 81-1040

MAIN JET

$29.99

$

Usually ships in 3-6 days

0

Toro 81-4890

Carburetor Kit (Incl. Ref. #1, 12, 21, 24, 27, & 28)

$138.99

$

Usually ships in 3-6 days

0

Toro 81-4750

Carburetor Assembly (Incl. Ref. #2-30)

$687.99

$

Usually ships in 3-6 days

0
