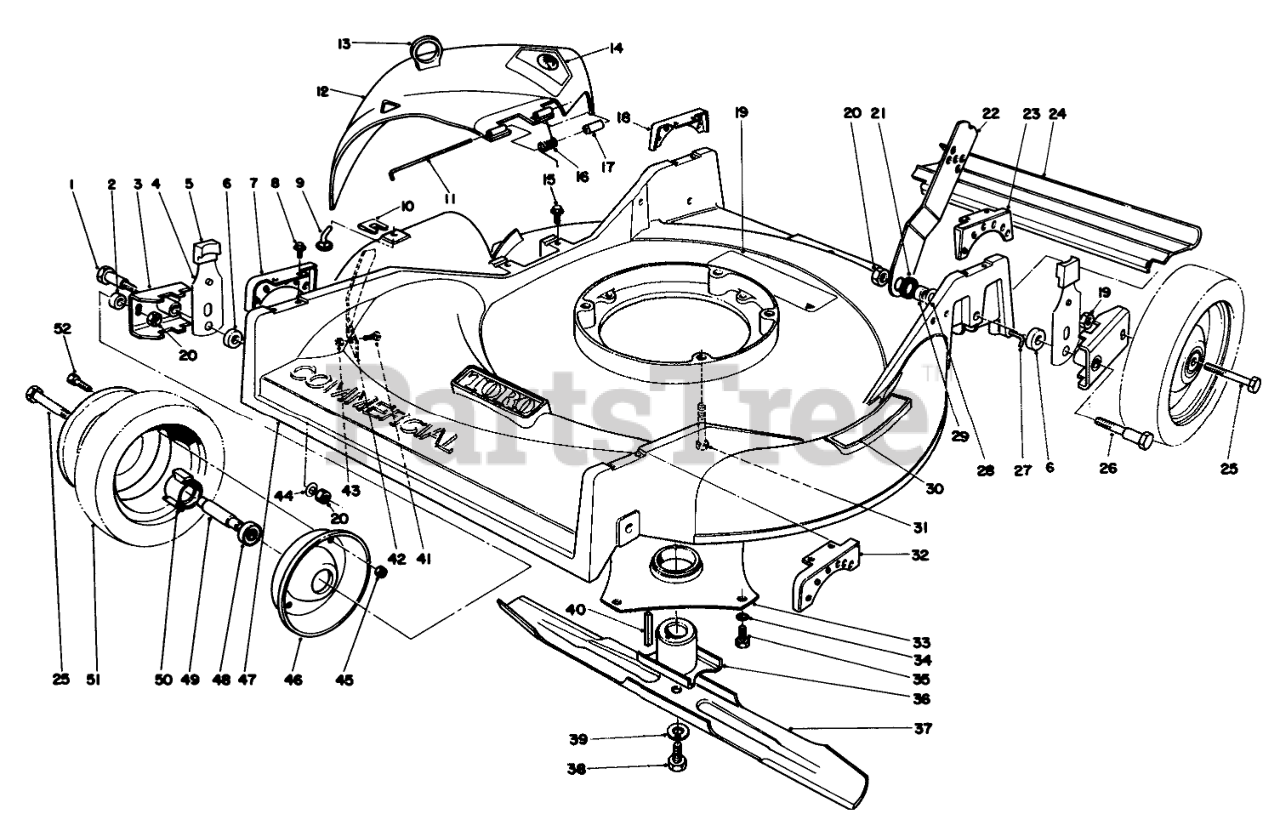

22510 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) HOUSING ASSEMBLY Parts Diagram

Walk-Behind Mower

HOUSING ASSEMBLY Parts Diagram

  • Title

1

Toro 49-9180

PIVOT SCREW

$

$

Not available

2

Toro 52-2480

SPACER-WHEEL

$6.49

$

In Stock, Qty 12

0

3

Toro 49-9160

PIVOT ARM

$74.99

$

Usually ships in 3-6 days

0

4

Toro 49-8800

SPRING ARM ASM-FRONT

$46.99

$

Usually ships in 3-6 days

0

5

Toro 25-7740

KNOB-ARM

$4.99

$

In Stock, Qty 20+

0

6

Toro 53-7930

SPACER-PIVOT

$10.99

$

Usually ships in 3-6 days

0

7

Toro 52-2510

FRT RIGHT QUAD

$

$

Not available

8

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

9

Toro 28-3260

BAG CHUTE PIN

$

$

Not available

10

Toro 28-3250

BAG CHUTE CLIP PIN

$

$

Not available

11

Toro 52-2570

DEFLECTOR HINGE PIN

$

$

Not available

12

Toro 12-4739

Deflector (Incl. Ref. #14)

$86.99

$

Usually ships in 3-6 days

0

13

Toro 28-1430

LIFT LOOP

$

$

Not available

14

Toro 39-5770

DECAL-DANGER

$8.99

$

In Stock, Qty 8

0

15

Toro 46-6811

SCREW-HWH

$3.49

$

In Stock, only 3 left!

0

16

Toro 52-2560

DEFLECTOR SPRING

$

$

Not available

17

Toro 28-3270

SLEEVE

$

$

Not available

18

Toro 52-2530

REAR RIGHT QUAD

$

$

Not available

19

Toro 29-4720

DECAL SAF INST

$

$

Not available

20

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

21

Toro 27-6510

HANDLE LATCH SPACER

$5.49

$

Usually ships in 3-6 days

0

22

Toro 27-7071

Latch-Handle
(Superseded to 100-3296-03)

$

$

Not available

23

Toro 52-2540

REAR LEFT QUAD

$

$

Not available

24

Toro 52-2640

SHIELD - TRAILING
(Superseded to 117-5298)

$

$

Not available

25

Toro 323-12

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

26

Toro 52-2260

REAR PIVOT SCREW

$25.99

$

Usually ships in 3-6 days

0

27

Toro 33-3201

SHIELD ROD

$

$

Not available

28

Toro 3290-340

WASHER-BELLEVILLE

$7.99

$

In Stock, Qty 10

0

29

Toro 52-2360

HANDLE LATCH SPACER

$

$

Not available

30

Toro 47-7370

Decal-Step Pad

$

$

Currently unavailable

31

Toro 11-0580

3/8-16 X 2-3/4 CAPSCR

$18.99

$

Usually ships in 3-6 days

0

32

Toro 52-2520

FRT LEFT QUAD

$

$

Not available

33

Toro 52-2500

CRNKSHFT PROTECT ASM

$121.99

$

Usually ships in 3-6 days

0

34

Toro 3254-6

WASHER-LOCK, INTERNAL

$0.99

$

Usually ships in 3-6 days

0

35

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 6

0

36

Toro 52-2170

RETAINER-BLADE
(Superseded to 52-2170-03)

$75.99

$

In Stock, only 1 left!

0

37

Toro 8-5230

Blade
(Superseded to 8-5230-03)

$38.99

$

Usually ships in 3-6 days

0

38

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

39

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

40

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

41

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 16

0

42

Toro 52-2650

Bar-Safety
(Superseded to 52-2650-01)

$

$

Not available

43

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Toro 3290-455

WASHER-BELLEVILLE

$4.49

$

Usually ships in 3-6 days

0

45

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

46

Toro 53-7780

Wheel-Half
(Superseded to 121-1365-06)

$19.99

$

In Stock, only 1 left!

0

47

Toro 12-4729

Housing (Incl. Ref. #19 & 30)

$

$

Not available

48

Toro 52-2450

BEARING-WHEEL

$18.99

$

In Stock, Qty 20+

0

49

Toro 52-2440

SPACER-BEARING

$9.49

$

In Stock, Qty 5

0

50

Toro 52-2410

HUB-BEARING

$33.99

$

In Stock, Qty 14

0

51

Toro 53-7740

TIRE

$34.99

$

In Stock, Qty 5

0

52

Toro 3234-26

SCREW-HHF

$3.49

$

In Stock, Qty 15

0

Toro 53-7760

Hub Assembly (Incl. Ref. #45, 46, 48-50 & 52)
(Superseded to 121-1380)

Note: Not illustrated

$101.99

$

In Stock, only 3 left!

0

Toro 53-7720

Wheel & Tire Assembly (Incl. Ref. #45, 46 & 48-52)
(Superseded to 121-1380)

Note: Not illustrated

$101.99

$

In Stock, only 3 left!

0
