22510 - Toro Walk-Behind Mower (SN: 007000001 - 007999999) (1987) GAS TANK ASSEMBLY Parts Diagram

Walk-Behind Mower

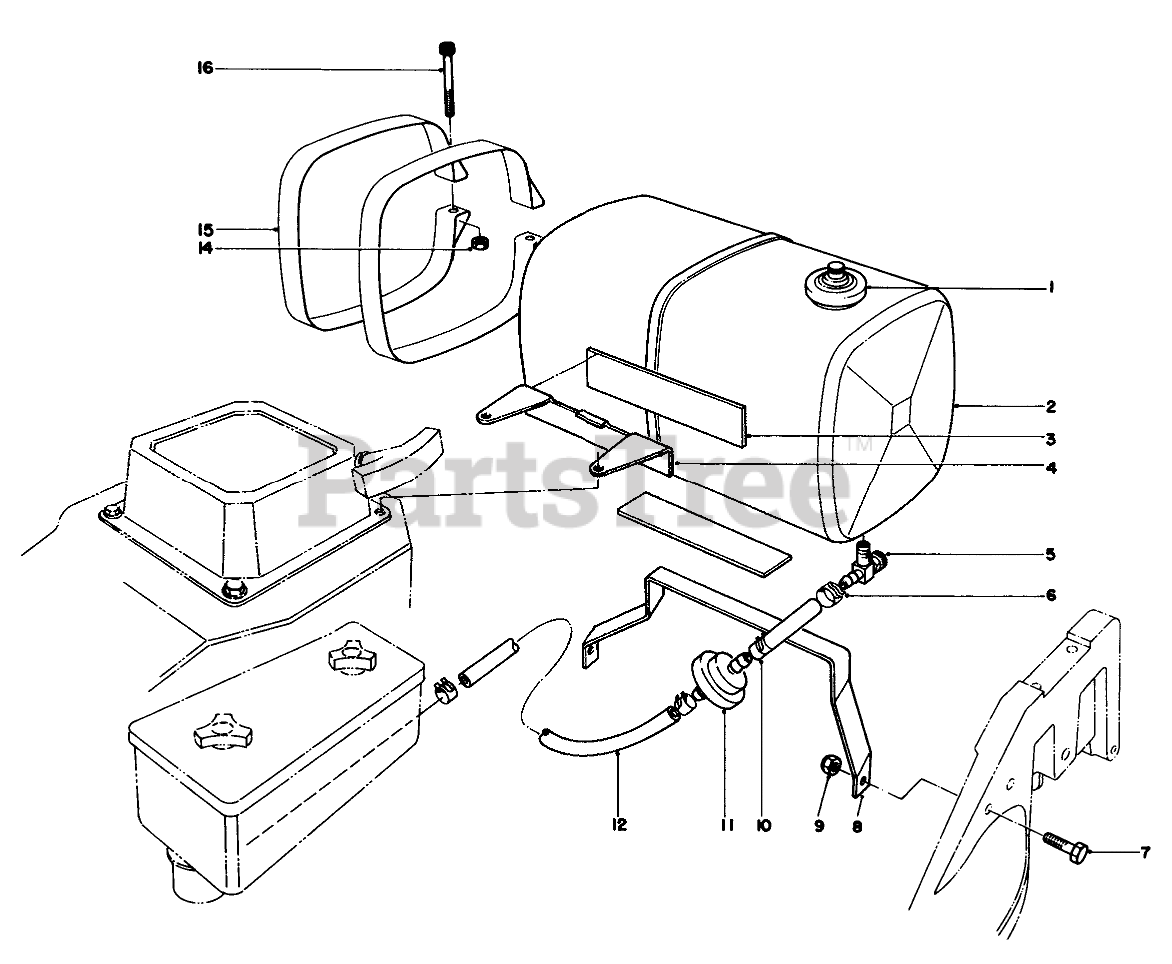

GAS TANK ASSEMBLY Parts Diagram

  • Title
1

Toro 55-4700

GAS CAP

$

$

Not available

2

Toro 52-2331

Gas Tank (Incl. Ref. #1)

$408.99

$

Usually ships in 3-6 days

0

3

Toro 52-2290

ISOLATOR PAD

$

$

Not available

4

Toro 61-8360

Mount-Tank Front

$

$

Not available

5

Toro 304-71

.125 ID SHUTOFF VALVE

$

$

Not available

6

Toro 2412-95

CLAMP-FUEL LINE

$1.99

$

In Stock, Qty 8

0

7

Toro 322-6

SCREW-HH

$4.49

$

In Stock, Qty 20+

0

8

Toro 61-8370

BOTTOM TANK SUPPORT

$

$

Not available

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 51-3211

LINE-GAS

$7.49

$

In Stock, only 3 left!

0

11

Toro 56-6360

FILTER-FUEL

$6.49

$

In Stock, Qty 20+

0

12

Toro 51-3217

HOSE-FUEL

$3.99

$

Usually ships in 3-6 days

0

14

Toro 3217-5

NUT-HEX

$0.99

$

In Stock, Qty 8

0

15

Toro 39-0570

TANK STRAP WA

$122.99

$

Usually ships in 3-6 days

0

16

Toro 3274-62

SCREW-HSH

$

$

Not available
