22508x6A - Murray Ultra 22" Walk-Behind Mower (1998) Mower Housing Assembly Parts Diagram

Ultra 22" Walk-Behind Mower

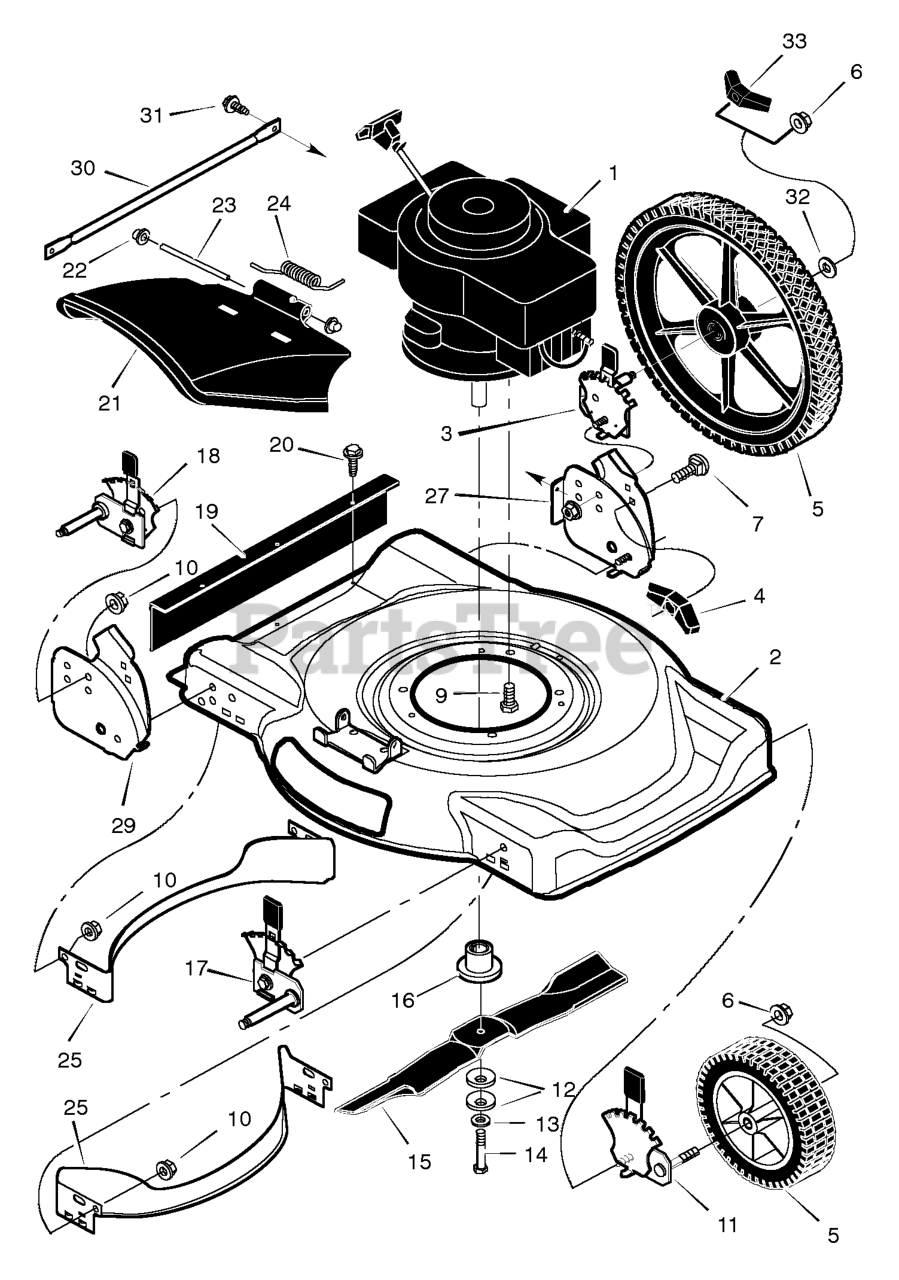

Mower Housing Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 776022MA

Housing

$

$

Not available

3

Murray 672645A

Height Adjuster, Left Rear

$

$

Currently unavailable

4

Murray 071495MA

Knob

$4.99

$

In Stock, only 3 left!

0

5

Wheel and Tire *

$

$

Not available

6

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

7

Murray 002X81MA

Bolt, Carriage

$3.49

$

Usually ships in 2-12 days

0

9

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

10

Murray 015X68MA

Nut
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

11

Murray 672639A

Height Adjuster, Left Front

$

$

Currently unavailable

12

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

13

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

14

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, only 2 left!

0

15

Murray 042225E701MA

Blade

$28.99

$

Usually ships in 2-12 days

0

16

Murray 071056MA

Adapter, Blade

$10.99

$

Usually ships in 2-12 days

0

17

Murray 672638A

Height Adjuster, Right Front

$

$

Currently unavailable

18

Murray 672644A

Height Adjuster, Right Rear

$

$

Currently unavailable

19

Murray 672500

Guard, Rear

$

$

Currently unavailable

20

Murray 26X245MA

Screw

$4.49

$

In Stock, Qty 6

0

21

Murray 672421MA

Deflector, Chute

$38.99

$

Usually ships in 2-12 days

0

22

Murray 028X42MA

Push- On Cap

$3.99

$

Usually ships in 2-12 days

0

23

Murray 215X11 Z

Pin, Pivot

$

$

Currently unavailable

24

Murray 0166X5MA

Spring

$3.99

$

Usually ships in 2-12 days

0

25

Murray 672332E701

Baffle

$

$

Currently unavailable

27

Murray 672349E701

Bracket, Left Handle

$

$

Currently unavailable

29

Murray 672348E701MA

Bracket, Right Handle

$21.99

$

Usually ships in 2-12 days

0

30

Murray 672504E701

Brace

$

$

Currently unavailable

31

Murray 26X263MA

Screw

$4.99

$

In Stock, only 1 left!

0

32

Murray 017X67 Z

Washer

$

$

Currently unavailable

33

Murray 672449MA

Knob, Axle

$5.99

$

Usually ships in 2-12 days

0

--

Murray F-98542

Book, Instruction

$

$

Currently unavailable
