2250 (2450, 2550) - Poulan Woodmaster Chainsaw, Type 6 (2008-03) Starter - Type 6 Parts Diagram

Woodmaster Chainsaw, Type 6

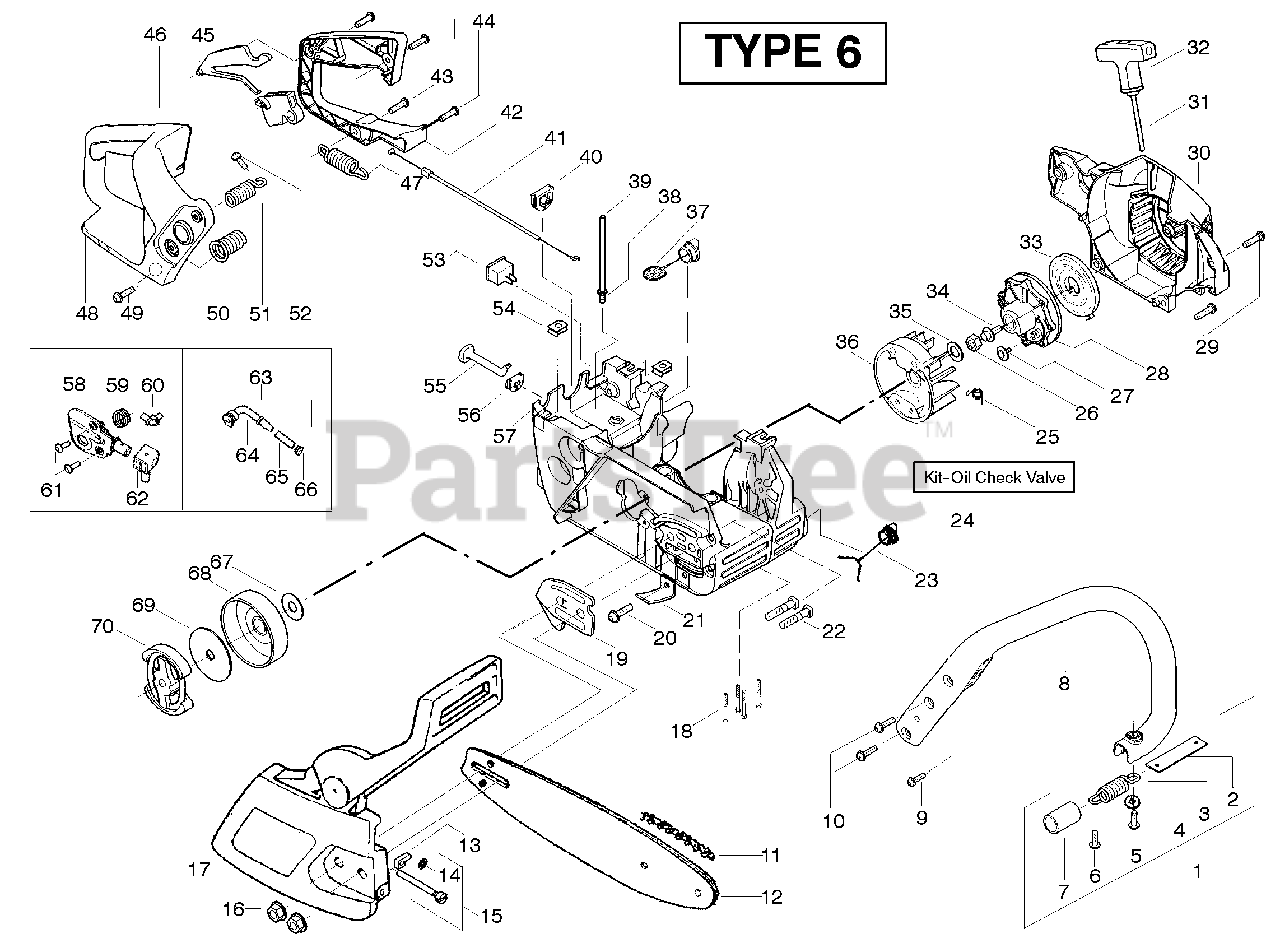

Starter - Type 6 Parts Diagram

  • Title

1

Electrolux/AYP 530047963

Assy.- Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

2

Electrolux/AYP 530047608

Limiter Strap
(Superseded to 530037009)

$

$

Not available

3

Electrolux/AYP 530042082

Spring- Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

4

Electrolux/AYP 530015123

Washer

$4.99

$

In Stock, only 4 left!

0

5

Electrolux/AYP 530016018

Screw

$

$

Not available

6

Electrolux/AYP 530015843

Screw

$6.49

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 530036142

Sleeve-AV Spring

$

$

Not available

8

Electrolux/AYP 530047583

Front Handle
(Superseded to 545048001)

$

$

Not available

9

Electrolux/AYP 530015940

Screw

$6.49

$

In Stock, Qty 8

0

10

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

11

Electrolux/AYP 952051338

Chain-18"
(Superseded to 581562301)

$22.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 952044418

Bar-18"

$

$

Not available

13

Electrolux/AYP 530015826

Pin-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 530038593

Retainer-Bar Adjust

$4.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 530069611

Kit-Bar Adj.

Note: (Incl.13,14)

$9.49

$

In Stock, Qty 13

0

16

Electrolux/AYP 530015917

Nut-Bar Mounting

$3.99

$

In Stock, Qty 12

0

17

Electrolux/AYP 530054735

Kit-Chain Brake
(Superseded to 545139906)

$

$

Not available

18

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

19

Electrolux/AYP 530038238

Plate-Bar Mounting

$

$

Not available

20

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

21

Electrolux/AYP 530029850

Chain Catcher

$6.49

$

In Stock, only 3 left!

0

22

Electrolux/AYP 530016133

Bolt-Bar

$6.49

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530010846

Oil Cap Ass’y.
(Superseded to 530057236)

$

$

Not available

24

Electrolux/AYP 530071666

Kit-Oil Check Valve

$

$

Not available

25

Electrolux/AYP 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

26

Electrolux/AYP 530016134

Nut- Flywheel

$6.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 530016080

Screw

$6.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 530037817

Starter Pulley
(Superseded to 545034301)

$

$

Not available

29

Electrolux/AYP 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

30

Electrolux/AYP 530049334

Fan Housing

$

$

Not available

31

Electrolux/AYP 530069232

Kit - Rope

$7.49

$

In Stock, Qty 20+

0

32

Electrolux/AYP 530037485

Starter Handle
(Superseded to 530056402)

$6.49

$

In Stock, only 1 left!

0

33

Electrolux/AYP 530027531

Recoil Spring
(Superseded to 545008015)

$7.99

$

In Stock, Qty 16

0

34

Electrolux/AYP 530015920

Screw

$6.49

$

In Stock, Qty 7

0

35

Electrolux/AYP 530015127

Washer- Flywheel

$6.49

$

In Stock, only 2 left!

0

36

Electrolux/AYP 530039209

Assy- Flywheel
(Superseded to 530063575)

$

$

Not available

37

Electrolux/AYP 530047192

Fuel Cap Ass’y.
(Superseded to 580940901)

$7.99

$

In Stock, only 3 left!

0

38

Electrolux/AYP 530023877

Fitting- fuel line

$5.99

$

In Stock, Qty 18

0

39

Electrolux/AYP 530069216

Kit-Fuel line (large)

$11.99

$

In Stock, Qty 20+

0

40

Electrolux/AYP 530047631

Grommet-Cable

$2.49

$

In Stock, only 2 left!

0

41

Electrolux/AYP 530047602

Cable-Throttle

$

$

Not available

42

Electrolux/AYP 530047581

Cover-Rear Handle

$4.99

$

Usually ships in 3-10 days

0

43

Electrolux/AYP 530015886

Screw

$6.49

$

In Stock, only 3 left!

0

44

Electrolux/AYP 530015906

Screw

$6.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530036098

Throttle Lockout

$

$

Not available

46

Electrolux/AYP 530036097

Trigger-Throttle

$5.99

$

In Stock, only 3 left!

0

47

Electrolux/AYP 530042082

Spring- Isolator
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

48

Electrolux/AYP 530047582

Handle - Rear

$15.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

50

Electrolux/AYP 530053274

Assy. Isolator - lower
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

51

Electrolux/AYP 530071385

Kit- Isolator (Upper)
(Superseded to 545006036)

$13.99

$

In Stock, only 4 left!

0

52

Electrolux/AYP 530015875

Screw

$4.99

$

In Stock, only 3 left!

0

53

Electrolux/AYP 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

54

Electrolux/AYP 530015922

Nut- "U"-Type

$6.49

$

In Stock, Qty 5

0

55

Electrolux/AYP 530047605

Knob-Choke

$4.99

$

In Stock, Qty 7

0

56

Electrolux/AYP 530049005

Grommet-Knob

$

$

Not available

57

Electrolux/AYP 530047618

Assy-Chassis
(Superseded to 530056595)

Note: (Incl. 22,23,37 filter & fuel lines)

$

$

Not available

58

Electrolux/AYP 530071259

Kit - Oil Pump

Note: (Incl. 59,60,62)

$

$

Not available

59

Electrolux/AYP 530037820

Gear-Worm Spring

$6.49

$

In Stock, only 3 left!

0

60

Electrolux/AYP 530049477

Elbow-Oil Pickup

$4.99

$

In Stock, only 3 left!

0

61

Electrolux/AYP 530016064

Screw

$4.99

$

In Stock, only 2 left!

0

62

Electrolux/AYP 530019206

Seal Block

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 530047663

Assy-Oil Pick-up

Note: (Incl. 64-66)

$6.99

$

In Stock, Qty 5

0

64

Electrolux/AYP 530038373

Pick-up Oiler

$4.99

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 530037821

Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

66

Electrolux/AYP 530030189

Plug-Oil Filter
(Superseded to 530056533)

$6.49

$

In Stock, only 2 left!

0

67

Electrolux/AYP 530015907

Washer-Thrust

$

$

Not available

68

Electrolux/AYP 530047061

Assy.-Clutch Drum w/bearing

$17.99

$

In Stock, Qty 5

0

69

Electrolux/AYP 530015611

Washer-Clutch

$6.49

$

In Stock, only 1 left!

0

70

Electrolux/AYP 530014949

Assy. Clutch

$22.99

$

In Stock, only 1 left!

0
