2250 (2450, 2550) - Poulan Woodmaster Chainsaw, Type 3 (2008-03) Engine - Type 1-5 Parts Diagram

Woodmaster Chainsaw, Type 3

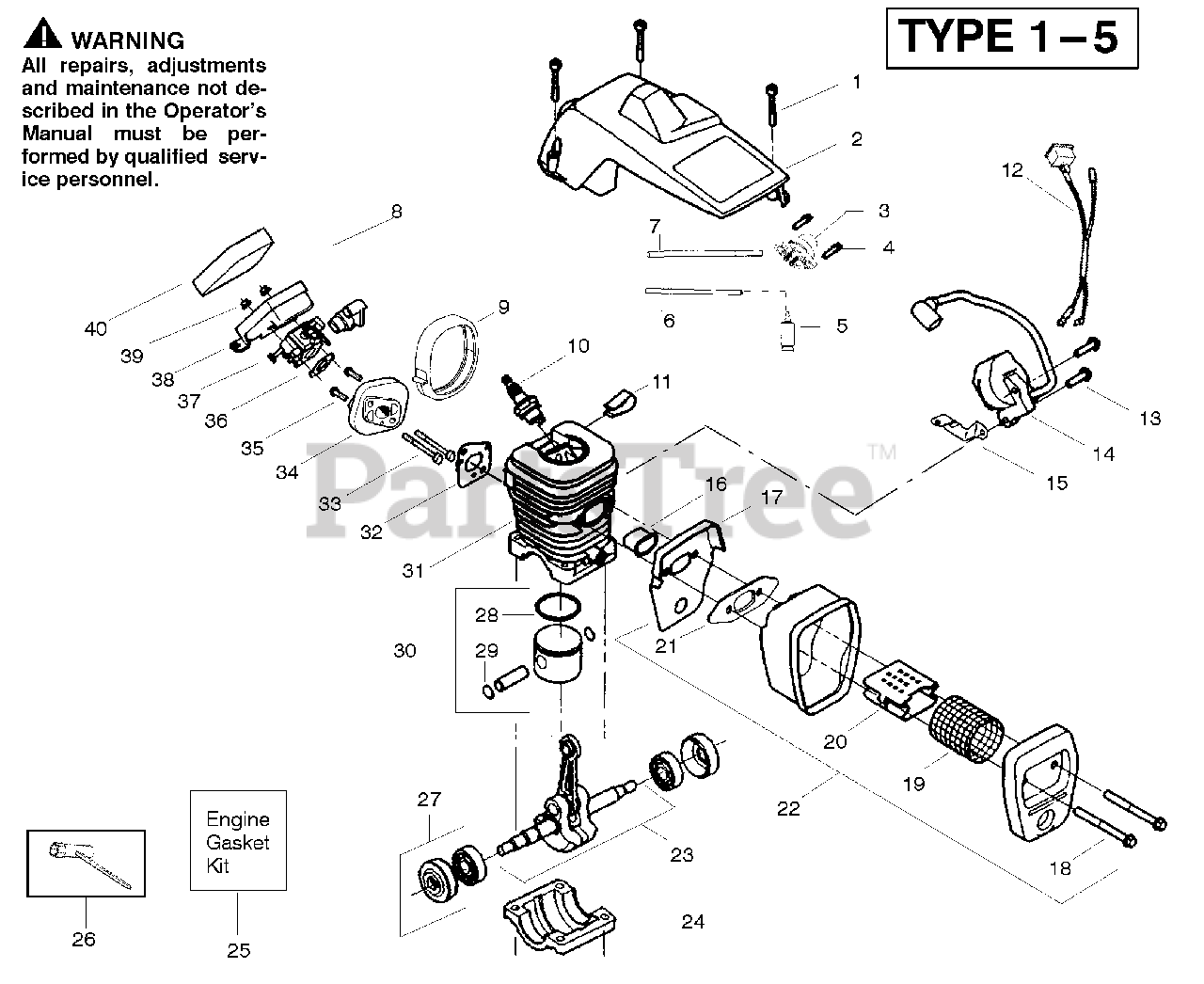

Engine - Type 1-5 Parts Diagram

  • Title

1

Electrolux/AYP 530016153

Screw

$6.49

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 530053183

Shield-Cylinder
(Superseded to 530071310)

$

$

Not available

3

Electrolux/AYP 530047213

Assy-Air Purge
(Superseded to 530071835)

$11.99

$

In Stock, Qty 9

0

4

Electrolux/AYP 530015780

Screw

$6.49

$

In Stock, only 2 left!

0

5

Electrolux/AYP 530095646

Assy-Fuel Pick-up

$6.99

$

In Stock, Qty 20+

0

6

Electrolux/AYP 530069247

Kit-Line Purge/Carb. (Small Dia)

$7.99

$

In Stock, Qty 20+

0

7

Electrolux/AYP 530069216

Kit-Line Purge/Tank (large line)

$11.99

$

In Stock, Qty 20+

0

8

Electrolux/AYP 530035526

Grommet-Carb Adjust.
(Superseded to 530049244)

$4.99

$

In Stock, only 3 left!

0

9

Seal-Carb Adapter

Note: (Refer to Service Reference)

$

$

Not available

10

Electrolux/AYP 952030150

Spark Plug (RCJ-7Y)

$3.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 530016136

Clip-High Tension Lead

$3.99

$

Usually ships in 3-10 days

0

12

Electrolux/AYP 530049117

Assy-Wire Harness

Note: (Includes switch)

$

$

Not available

13

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 16

0

14

Electrolux/AYP 530052277

Module-Ignition

$42.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 530047442

Strap-Ground

$3.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 530037652

Insulator-Heat

$

$

Not available

17

Electrolux/AYP 530049870

Back Plate-Muffler

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530016132

Screw

$6.49

$

In Stock, Qty 10

0

19

Electrolux/AYP 530036103

Screen-Spark

$

$

Not available

20

Electrolux/AYP 530037813

Diffuser-Muffler

$4.99

$

In Stock, only 1 left!

0

21

Electrolux/AYP 530069608

Gasket-Muffler

$8.99

$

In Stock, Qty 10

0

22

Electrolux/AYP 530047207

Assy-Muffler
(Superseded to 530071904)

Note: (Incl. 17-21)

$20.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 530038507

Assy-Crankshaft 2250
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

23

Electrolux/AYP 530047062

Assy-Crankshaft 2450/2550
(Superseded to 545113101)

$72.99

$

In Stock, only 1 left!

0

24

Electrolux/AYP 530037935

Cap-Crankcase

$10.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530069608

Kit-Engine Gasket

Note: (Incl. 36,32,21)

$8.99

$

In Stock, Qty 10

0

26

Electrolux/AYP 530031163

Scrench

$9.99

$

In Stock, Qty 12

0

27

Electrolux/AYP 530056363

Assy-Seal & Bearing

$18.99

$

In Stock, only 2 left!

0

28

Electrolux/AYP 530029805

Ring-Piston 2250

$6.49

$

In Stock, Qty 17

0

28

Electrolux/AYP 530038729

Ring-Piston 2450/2550
(Superseded to 545160401)

$6.49

$

In Stock, only 2 left!

0

29

Electrolux/AYP 530015697

Retainer-Piston Pin

$6.49

$

In Stock, Qty 6

0

30

Electrolux/AYP 530069604

Kit-Piston 2250

Note: (Incl. 28-29)

$

$

Not available

30

Electrolux/AYP 530069605

Kit-Piston 2450/2550
(Superseded to 530071408)

$

$

Not available

31

Electrolux/AYP 530071252

Kit-Cylinder 2250
(Superseded to 530071579)

$34.61

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 530069932

Kit-Cylinder 2450/2550

$40.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530069608

Gasket-Carb. Adapter

$8.99

$

In Stock, Qty 10

0

33

Electrolux/AYP 530016187

Screw

$6.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 530069964

Kit-Carb. Adapter
(Superseded to 530071310)

$

$

Not available

35

Electrolux/AYP 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 530069608

Carb. Gasket

$8.99

$

In Stock, Qty 10

0

37

Electrolux/AYP 530069722

Kit-Carburetor (WT-391)
(Superseded to 530071621)

$

$

Not available

37

Electrolux/AYP 530071621

Kit-Carburetor (WT-625)

$

$

Not available

38

Electrolux/AYP 530047604

Housing-Air Filter

$

$

Not available

39

Electrolux/AYP 530016101

Nut

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530037793

Air Filter-Foam

$4.99

$

In Stock, Qty 19

0

40

Electrolux/AYP 530087722

Operator Manual Type 1,2,3,4
(Superseded to 530163651)

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530163693

Operator Manual Type 5

Note: Not Shown

$6.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 530049246

Decal-Inst.
(Superseded to 530059301)

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0
