225 HBV - Husqvarna Handheld Blower (SN: 19963100001 - 19970500000) FAN Parts Diagram

Handheld Blower

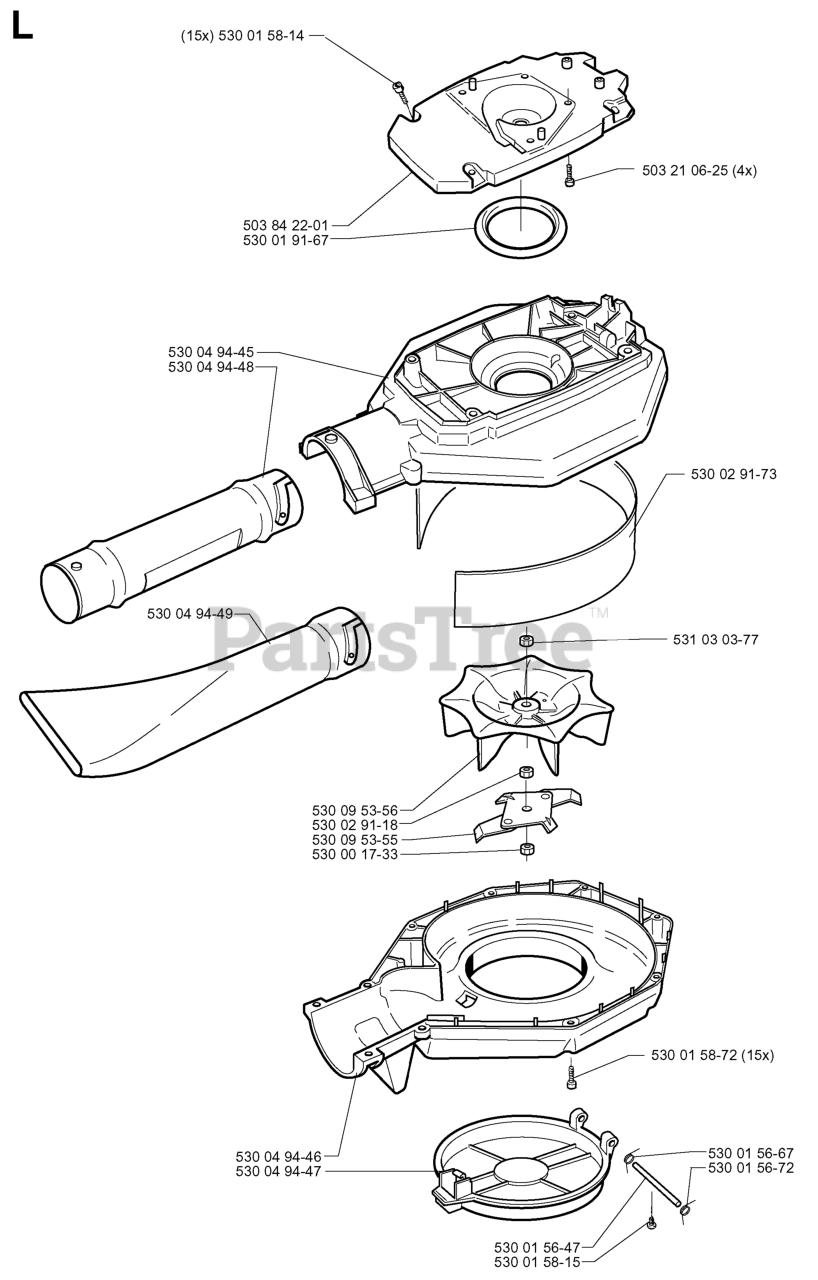

FAN Parts Diagram

  • Title

530 04 94-46

Husqvarna 530049446

LOWER HOUSING - GREY NLA
(Superseded to 530047736)

$

$

Not available

530 09 53-56

Husqvarna 530095356

IMPELLER
(Superseded to 530047702)

$

$

Not available

530 01 56-67

Husqvarna 530015667

SPRING-TORSION (RIGHT)

$3.99

$

Usually ships in 3-10 days

0

530 01 56-72

Husqvarna 530015672

SPRING-TORSION (LEFT)

$

$

Not available

530 02 91-73

Husqvarna 530029173

BAND-BLOWER HSG

$6.49

$

Usually ships in 3-10 days

0

530 04 94-48

Husqvarna 530049448

BLOWER TUBE

$9.99

$

Usually ships in 3-10 days

0

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

Note: 4X

$4.99

$

In Stock, Qty 8

0

530 04 94-49

Husqvarna 530049449

BLOWER NOZZLE

$

$

Not available

530 04 94-45

Husqvarna 530049445

UPPER HOUSING

$6.49

$

Usually ships in 3-10 days

0

530 01 91-67

Husqvarna 530019167

O-RING SEAL

$

$

Not available

530 04 94-47

Husqvarna 530049447

INLET DOOR

$4.99

$

Usually ships in 3-10 days

0

530 01 58-72

Husqvarna 530015872

SCREW
(Superseded to 530015814)

Note: 15X

$6.49

$

In Stock, Qty 16

0

531 03 03-77

Husqvarna 531030377

SPACER

$

$

Not available

530 01 56-47

Husqvarna 530015647

PIN-PIVOT

$1.49

$

In Stock, only 1 left!

0

530 01 58-15

Husqvarna 530015815

SCREW-10-16X1/2 HI-LO(S

$3.99

$

In Stock, only 2 left!

0

530 09 53-55

Husqvarna 530095355

MULCH BLADE

$6.49

$

Usually ships in 3-10 days

0

530 01 58-14

Husqvarna 530015814

SCREW

Note: 15X

$6.49

$

In Stock, Qty 16

0

530 02 91-18

Husqvarna 530029118

HUB-IMPELLER
(Superseded to 530047077)

$

$

Not available

503 84 22-01

Husqvarna 503842201

FAN MOUNT

$

$

Not available

530 00 17-33

Husqvarna 530001733

NUT

$

$

Not available
