225 HBV - Husqvarna Handheld Blower (2000-01) Carburetor Parts Diagram

Handheld Blower

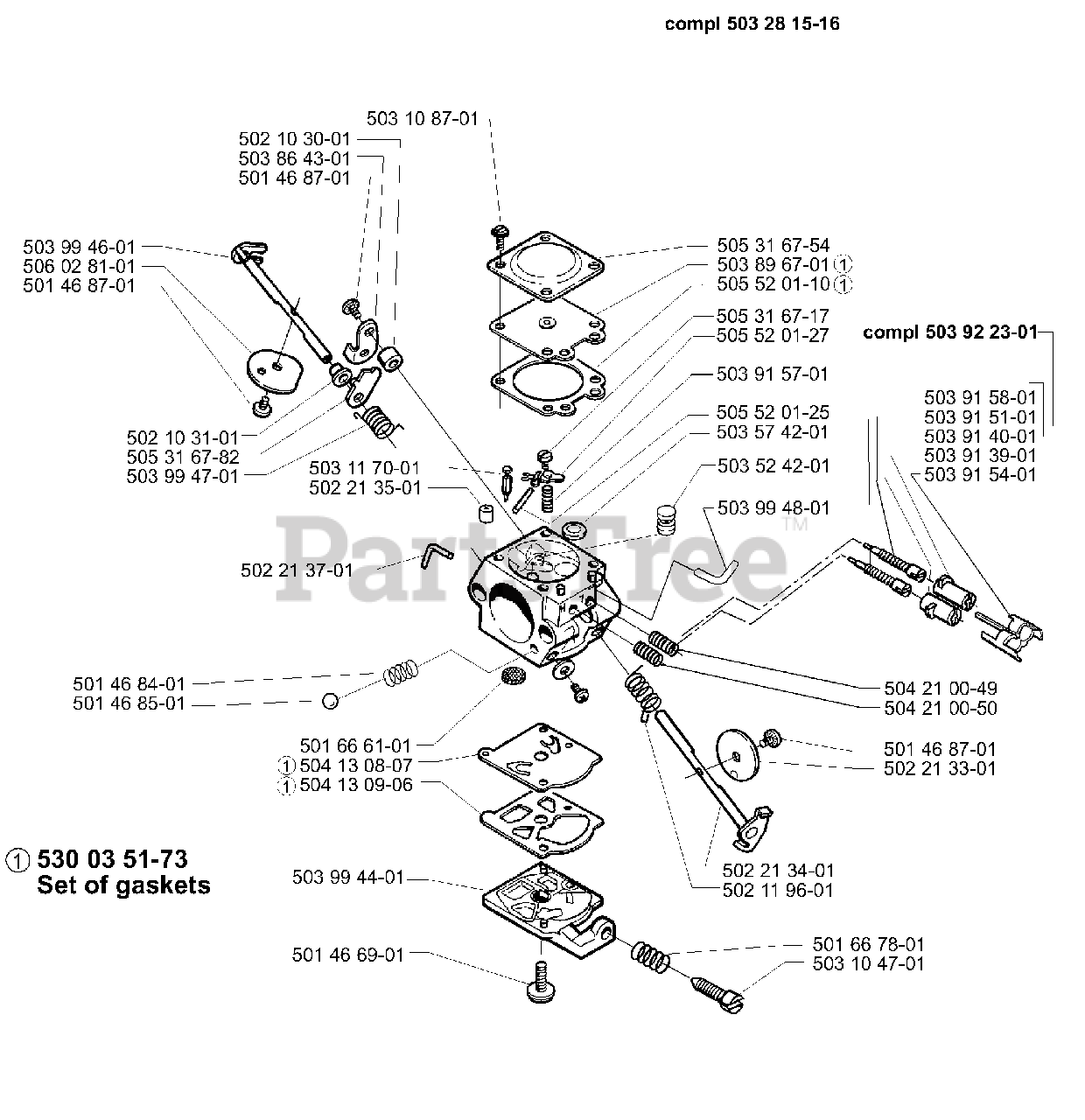

Carburetor Parts Diagram

  • Title
503281516

Husqvarna 503281516

CARBURETOR WT500 WALBRO

$

$

Not available

503108701

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

502103001

$13.99

$

Usually ships in 3-10 days

0

503864301

Husqvarna 503864301

THROTTLE LEVER

$

$

Not available

501468701

$7.99

$

Usually ships in 3-10 days

0

505316754

Husqvarna 505316754

DIAPHRAGM COVER

$4.99

$

Usually ships in 3-10 days

0

503896701

$51.99

$

In Stock, Qty 10

0

505520110

Husqvarna 505520110

GASKET, METERING SIDE

$

$

Not available

505316717

$7.99

$

In Stock, Qty 6

0

505520127

$5.99

$

Usually ships in 3-10 days

0

503915701

$

$

Not available

505520125

Husqvarna 505520125

FULCRUM PIN

$7.99

$

In Stock, only 3 left!

0

503574201

Husqvarna 503574201

WELCH PLUG

$7.99

$

In Stock, only 4 left!

0

503524201

$

$

Not available

503994801

$

$

Not available

503117001

Husqvarna 503117001

VALVE/INLET.

$22.99

$

In Stock, Qty 8

0

502213501

$

$

Not available

503922301

Husqvarna 503922301

LIMITER CAP & SCREW SET

$51.99

$

Usually ships in 3-10 days

0

503915801

$4.99

$

Usually ships in 3-10 days

0

503915101

Husqvarna 503915101

ADJUSTING SCREW

$9.49

$

In Stock, only 1 left!

0

503914001

Husqvarna 503914001

LIMITER CAP

$5.99

$

In Stock, only 1 left!

0

503913901

Husqvarna 503913901

LIMITER CAP

$

$

Not available

503915401

$9.49

$

Usually ships in 3-10 days

0

503994601

Husqvarna 503994601

CHOKE SHAFT

$

$

Not available

506028101

$

$

Not available

501468701

$7.99

$

Usually ships in 3-10 days

0

502103101

$11.99

$

Usually ships in 3-10 days

0

505316782

Husqvarna 505316782

STARTER LEVER

$2.49

$

Usually ships in 3-10 days

0

503994701

$

$

Not available

502213701

$7.49

$

Usually ships in 3-10 days

0

504210049

Husqvarna 504210049

SPRING, H-NEEDLE

$13.99

$

In Stock, only 4 left!

0

504210050

Husqvarna 504210050

SPRING/COMPRESSION
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

501468701

$7.99

$

Usually ships in 3-10 days

0

502213301

Husqvarna 502213301

THROTTLE FLAP

$

$

Not available

502213401

Husqvarna 502213401

SHAFT ASSY, THROTTLE

$

$

Not available

502119601

Husqvarna 502119601

SPRING, CARB. 40

$

$

Not available

501667801

Husqvarna 501667801

SPRING
(Superseded to 530035121)

$3.99

$

Usually ships in 3-10 days

0

503104701

$11.99

$

In Stock, only 1 left!

0

501466901

$9.49

$

In Stock, Qty 5

0

503994401

$

$

Not available

504130906

$11.99

$

In Stock, only 3 left!

0

504130807

Husqvarna 504130807

PUMP DIAPHRAGM

$31.99

$

In Stock, Qty 6

0

501666101

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

Usually ships in 3-10 days

0

501468501

$7.99

$

Usually ships in 3-10 days

0

501468401

$7.99

$

In Stock, only 1 left!

0

530035173

Husqvarna 530035173

GASKET SET (WT202)
(Superseded to 530069844)

$20.99

$

In Stock, only 3 left!

0
