225 H 75 - Husqvarna Hedge Trimmer (SN: 19980900001 - 20022200000) CUTTING EQUIPMENT Parts Diagram

Hedge Trimmer

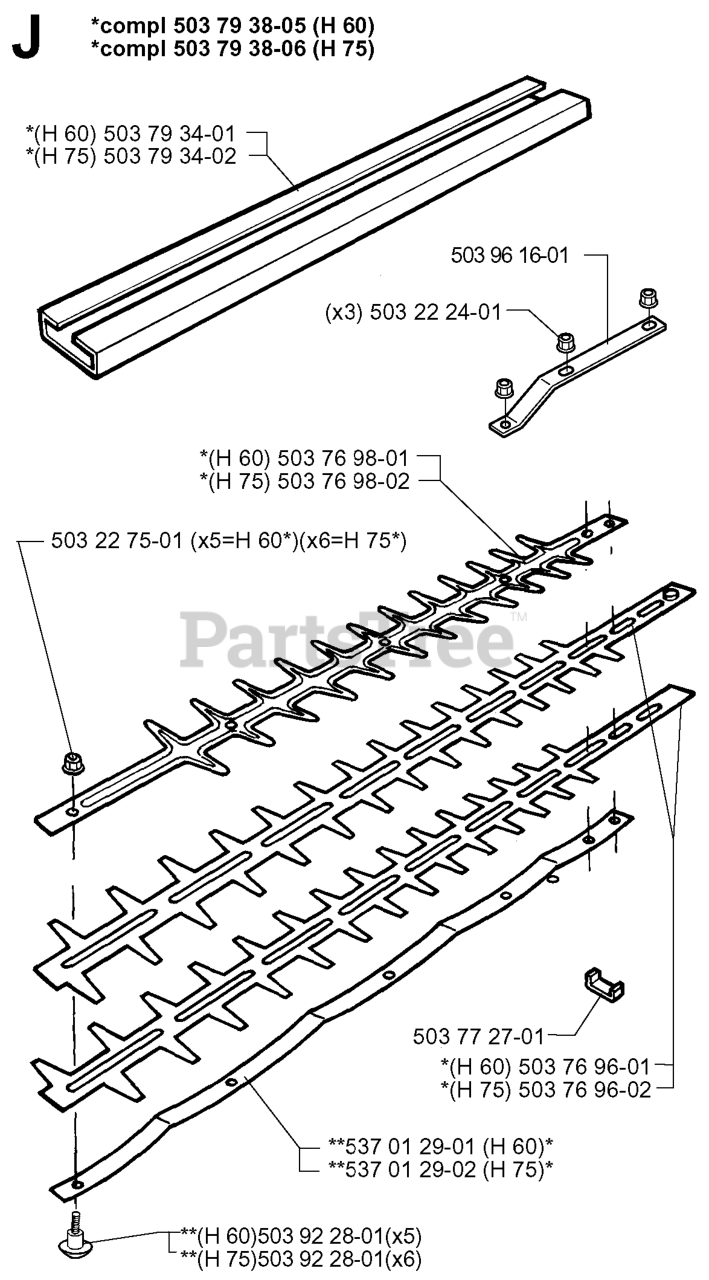

CUTTING EQUIPMENT Parts Diagram

  • Title

503 79 38-06

Husqvarna 503793806

CUTTER ASSEMBLY
(Superseded to 537029604)

Note: H 75

$

$

Not available

503 22 75-01

Husqvarna 503227501

NUT
(Superseded to 503220008)

Note: H 75

$5.99

$

In Stock, only 3 left!

0

503 76 98-02

Husqvarna 503769802

GUIDE BAR
(Superseded to 537029302)

Note: H 75

$

$

Not available

503 96 16-01

Husqvarna 503961601

BRACKET

$

$

Not available

503 76 96-02

Husqvarna 503769602

CUTTER BLADE
(Superseded to 537029504)

Note: H 75

$

$

Not available

537 01 29-01

Husqvarna 537012901

GUIDE/24"
(Superseded to 503850003)

Note: H 60

$

$

Not available

503 79 38-05

Husqvarna 503793805

CUTTER ASSY/60CM
(Superseded to 537029603)

Note: H 60

$

$

Not available

537 01 29-02

Husqvarna 537012902

GUIDE/30"
(Superseded to 503850004)

Note: H 75

$

$

Not available

503 92 28-01

Husqvarna 503922801

SHOULDER BOLT

Note: H 60

$

$

Not available

503 22 24-01

Husqvarna 503222401

NUT

$2.49

$

In Stock, Qty 14

0

503 76 96-01

Husqvarna 503769601

CUTTER BLADE
(Superseded to 537029503)

Note: H 60

$

$

Not available

503 92 28-01

Husqvarna 503922801

SHOULDER BOLT

Note: H 75

$

$

Not available

503 79 34-02

Husqvarna 503793402

BLADE PROTECTOR
(Superseded to 537110804)

Note: H 75

$34.99

$

Usually ships in 3-10 days

0

503 79 34-01

Husqvarna 503793401

BLADE PROTECTOR
(Superseded to 537110805)

Note: H 60

$26.99

$

Usually ships in 3-10 days

0

503 77 27-01

Husqvarna 503772701

BLOCK

$

$

Not available

503 22 75-01

Husqvarna 503227501

NUT
(Superseded to 503220008)

Note: H 60

$5.99

$

In Stock, only 3 left!

0

503 76 98-01

Husqvarna 503769801

GUIDE BAR
(Superseded to 537029301)

Note: H 60

$

$

Not available
