225 BV - Husqvarna Handheld Blower (SN: 19963100001 - 19970500000) CARBURETOR & AIR FILTER Parts Diagram

Handheld Blower

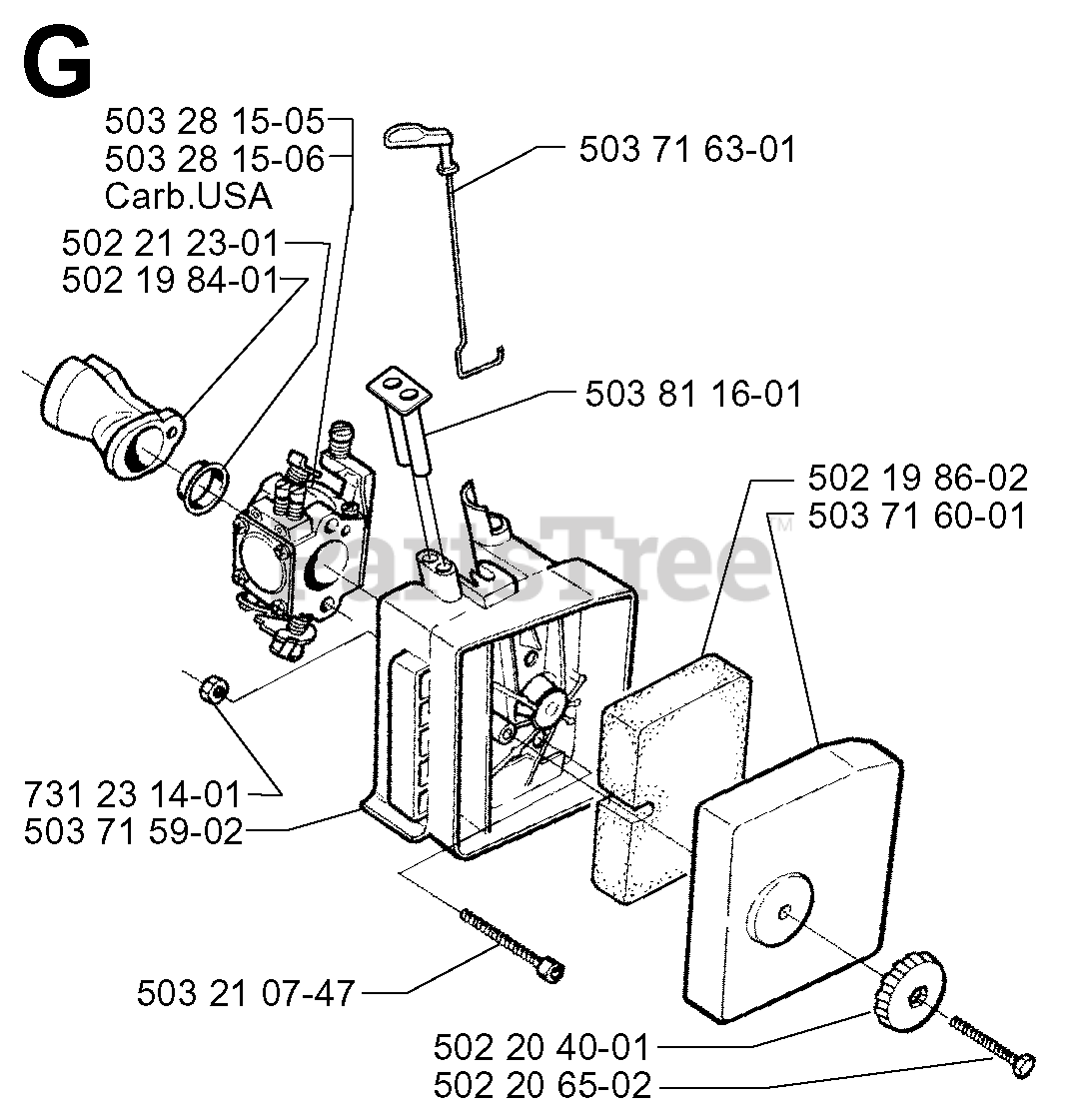

CARBURETOR & AIR FILTER Parts Diagram

  • Title

503 28 15-05

Husqvarna 503281505

CARBURETOR
(Superseded to 577133001)

$120.99

$

Usually ships in 3-10 days

0

503 28 15-06

Husqvarna 503281506

CARBURETOR
(Superseded to 577133001)

Note: CARB.USA

$120.99

$

Usually ships in 3-10 days

0

502 21 23-01

Husqvarna 502212301

GUIDE

$6.49

$

In Stock, only 1 left!

0

502 19 84-01

Husqvarna 502198401

INDUCTION PIPE

$34.99

$

In Stock, Qty 6

0

731 23 14-01

Husqvarna 731231401

NUT

$2.49

$

In Stock, only 1 left!

0

503 71 59-02

Husqvarna 503715902

HOLDER
(Superseded to 537024901)

$

$

Not available

503 21 07-47

Husqvarna 503210747

SCREW
(Superseded to 503210750)

$3.49

$

Usually ships in 3-10 days

0

502 20 40-01

Husqvarna 502204001

KNOB

$6.49

$

In Stock, Qty 14

0

502 20 65-02

Husqvarna 502206502

SCREW 28MM THREAD LENGTH

$6.99

$

In Stock, Qty 8

0

503 71 60-01

Husqvarna 503716001

AIR FILTER COVER

$

$

Not available

502 19 86-02

Husqvarna 502198602

AIR FILTER

$9.49

$

In Stock, Qty 6

0

503 81 16-01

Husqvarna 503811601

GUIDE SLEEVE

$

$

Not available

503 71 63-01

Husqvarna 503716301

CHOKE CONTROL

$9.49

$

In Stock, only 1 left!

0
