225 B - Husqvarna Handheld Blower (SN: 20012200001 - 20013100000) STARTER Parts Diagram

Handheld Blower

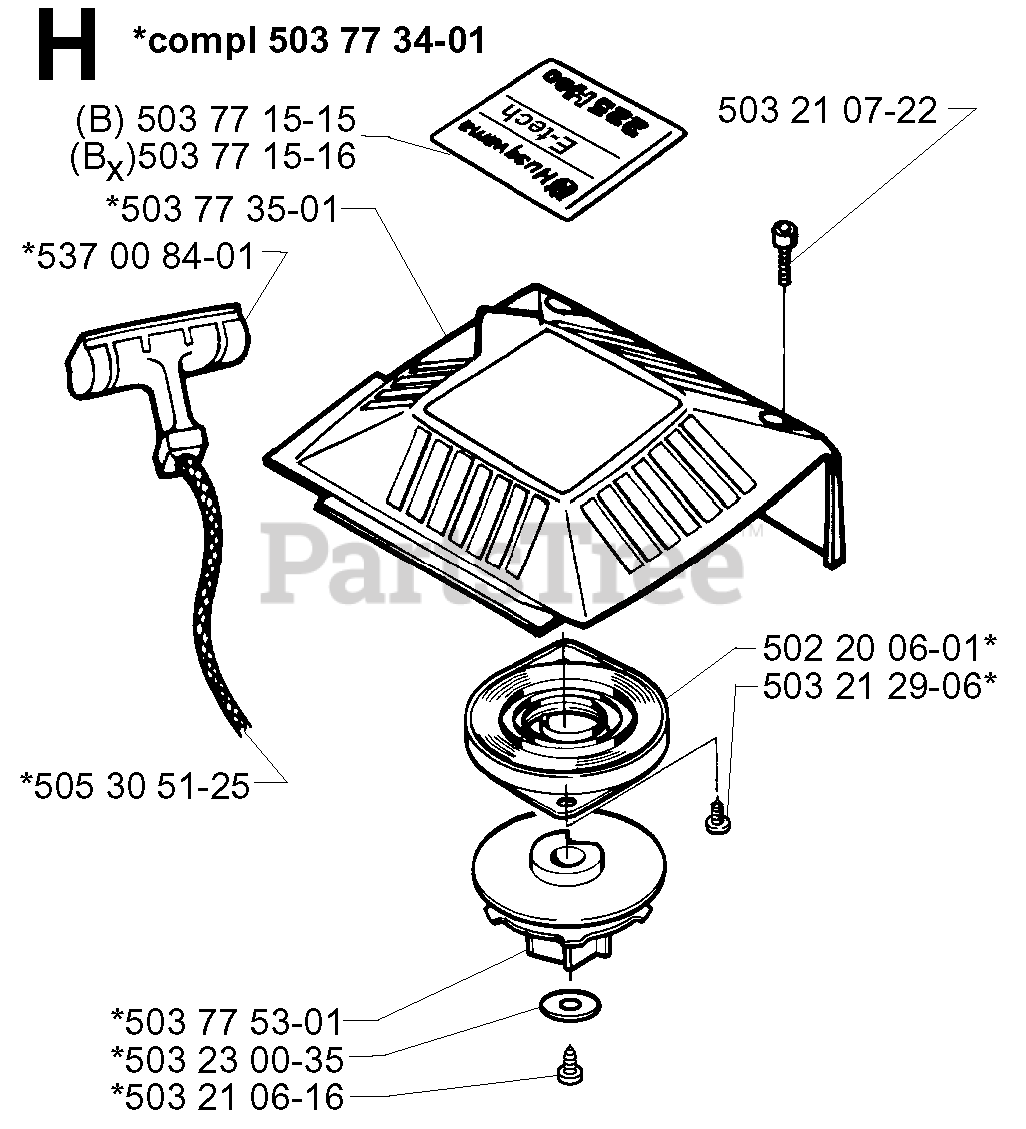

STARTER Parts Diagram

  • Title
503 77 15-16

Husqvarna 503771516

LABEL STARTER 225BX
(Superseded to 537353447)

Note: BX

$

$

Not available

503 77 15-15

Husqvarna 503771515

DECAL

Note: B

$

$

Not available

503 23 00-35

Husqvarna 503230035

WASHER 5.3X15

$7.49

$

In Stock, Qty 14

0

503 77 53-01

Husqvarna 503775301

STARTER PULLEY

$24.99

$

In Stock, only 2 left!

0

537 00 84-01

Husqvarna 537008401

STARTER HANDLE

$11.99

$

In Stock, only 2 left!

0

503 21 29-06

$4.99

$

In Stock, only 4 left!

0

503 77 34-01

Husqvarna 503773401

STARTER ASSEMBLY
(Superseded to 503773402)

$

$

Not available

503 21 06-16

Husqvarna 503210616

SCREW
(Superseded to 503214972)

$10.99

$

In Stock, Qty 20+

0

502 20 06-01

Husqvarna 502200601

RECOIL SPRING

$24.99

$

Usually ships in 3-10 days

0

505 30 51-25

Husqvarna 505305125

STARTER ROPE

$9.49

$

In Stock, only 2 left!

0

503 77 35-01

Husqvarna 503773501

STARTER HOUSING
(Superseded to 503773403)

$

$

Not available

503 21 07-22

Husqvarna 503210722

SCREW
(Superseded to 503216722)

$6.49

$

In Stock, Qty 9

0
