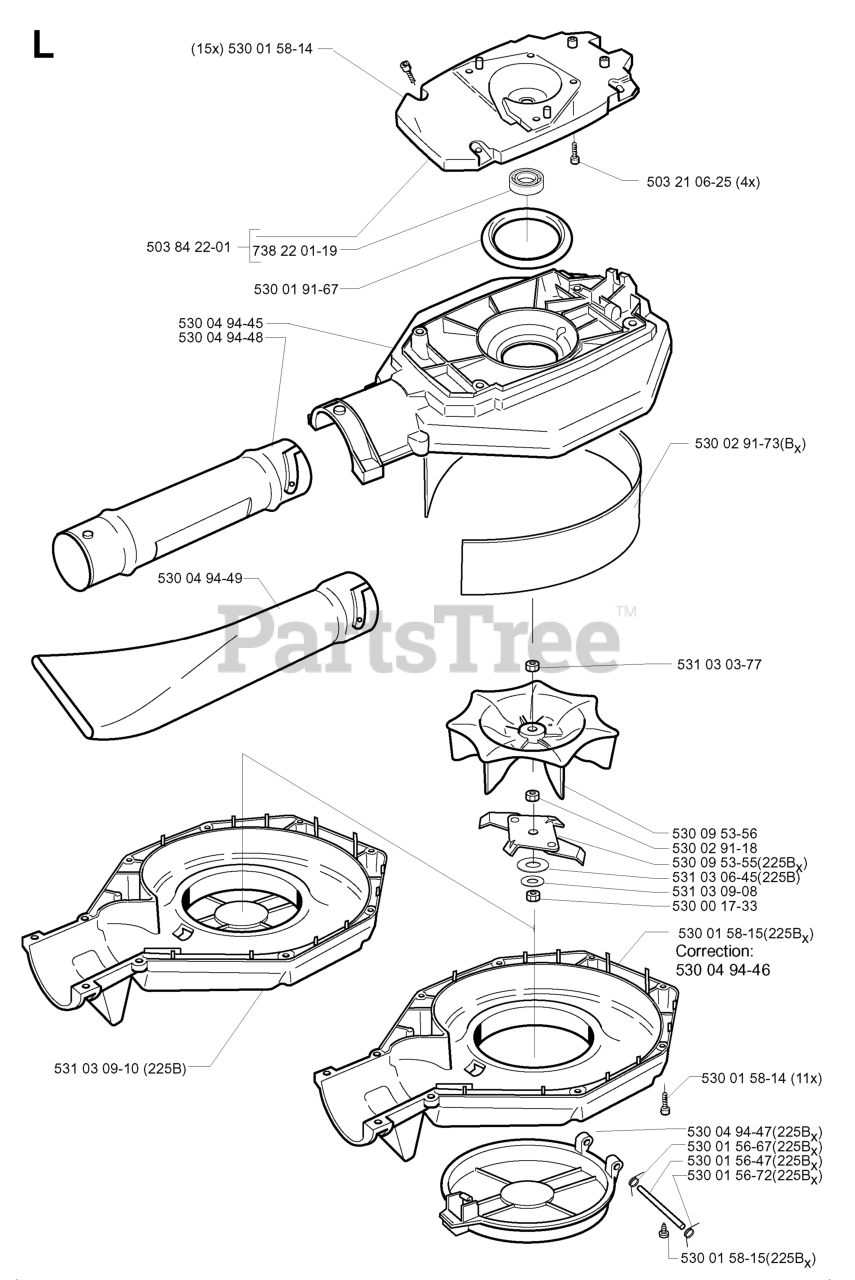

225 B - Husqvarna Handheld Blower (SN: 20012200001 - 20013100000) FAN 2 Parts Diagram

Handheld Blower

FAN 2 Parts Diagram

  • Title
530 00 17-33

$

$

Not available

531 03 09-08

Husqvarna 531030908

BELLEVILLE WASHER

$

$

Not available

530 01 58-14

Husqvarna 530015814

SCREW

Note: 11X

$6.49

$

In Stock, Qty 16

0

530 04 94-49

Husqvarna 530049449

BLOWER NOZZLE

$

$

Not available

530 01 56-72

Husqvarna 530015672

SPRING-TORSION (LEFT)

Note: 225BX

$

$

Not available

531 03 06-45

Husqvarna 531030645

FENDER WASHER

Note: 225B

$1.49

$

In Stock, Qty 5

0

503 84 22-01

$

$

Not available

503 21 06-25

Husqvarna 503210625

SCREW
(Superseded to 503214925)

Note: 4X

$4.99

$

In Stock, Qty 8

0

530 09 53-56

Husqvarna 530095356

IMPELLER
(Superseded to 530047702)

$

$

Not available

530 01 56-47

Husqvarna 530015647

PIN-PIVOT

Note: 225BX

$1.49

$

In Stock, only 1 left!

0

531 03 09-10

Husqvarna 531030910

LOWER BLOWER HOUSING KIT

Note: 225B

$

$

Not available

530 04 94-46

Husqvarna 530049446

LOWER HOUSING - GREY NLA
(Superseded to 530047736)

Note: CORRECTION

$

$

Not available

738 22 01-19

Husqvarna 738220119

BALL BEARING 6201-2RS1
(Superseded to 503252301)

$17.99

$

Usually ships in 3-10 days

0

531 03 03-77

$

$

Not available

530 01 58-15

Husqvarna 530015815

SCREW-10-16X1/2 HI-LO(S

Note: 225BX

$3.99

$

In Stock, only 2 left!

0

530 01 91-67

Husqvarna 530019167

O-RING SEAL

$

$

Not available

530 01 58-14

Husqvarna 530015814

SCREW

Note: 15X

$6.49

$

In Stock, Qty 16

0

530 04 94-45

Husqvarna 530049445

UPPER HOUSING

$6.49

$

Usually ships in 3-10 days

0

530 09 53-55

Husqvarna 530095355

MULCH BLADE

Note: 225BX

$6.49

$

Usually ships in 3-10 days

0

530 04 94-47

Husqvarna 530049447

INLET DOOR

Note: 225BX

$4.99

$

Usually ships in 3-10 days

0

530 04 94-48

Husqvarna 530049448

BLOWER TUBE

$9.99

$

Usually ships in 3-10 days

0

530 02 91-18

Husqvarna 530029118

HUB-IMPELLER
(Superseded to 530047077)

$

$

Not available

530 02 91-73

Husqvarna 530029173

BAND-BLOWER HSG

Note: BX

$6.49

$

Usually ships in 3-10 days

0

530 01 56-67

Husqvarna 530015667

SPRING-TORSION (RIGHT)

Note: 225BX

$3.99

$

Usually ships in 3-10 days

0
